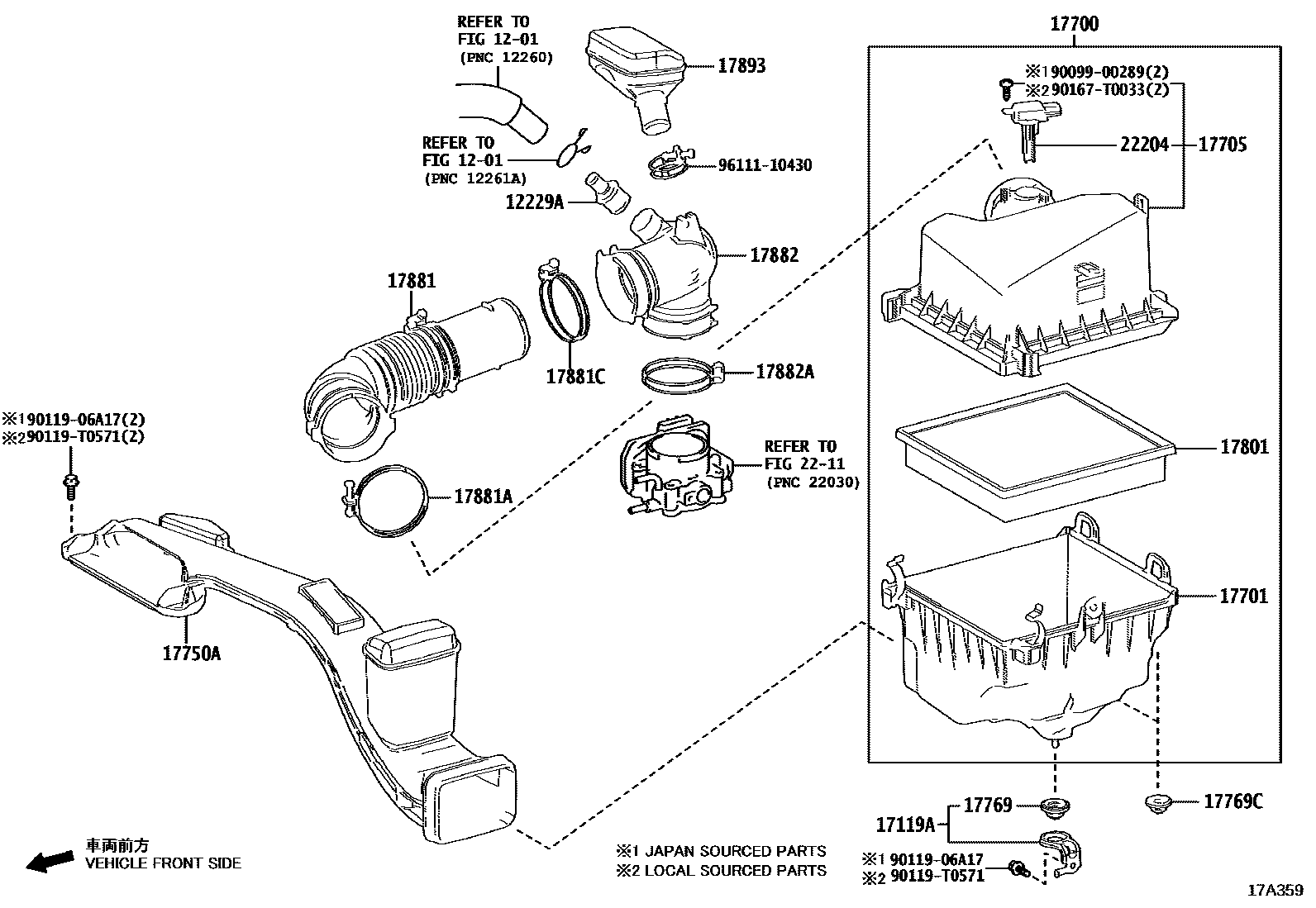

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

12229APIPE, VENTILATION

main12229-33010i2ARFE..ASV70201810-202110

17119ABRACKET, AIR CLEANER

main17119-F0040iA25AFXS,2ARFE,6AR#..ASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202112

17700CLEANER ASSY, AIR

main17700-25151iM20AFKS..MXVA71202111

main17700-F0030iA25AFKB,A25AFKS..AXVA70201810-202110

main17700-F0040i2ARFE..ASV70201810-202110

main17700-F0050iA25AFXS..AXVH71201810-202112

main17700-F0140i6AR#..ASV71201810-202110

17701CASE SUB-ASSY, AIR CLEANER

main17701-25101iM20AFKS..MXVA71202111

main17701-F0050iA25AFKB,A25AFKS,2ARFE,6AR#..ASV7#,AXVA70201810-202110

main17701-F0060iA25AFXS..AXVH71..IDN201810-202112

17705CAP SUB-ASSY, AIR CLEANER

main17705-25050iM20AFKS..MXVA71202111

main17705-F0060iA25AFKB,A25AFKS..AXVA70201810-202110

main17705-F0070i2ARFE..ASV70201810-202110

main17705-F0080iA25AFXS..AXVH71201810-202112

main17705-F0140i6AR#..ASV71201810-202110

17750AINLET ASSY, AIR CLEANER

main17750-0V180i2ARFE,6AR#..ASV7#201810-202110

main17750-24020iM20AFKS..MXVA71202111

main17750-25010iA25AFKB,A25AFKS..AXVA70201810-202110

main17750-F0040iA25AFXS..AXVH71201810-202112

17769SUPPORT, AIR CLEANER

main17769-25020iM20AFKS..MXVA71201810-202112

NO.1:REFER ILLUST.

main17769-25030iA25AFXS..AXVH71201810-202112

NO.2:REFER ILLUST.

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iA25AFKB,A25AFKS,2ARFE,6AR#..ASV7#,AXVA70201810-202110

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKB,A25AFKS..AXVA70201810-202110

main17801-F0030iA25AFXS..AXVH71201810-202112

17881HOSE, AIR CLEANER, NO.1

main17881-0V300i2ARFE..ASV70201810-202110

main17881-0V310i6AR#..ASV71201810-202110

main17881-25020iA25AFKB,A25AFKS..AXVA70201810-202110

main17881-F0040iA25AFXS..AXVH71..IDN201810-202112

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

main96111-10880iA25AFKB,A25AFKS..AXVA70201810-202110

main96111-20800iM20AFKS..MXVA71202111

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i6AR#..ASV71201810-202110

main96111-10850i2ARFE..ASV70201810-202110

17882HOSE, AIR CLEANER, NO.2

main17882-0V050i2ARFE..ASV70201810-202110

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AXVH71..IDN201810-202112

main90466-71001iA25AFKB,A25AFKS..AXVA70201810-202110

main96111-10730i6AR#..ASV71201810-202110

main96111-10830i2ARFE..ASV70201810-202110

main96111-10880iM20AFKS..MXVA71202111

17893RESONATOR, INTAKE AIR

main17893-0V230i2ARFE..ASV70201810-202110

main17893-0V270i6AR#..ASV71201810-202110

main17893-25040iA25AFKB,A25AFKS..AXVA70201810-202110

main17893-F0060iA25AFXS..AXVH71..IDN201810-202112

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V020i2ARFE..ASV70201810-202110

main22204-75040iA25AFXS,6AR#..ASV71,AXVH71..(20,20G,HBD)..(IDN,MA,TH,VN)201810-202112

9009900289

main90099-00289

9011906A17

main90119-06A17

90119T0571

main90119-T0571

90167T0033

main90167-T0033

9611110430

main96111-10430

23 parts on this diagram · 5 diagrams in section
