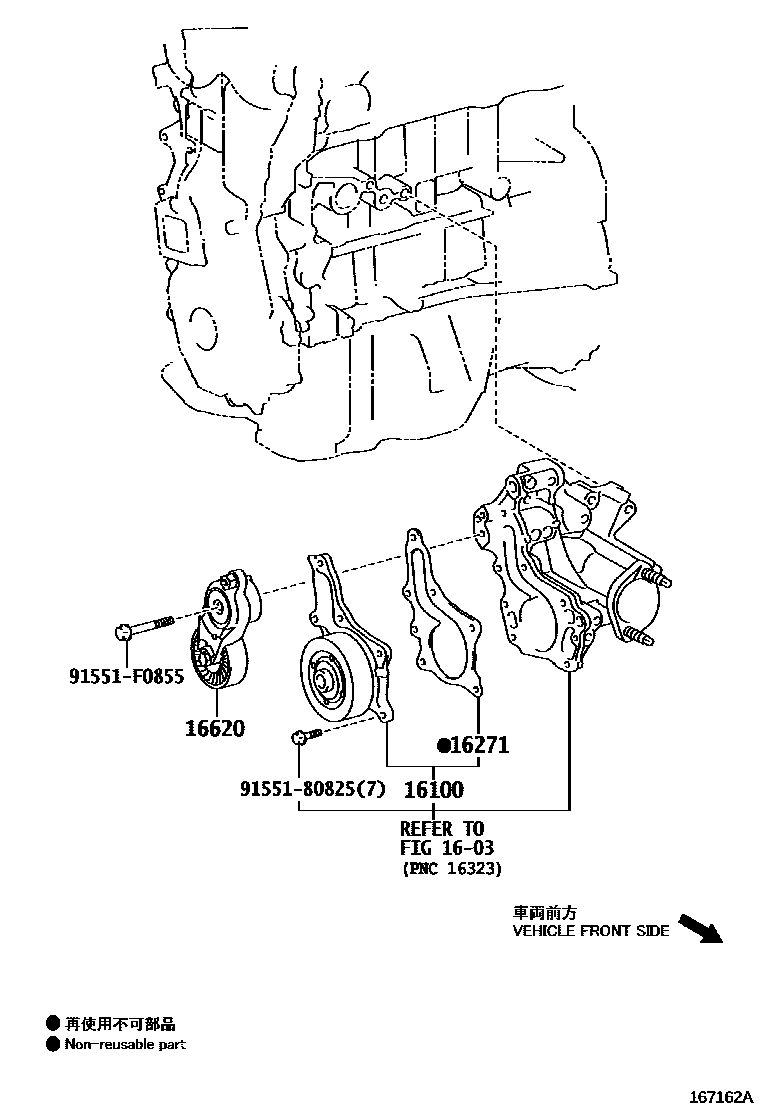

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09700i6AR#..ASV71201810-202110

main16100-39515i2ARFE..ASV70201810-202107

sub16100-39516

main16100-39516i2ARFE..ASV70202107-202110

16271GASKET, WATER PUMP

main16271-0V010i6AR#..ASV71201810-202110

main16271-36010i2ARFE..ASV70201810-202110

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V051i6AR#..ASV71201810-202110

main16620-36013i2ARFE..ASV70201810-202110

9155180825

main91551-80825

91551F0855

main91551-F0855

6 parts on this diagram · 2 diagrams in section
