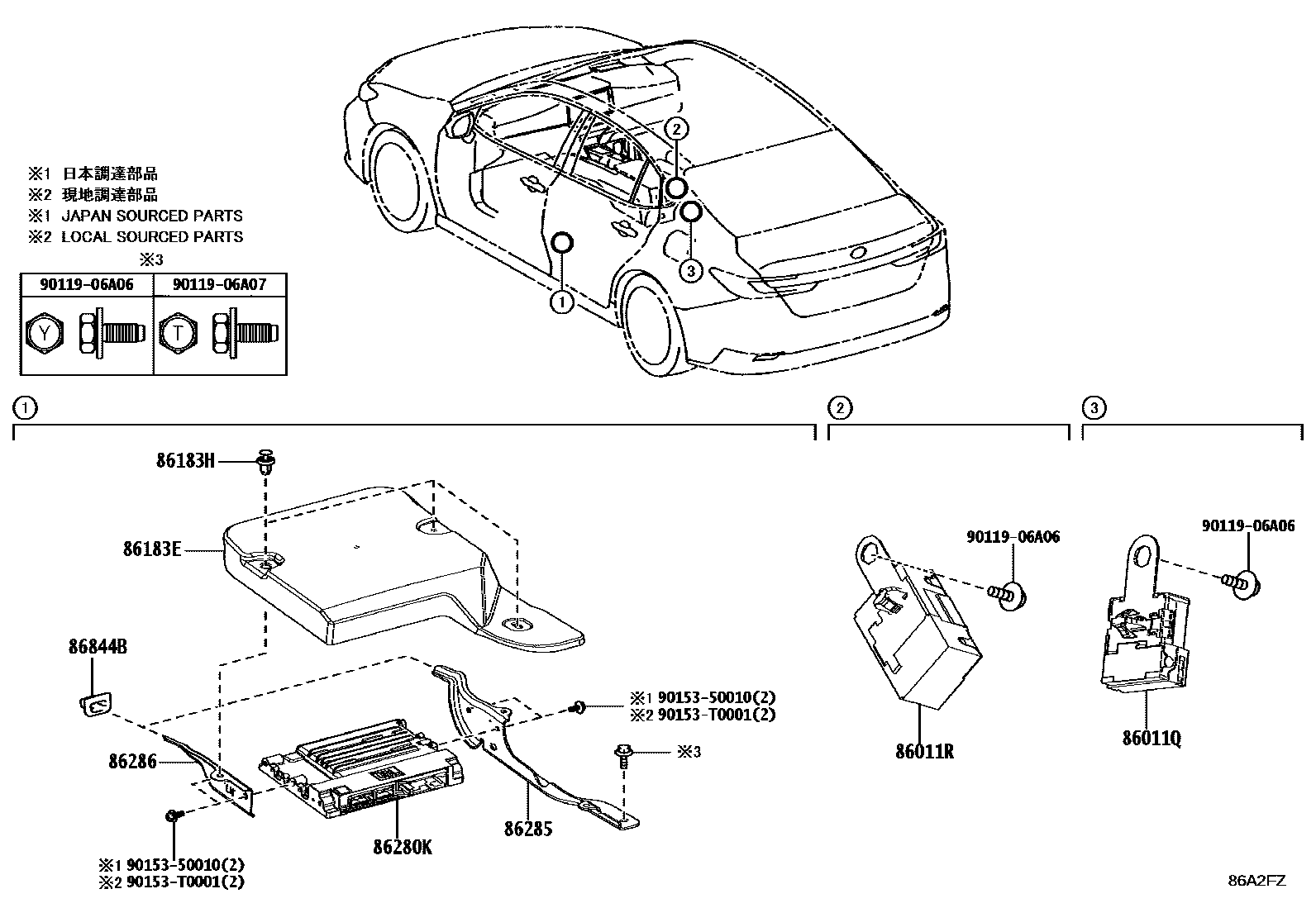

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011QCONDENSER, RADIO SETTING

main90980-04213iAXVA80,AXVH80,MXVA80202410

86011RCONDENSER, RADIO SETTING

main90980-04211iAXVA80,AXVH80,MXVA80202410

86183ECOVER, AUDIO AMPLIFIER

main86183-06090iMXVA80;AXVA80,AXVH80..V202410

AUDIO-12.3INCH 6SPEAKER

86183HCLIP, AUDIO AMPLIFIER COVER

main90467-T0039iMXVA80;AXVA80,AXVH80..V202410

AUDIO-12.3INCH 6SPEAKER

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-06360iMXVA80;AXVA80,AXVH80..V202410

AUDIO-12.3INCH 6SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-06100iMXVA80;AXVA80,AXVH80..V202410

AUDIO-12.3INCH 6SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-06100iMXVA80;AXVA80,AXVH80..V202410

AUDIO-12.3INCH 6SPEAKER

86844BRETAINER, AUDIO AMPLIFIER COVER

main55217-32010iMXVA80;AXVA80,AXVH80..V202410

AUDIO-12.3INCH 6SPEAKER

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9015350010

main90153-50010

90153T0001

main90153-T0001

12 parts on this diagram · 1 diagram in section
