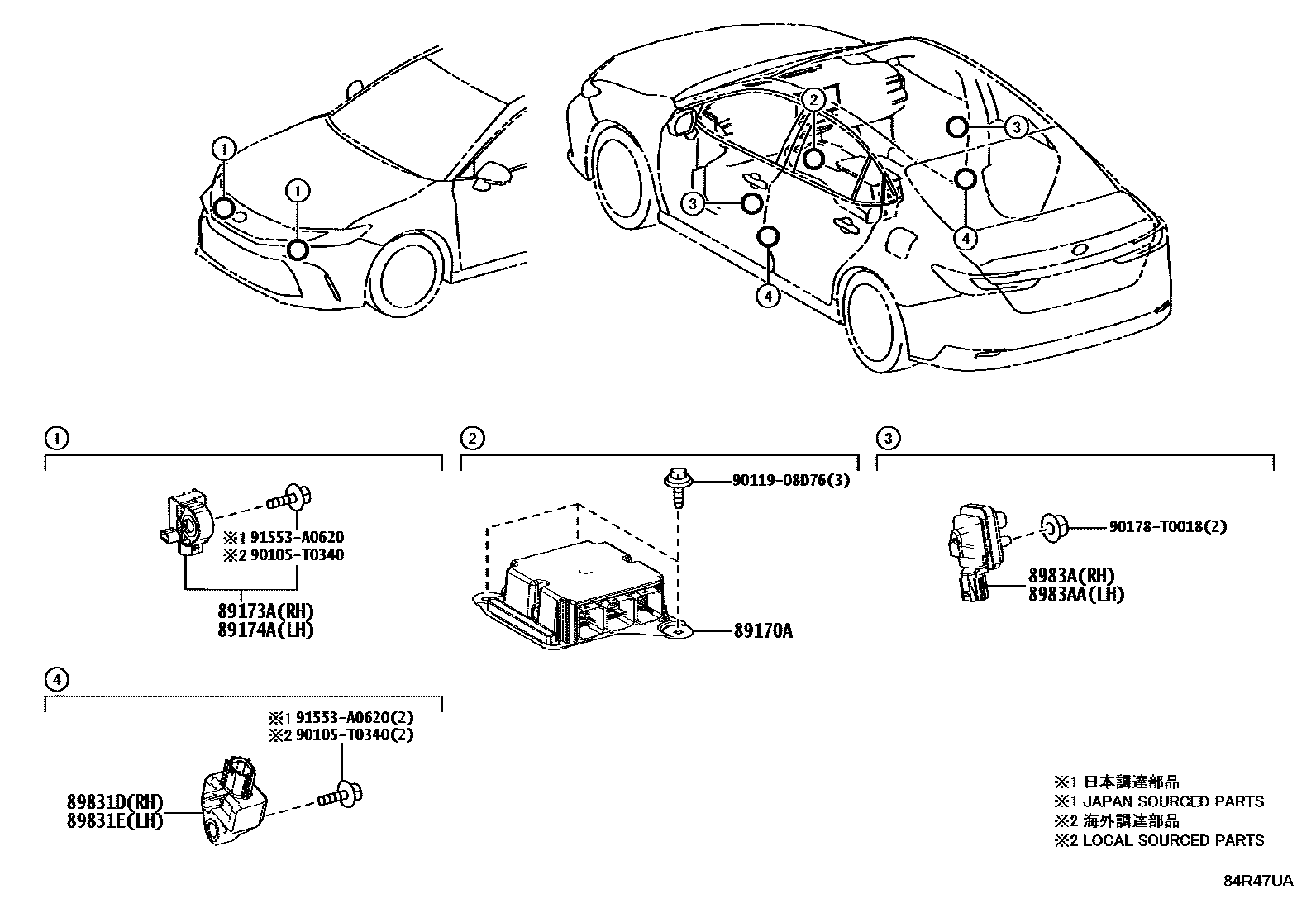

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-33W60iAXVA80,AXVH80,MXVA80202410

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iAXVA80,AXVH80,MXVA80202410

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iAXVA80,AXVH80,MXVA80202410

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42020iAXVA80,AXVH80,MXVA80202410

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42020iAXVA80,AXVH80,MXVA80202410

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iAXVA80,AXVH80,MXVA80202410

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iAXVA80,AXVH80,MXVA80202410

90105T0340

main90105-T0340

9011908D76

main90119-08D76

90178T0018

main90178-T0018

91553A0620

main91553-A0620

11 parts on this diagram · 1 diagram in section
