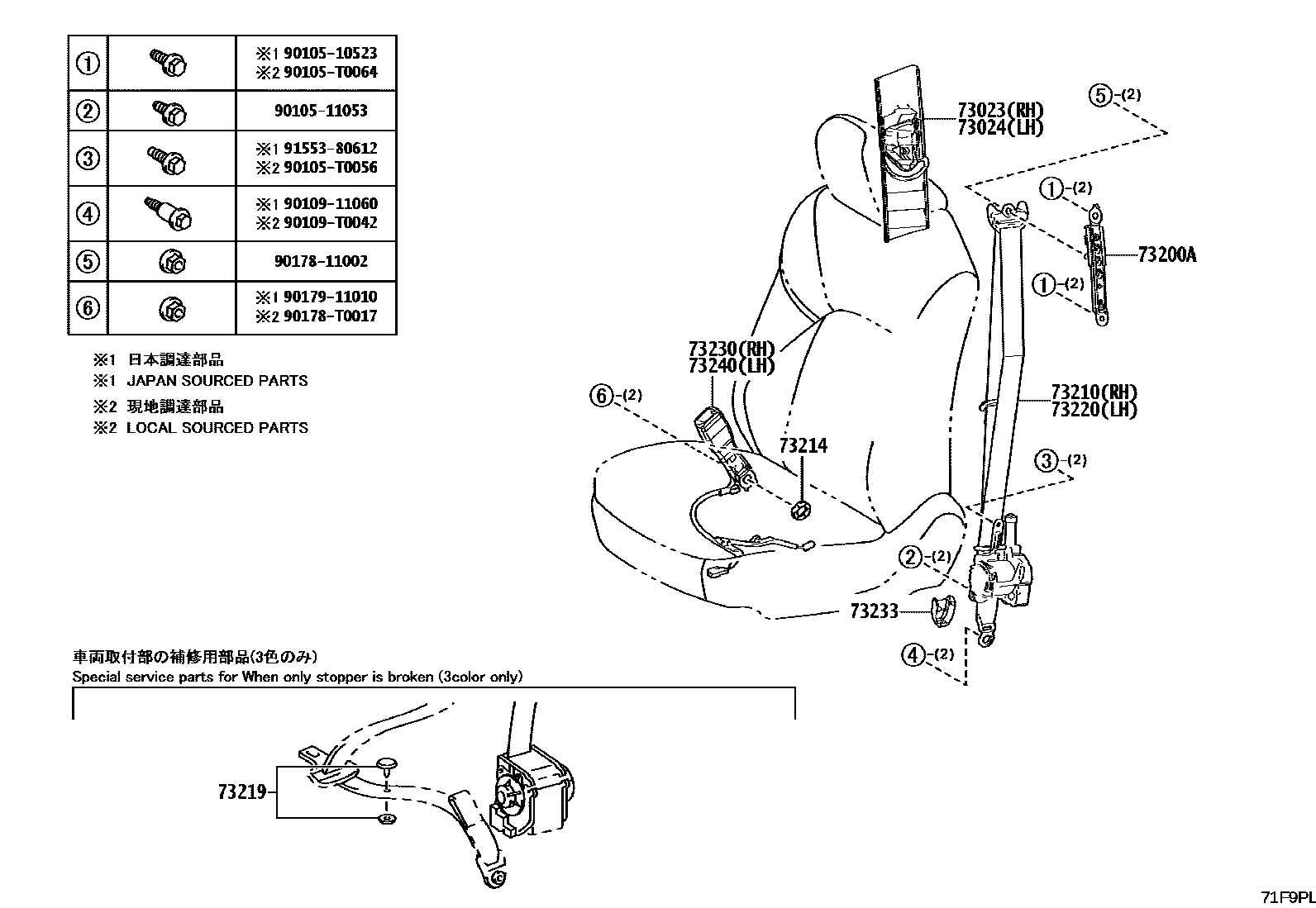

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06080-C1iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06110-C1iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#,4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140iAXVA80,AXVH80,MXVA80202410

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06450-C4iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

sub73210-06450

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iAXVA80,AXVH80,MXVA80202410

(L)

main73214-75010iAXVA80,AXVH80,MXVA80202410

(J)

73219STOPPER, TONGUE PLATE

main73219-33010iAXVA80,AXVH80,MXVA80202410

BLACK

main73219-33020iAXVA80,AXVH80,MXVA80202410

GRAY

main73219-33030iAXVA80,AXVH80,MXVA80202410

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06420-C4iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

sub73220-06420

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06840-C0iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

main73230-06860-C0iMXVA80202410

BLACK,TRIM0#,2#,4#

main73230-06870-C0iAXVA80,AXVH80..RHD..V202410

BLACK,TRIM0#,2#,4#

main73230-06C10-C0iAXVH80..LHD202410

BLACK,TRIM0#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06840-C0iMXVA80202410

BLACK,TRIM0#,2#,4#

main73230-06860-C0iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

main73230-06870-C0iAXVH80..LHD202410

BLACK,TRIM0#,2#,4#

main73230-06C10-C0iAXVA80,AXVH80..RHD..V202410

BLACK,TRIM0#,2#,4#

9010510523

main90105-10523

9010511053

main90105-11053

90105T0056

main90105-T0056

90105T0064

main90105-T0064

9010911060

main90109-11060

90109T0042

main90109-T0042

9017811002

main90178-11002

90178T0017

main90178-T0017

9017911010

main90179-11010

9155380612

main91553-80612

20 parts on this diagram · 2 diagrams in section
