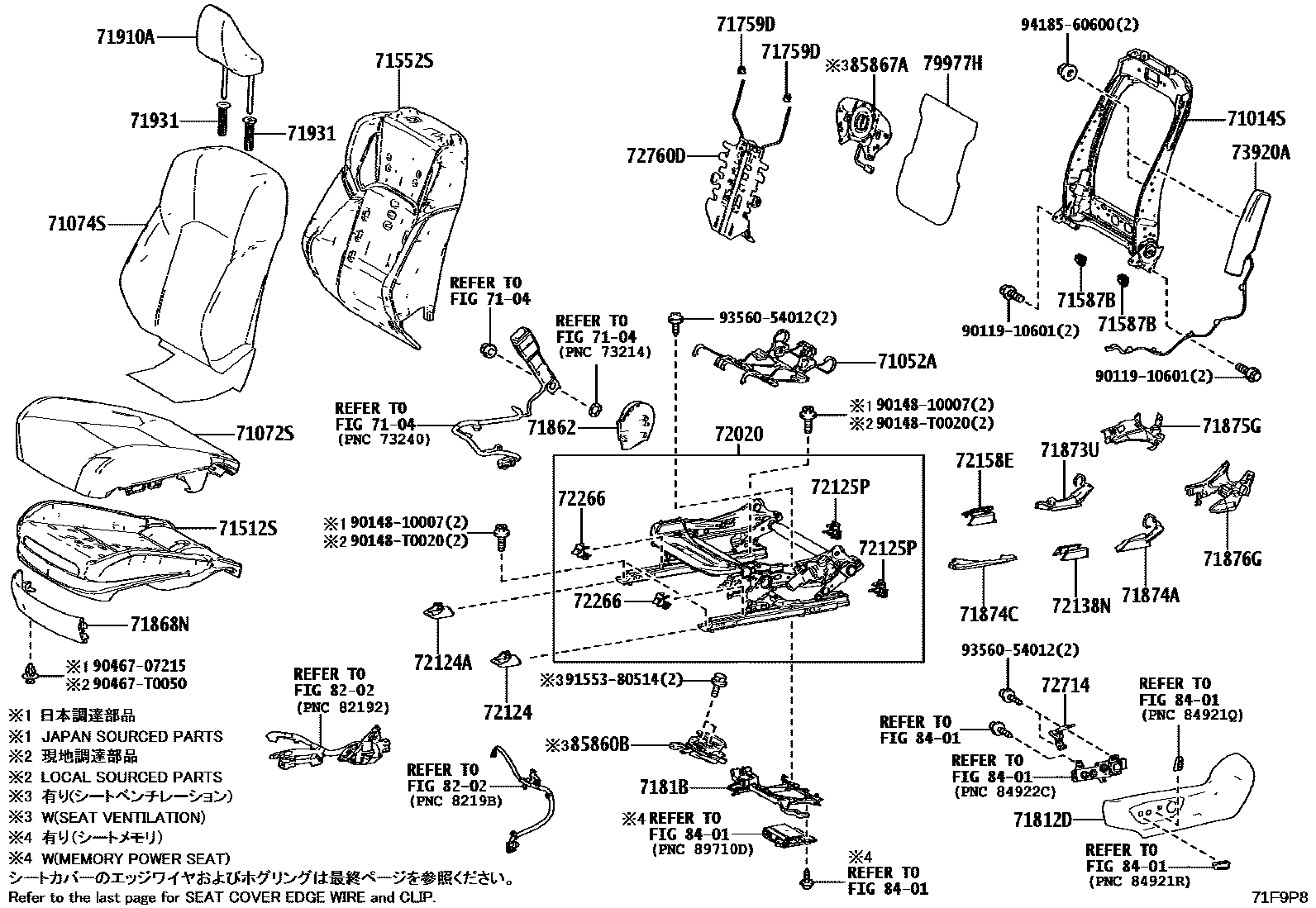

FRONT SEAT & SEAT TRACK

0001 1LH SEAT:POWER 8WAY 0002 1RH SEAT:POWER 8WAY 0003 1LH SEAT:POWER 8WAY 0004 1RH SEAT:POWER 8WAY 0005 1RH SEAT:POWER 4WAY 0006 1LH SEAT:POWER 4WAY

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-06830iAXVA80,AXVH80..RHD..V202410

main71014-06A00iAXVH80..LHD202410

main71014-06A10iAXVA80,AXVH80,MXVA80..G,Q202410

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06120iAXVA80,AXVH80,MXVA80202410

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-06V30-C4iAXVA80,AXVH80..G202410

BLACK,TRIM2#

main71072-06V30-E4iAXVA80,AXVH80..G202410

OCHER,TRIM4#

main71072-06V40-C4iMXVA80;AXVA80,AXVH80..V202410

BLACK,TRIM2#

main71072-06V40-E4iMXVA80;AXVA80,AXVH80..V202410

OCHER,TRIM4#

main71072-06Y50-C1iAXVH80..Q202410

BLACK,TRIM2#

main71072-06Y50-E1iAXVH80..Q202410

OCHER,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-06Z00-C5iAXVA80,AXVH80..G202410

BLACK,TRIM2#

main71074-06Z00-E5iAXVA80,AXVH80..G202410

OCHER,TRIM4#

main71074-06Z10-C3iAXVH80..LHD;AXVH80,MXVA80..Q202410

BLACK,TRIM2#

main71074-06Z10-E3iAXVH80..LHD;AXVH80,MXVA80..Q202410

OCHER,TRIM4#

main71074-0X310-C2iAXVA80,AXVH80..RHD..V202410

BLACK,TRIM2#

main71074-0X310-E2iAXVA80,AXVH80..RHD..V202410

OCHER,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-06340iAXVA80,AXVH80..RHD..V202410

main71502-06350iAXVA80,AXVH80..G,Q202410

main71512-06B30iMXVA80202410

main71512-06B50iAXVH80..LHD202410

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-06A10iAXVA80,AXVH80,MXVA80..G,Q202410

main71552-06A20iAXVH80..LHD202410

main71552-06A40iAXVA80,AXVH80..RHD..V202410

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-F4030iAXVA80,AXVH80,MXVA80202410

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-F4030iAXVA80,AXVH80,MXVA80202410

71759DHOOK, FRONT SEATBACK, NO.2

main71759-0K060iAXVA80,AXVH80,MXVA80202410

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06600-C0iMXVA80;AXVA80,AXVH80..V202410

BLACK,TRIM0#,2#,4#

main71812-33390-C0iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-06030iMXVA80;AXVA80,AXVH80..V202410

main7181B-F4020iAXVA80,AXVH80..G,Q202410

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06350-C0iMXVA80;AXVA80,AXVH80..V202410

BLACK,TRIM0#,2#,4#

main71862-06370-C0iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-06100-C0iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06430iAXVA80,AXVH80202410

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-06640iMXVA80;AXVA80,AXVH80..V202410

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-06620iAXVA80,AXVH80202410

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06420iMXVA80;AXVA80,AXVH80..V202410

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-06570iMXVA80;AXVA80,AXVH80..V202410

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-06440-C0iMXVA80;AXVA80,AXVH80..V202410

BLACK,TRIM0#,2#,4#

main71876-06550-C0iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06430-C0iMXVA80;AXVA80,AXVH80..V202410

BLACK,TRIM0#,2#,4#

main71876-06540-C0iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-06D90-C0iAXVA80,AXVH80..G202410

BLACK,TRIM2#

main71910-06D90-E0iAXVA80,AXVH80..G202410

OCHER,TRIM4#

main71910-06L80-C1iAXVA80,AXVH80,MXVA80..Q,V202410

BLACK,TRIM2#

main71910-06L80-E1iAXVA80,AXVH80,MXVA80..Q,V202410

OCHER,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0K050-C1iAXVA80,AXVH80,MXVA80202410

W(LOCK),BLACK,TRIM2#,4#

main71931-0K040-C1iAXVA80,AXVH80,MXVA80202410

W/O(LOCK),BLACK,TRIM2#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-06580iAXVA80,MXVA80..Q,V;AXVH80..RHD..V..THAI202410

main72020-06660iAXVH80..LHD202410

main72020-06670iAXVA80,AXVH80..G,Q202410

main72020-06680iAXVH80..IND202412

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-06130iAXVA80,AXVH80,MXVA80202410

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-06130iAXVA80,AXVH80,MXVA80202410

72125PCOVER, SEAT TRACK, UPPER REAR NO.3

main72125-06100iAXVA80,AXVH80,MXVA80202410

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-06150iAXVA80,AXVH80,MXVA80202410

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-06210iAXVA80,AXVH80,MXVA80202410

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-06040iAXVH80;AXVA80,MXVA80..Q,V202410

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-06020iMXVA80;AXVA80,AXVH80..V202410

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140iMXVA80202410

main72750-33150iAXVA80,AXVH80..V202410

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-06230iAXVA80,AXVH80,MXVA80202410

79977HFELT, FRONT SEATBACK, LH

main79977-06040iMXVA80;AXVA80,AXVH80..V202410

8202

8401

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85802-42020iAXVA80,AXVH80..V202410

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-30040iAXVA80,AXVH80..V202410

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-30040iAXVA80,AXVH80..V202410

9011910601

main90119-10601

9014810007

main90148-10007

90148T0020

main90148-T0020

9046707215

main90467-07215

90467T0050

main90467-T0050

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

47 parts on this diagram · 6 diagrams in section
