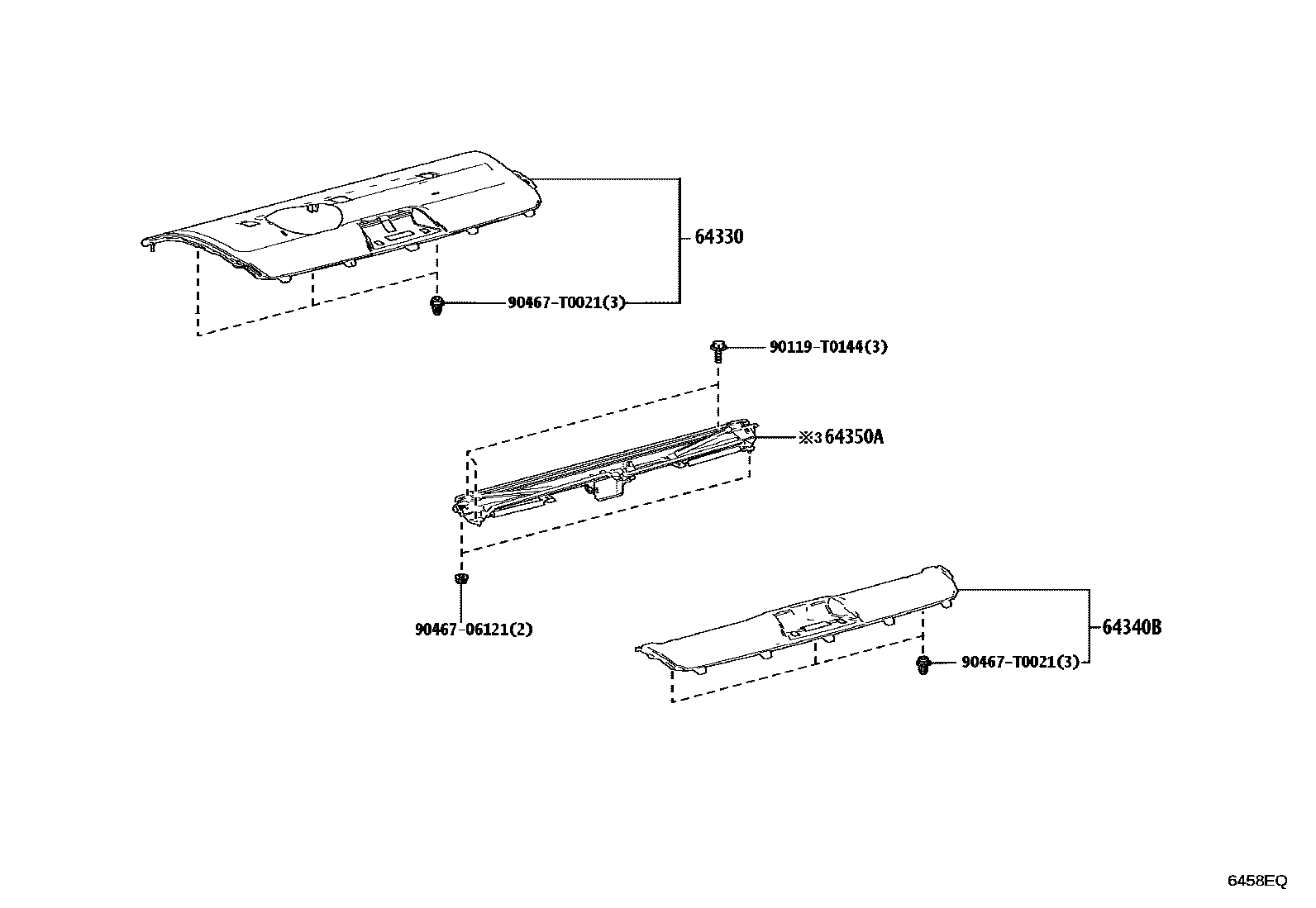

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06B10-C1iAXVA80,AXVH80..G,Q202410

BLACK,TRIM0#,2#,4#

main64330-06B10-C1iAXVA80,AXVH80..G,Q202410

AUDIO-12.3INCH 6SPEAKER,BLACK,TRIM0#,2#,4#

main64330-06B20-C0iAXVA80..V202410

BLACK,TRIM0#,2#,4#

main64330-06B40-C0iMXVA80;AXVH80..V202410

BLACK,TRIM0#,2#,4#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-06280-C0iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

64350ASHADE ASSY, REAR WINDOW

main64350-06160iAXVA80,AXVH80,MXVA80202410

90119T0144

main90119-T0144

9046706121

main90467-06121

90467T0021

main90467-T0021

6 parts on this diagram · 2 diagrams in section
