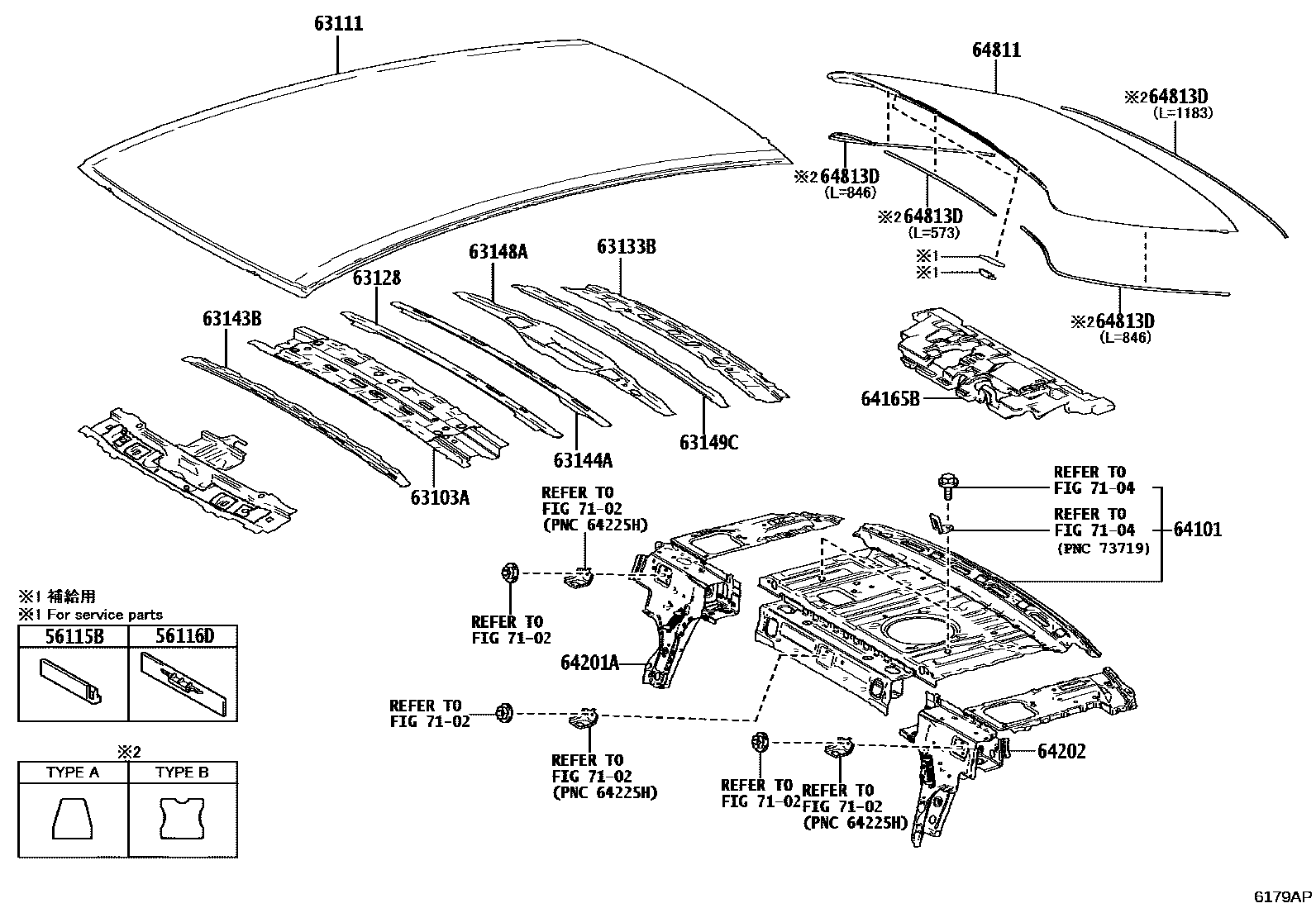

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0004 1ROOF PANEL(PANORAMA ROOF) 0005 1SLIDING ROOF PANEL(MOON ROOF)0007 1SLIDING ROOF PANEL(PANORAMA R

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAXVA80,AXVH80,MXVA80202410

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAXVA80,AXVH80,MXVA80202410

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-06150iAXVA80,AXVH80..G202410

MOON ROOF-WITHOUT

63111PANEL, ROOF

main63111-06640iAXVA80,AXVH80..G202410

MOON ROOF-WITHOUT

main63111-06690iMXVA80;AXVH80..IND202410

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-06040iAXVH80..G;AXVH80..IND;AXVA80,MXVA80..G,Q202410

MOON ROOF-WITHOUT

63133BFRAME, BACK WINDOW

main63133-06200iAXVH80..G;AXVH80..IND;AXVA80,MXVA80..G,Q202410

MOON ROOF-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-06140iAXVA80,AXVH80..G202410

MOON ROOF-WITHOUT

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06250iAXVH80..G;AXVH80..IND;AXVA80,MXVA80..G,Q202410

MOON ROOF-WITHOUT

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06160iAXVH80..G;AXVH80..IND;AXVA80,MXVA80..G,Q202410

MOON ROOF-WITHOUT

63149CREINFORCEMENT, ROOF PANEL SIDE, LH

main63149-06110iAXVH80..G;AXVH80..IND;AXVA80,MXVA80..G,Q202410

MOON ROOF-WITHOUT

64101PANEL SUB-ASSY, UPPER BACK

main64101-06420iAXVA80,AXVH80,MXVA80202410

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06330iMXVA80;AXVA80,AXVH80..V202410

main64165-06450iAXVA80,AXVH80..G,Q202410

AUDIO-12.3INCH 6SPEAKER

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-06210iAXVA80,AXVH80,MXVA80202410

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-06210iAXVA80,AXVH80,MXVA80202410

64811GLASS, BACK WINDOW

main64801-06290iAXVA80,AXVH80,MXVA80..THAI202410

main64801-06330iAXVH80..IND202412

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-06170iAXVA80,AXVH80,MXVA80..THAI202410

TYPE A, L=1183

main64813-06190iAXVA80,AXVH80,MXVA80..THAI202410

TYPE B, L=1183

main64813-06290iAXVA80,AXVH80,MXVA80..THAI202410

TYPE A, L=846

main64813-06300iAXVA80,AXVH80,MXVA80..THAI202410

TYPE B, L=846

main64813-06310iAXVA80,AXVH80,MXVA80..THAI202410

TYPE A, L=573

main64813-06320iAXVA80,AXVH80,MXVA80..THAI202410

TYPE B, L=573

main64813-06330iAXVH80..IND202412

TYPE A, L=1183

main64813-06350iAXVH80..IND202412

TYPE A, L=846

main64813-06370iAXVH80..IND202412

TYPE A, L=573

7102

7104

18 parts on this diagram · 5 diagrams in section
