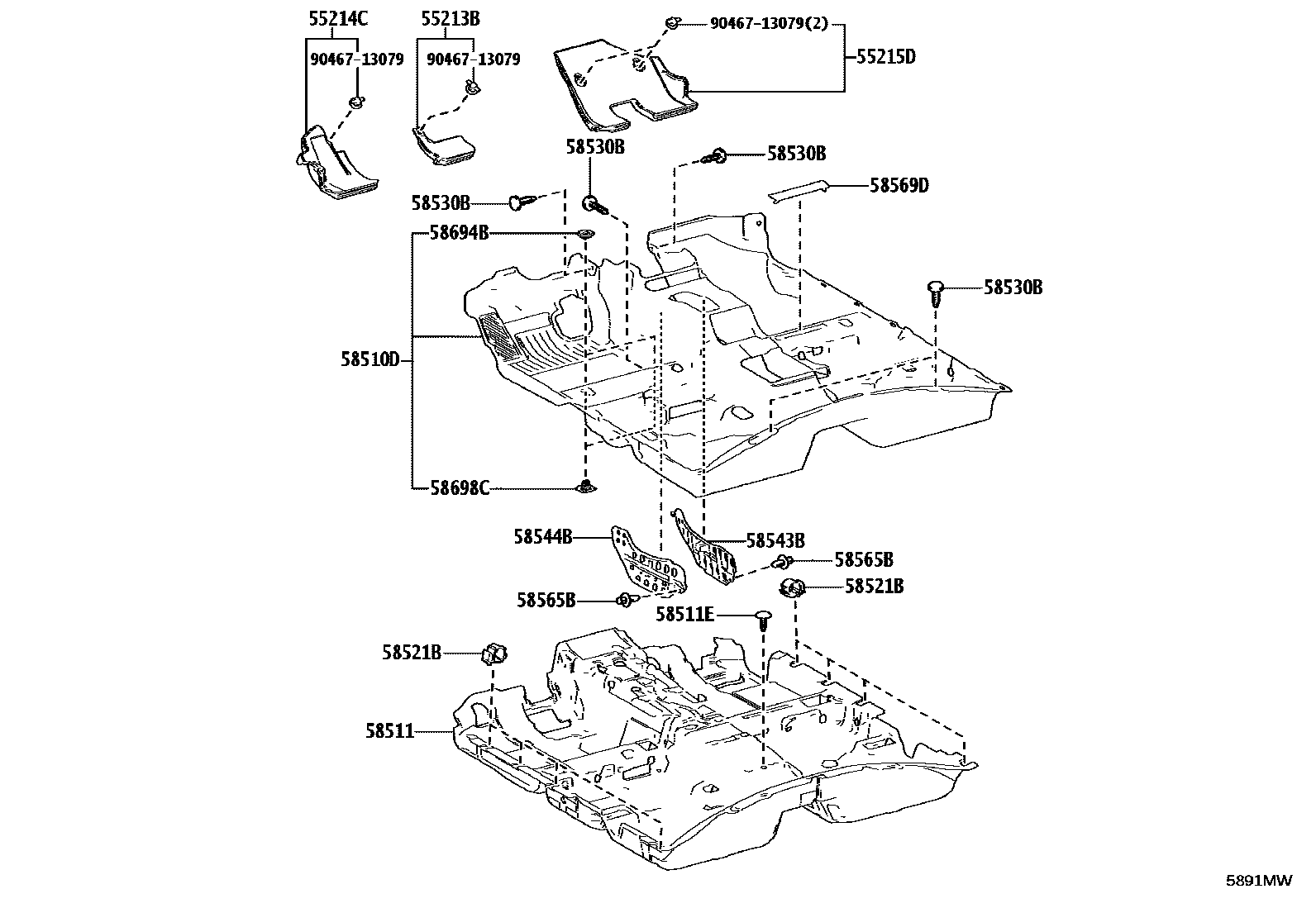

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
BRUNEI SPEC,BLACK,TRIM0#,2#,4#
MALAYSIA SPEC,BLACK,TRIM0#,2#,4#
58511ECLIP(FOR FRONT FLOOR MAT)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58543BBRACKET, FLOOR CARPET, RH
58544BBRACKET, FLOOR CARPET, LH
58565BCLIP
BLACK
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#,4#
58694BPLATE, MAT SET, UPPER
BRUNEI SPEC
MALAYSIA SPEC
58698CPLATE, MAT SET, LOWER
BRUNEI SPEC
MALAYSIA SPEC
9046713079
main90467-13079
15 parts on this diagram · 5 diagrams in section
