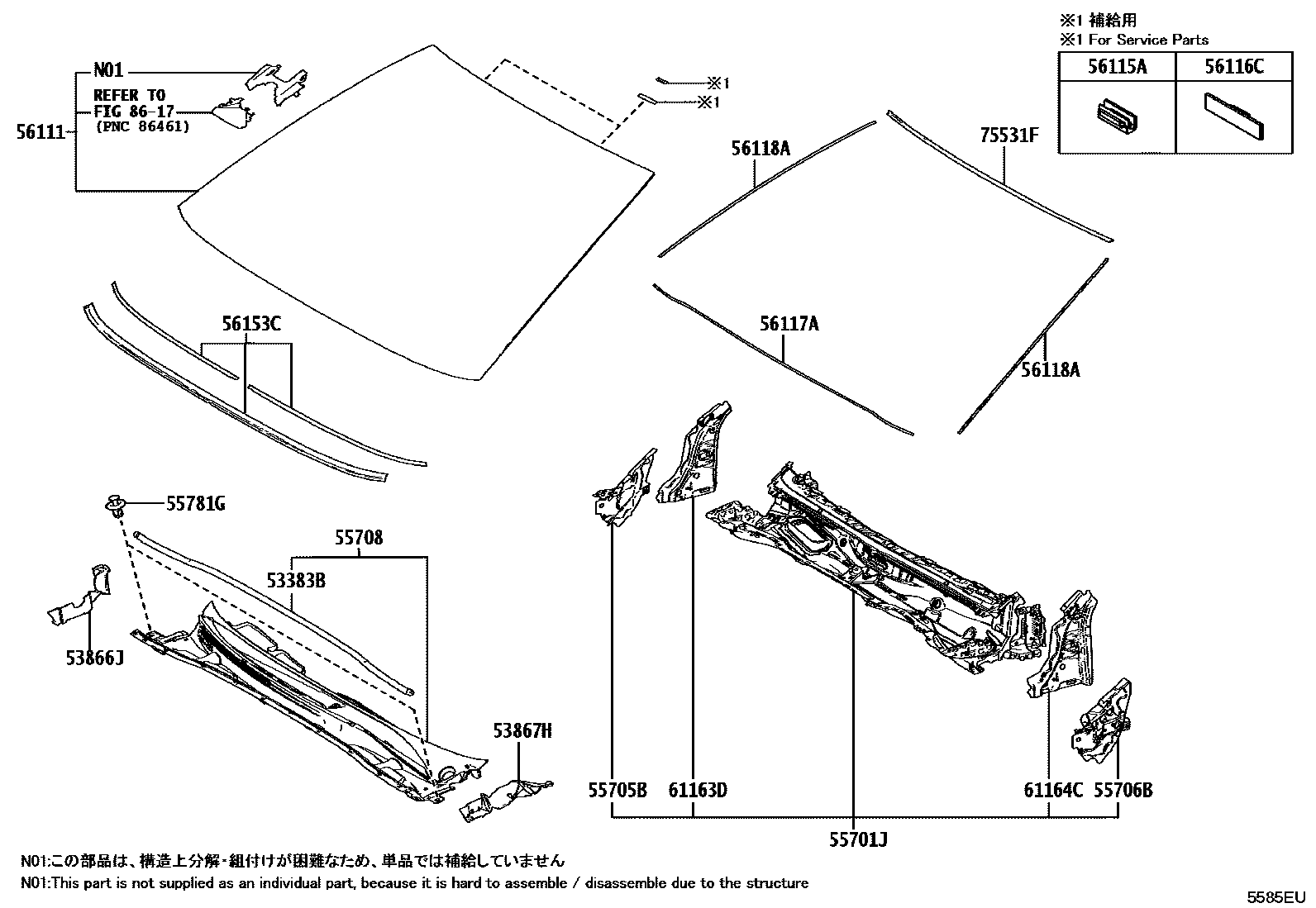

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-33140iAXVA80,AXVH80,MXVA80¥680202410

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-06170iAXVA80,AXVH80..RHD202410

main53866-33090iAXVH80,MXVA80..LHD202410

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-06170iAXVA80,AXVH80..RHD202410

main53867-33090iAXVH80,MXVA80..LHD¥1,030202410

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06380iAXVH80,MXVA80..LHD202410

main55701-06390iAXVA80,AXVH80..RHD202410

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-06050iAXVA80,AXVH80,MXVA80202410

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-06050iAXVA80,AXVH80,MXVA80202410

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06321iAXVH80,MXVA80..LHD202410

main55708-06331iAXVA80,AXVH80..RHD202410

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAXVA80,AXVH80,MXVA80¥120202410

56111GLASS, WINDSHIELD

main56101-0X923iAXVH80,MXVA80..LHD202410

main56101-0X924iAXVA80,AXVH80..G,Q202410

main56101-0X925iAXVA80,AXVH80..RHD..V..THAI202410

main56101-0X926iAXVH80..IND202412

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iAXVA80,AXVH80,MXVA80..THAI¥130202410

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXVA80,AXVH80,MXVA80¥120202410

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06230iAXVA80,AXVH80,MXVA80..THAI202410

L=1298

main56117-06260iAXVH80..IND202412

L=1298

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-06050iAXVA80,AXVH80,MXVA80..THAI202410

L=725

main56118-06090iAXVH80..IND202412

L=725

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-33070iAXVA80,AXVH80,MXVA80¥4,700202410

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-06040iAXVA80,AXVH80,MXVA80202410

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-06040iAXVA80,AXVH80,MXVA80202410

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-06220iAXVA80,AXVH80,MXVA80202410

8617

18 parts on this diagram · 2 diagrams in section
