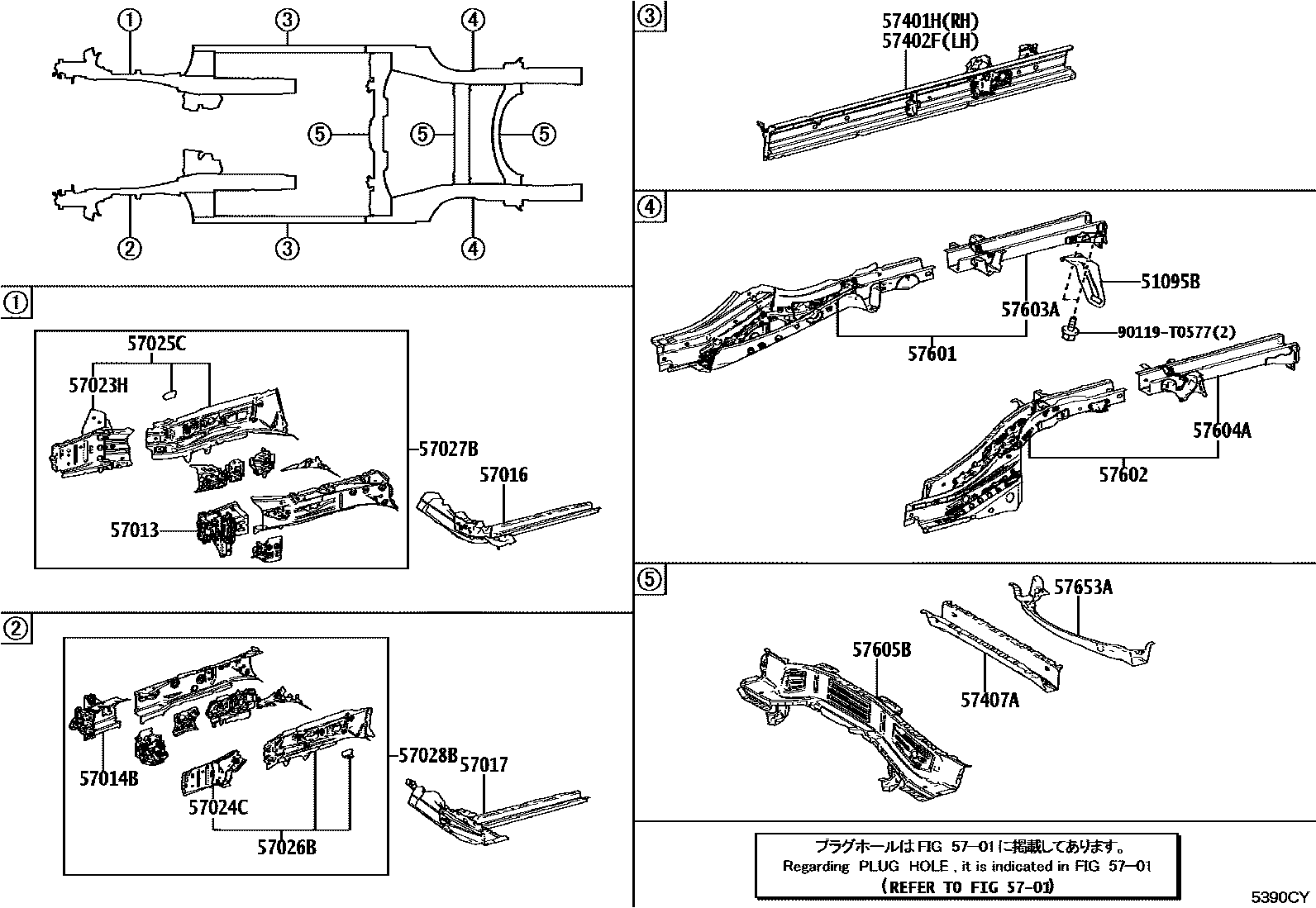

FLOOR SIDE MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-06020iAXVA80,AXVH80,MXVA80202410

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-06051iAXVA80,AXVH80,MXVA80202410

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-06041iAXVA80,AXVH80,MXVA80202410

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-06220iAXVA80,AXVH80,MXVA80202410

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-06200iAXVA80,AXVH80,MXVA80202410

57023HBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-06030iAXVA80,AXVH80,MXVA80202410

57024CBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-06030iAXVA80,AXVH80,MXVA80202410

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-06170iAXVA80,AXVH80,MXVA80202410

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-06170iAXVA80,AXVH80,MXVA80202410

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06907iAXVA80,AXVH80,MXVA80202410

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06905iAXVA80,AXVH80,MXVA80202410

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-06310iAXVA80,AXVH80,MXVA80202410

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-06320iAXVA80,AXVH80,MXVA80202410

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-06061iAXVA80,AXVH80,MXVA80202410

(L)

main57407-33011iAXVA80,AXVH80,MXVA80202410

(J)

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06460iAXVA80,AXVH80,MXVA80202410

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06290iAXVA80,AXVH80,MXVA80202410

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-06050iAXVA80,AXVH80,MXVA80202410

(L)

main57603-33030iAXVA80,AXVH80,MXVA80202410

(J)

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-06080iAXVA80,AXVH80,MXVA80202410

(L)

main57604-33030iAXVA80,AXVH80,MXVA80202410

(J)

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06261iAXVA80,MXVA80202410

(L)

main57605-06270iAXVH80202410

(L)

main57605-33131iAXVA80,MXVA80202410

(J)

main57605-33140iAXVH80202410

(J)

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06140iAXVA80,AXVH80,MXVA80202410

(L)

main57653-33100iAXVA80,AXVH80,MXVA80202410

(J)

90119T0577

main90119-T0577

22 parts on this diagram · 2 diagrams in section
