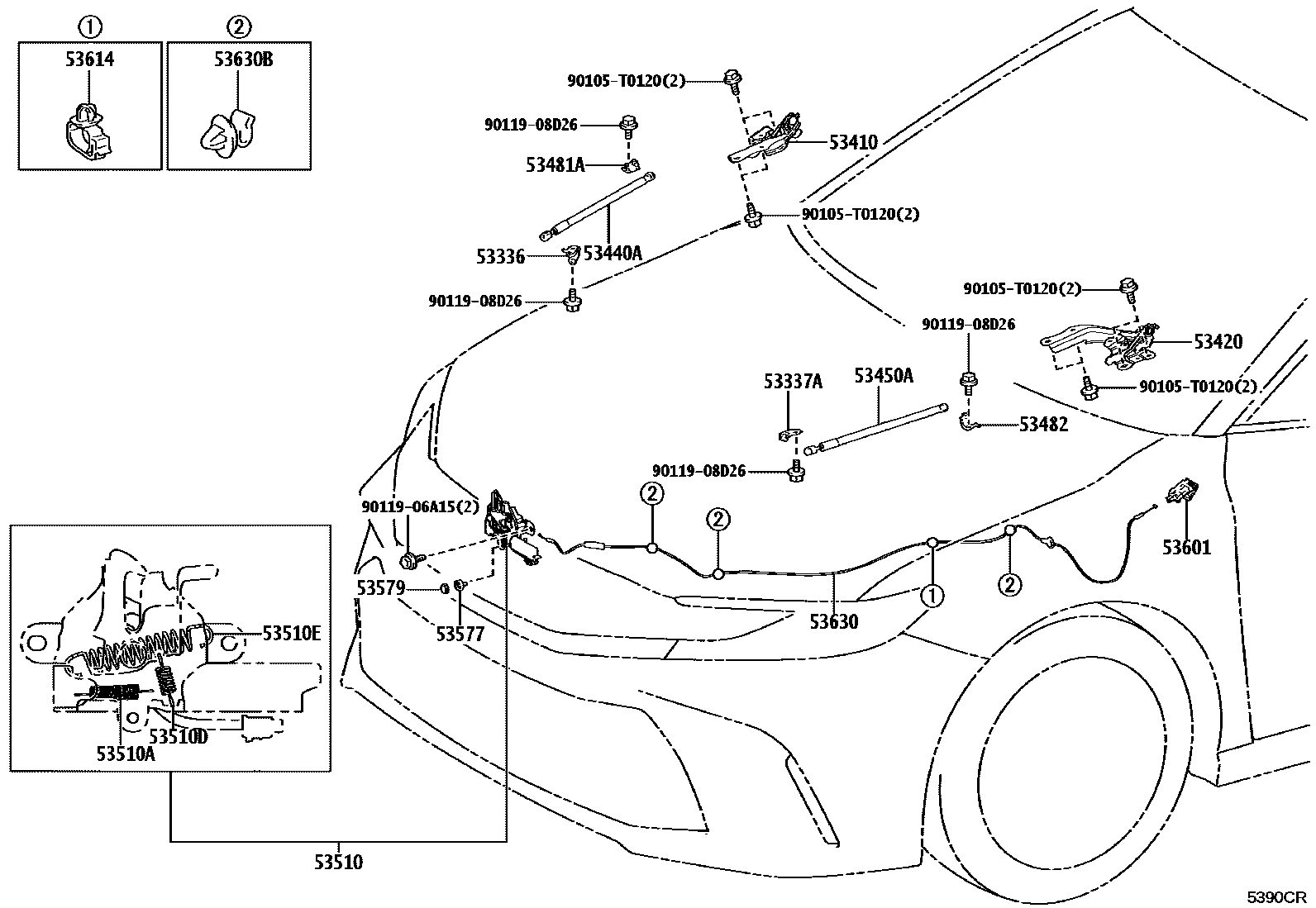

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-06090iAXVA80,AXVH80,MXVA80202410

(L)

main53336-33070iAXVA80,AXVH80,MXVA80202410

(J)

53337ABRACKET, HOOD STAY, LH

main53337-06080iAXVA80,AXVH80,MXVA80202410

(L)

main53337-33050iAXVA80,AXVH80,MXVA80202410

(J)

53410HINGE ASSY, HOOD, RH

main53410-06460iAXVA80,AXVH80,MXVA80202410

53420HINGE ASSY, HOOD, LH

main53420-06460iAXVA80,AXVH80,MXVA80202410

53440ASUPPORT ASSY, HOOD, RH

main53440-06190iAXVA80,AXVH80,MXVA80202410

53450ASUPPORT ASSY, HOOD, LH

main53450-06160iAXVA80,AXVH80,MXVA80202410

53481ABRACKET, HOOD SUPPORT, RH

main53481-06170iAXVA80,AXVH80,MXVA80202410

53482BRACKET, HOOD SUPPORT, LH

main53482-06150iAXVA80,AXVH80,MXVA80202410

53510LOCK ASSY, HOOD

main53510-06370iAXVA80,AXVH80..RHD202410

main53510-06440iAXVH80,MXVA80..LHD202410

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iAXVA80,AXVH80,MXVA80202410

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iAXVA80,AXVH80,MXVA80202410

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAXVA80,AXVH80,MXVA80202410

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iAXVA80,AXVH80,MXVA80202410

53579CAP, HOOD LOCK NUT

main53579-50010iAXVA80,AXVH80,MXVA80202410

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C1iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-1E340iAXVH80,MXVA80..LHD202410

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06261iAXVH80,MXVA80..LHD202410

main53630-06271iAXVA80,AXVH80..RHD202410

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iAXVA80,AXVH80,MXVA80202410

(J)

main90469-T0003iAXVA80,AXVH80,MXVA80202410

(L)

90105T0120

main90105-T0120

9011906A15

main90119-06A15

9011908D26

main90119-08D26

21 parts on this diagram · 2 diagrams in section
