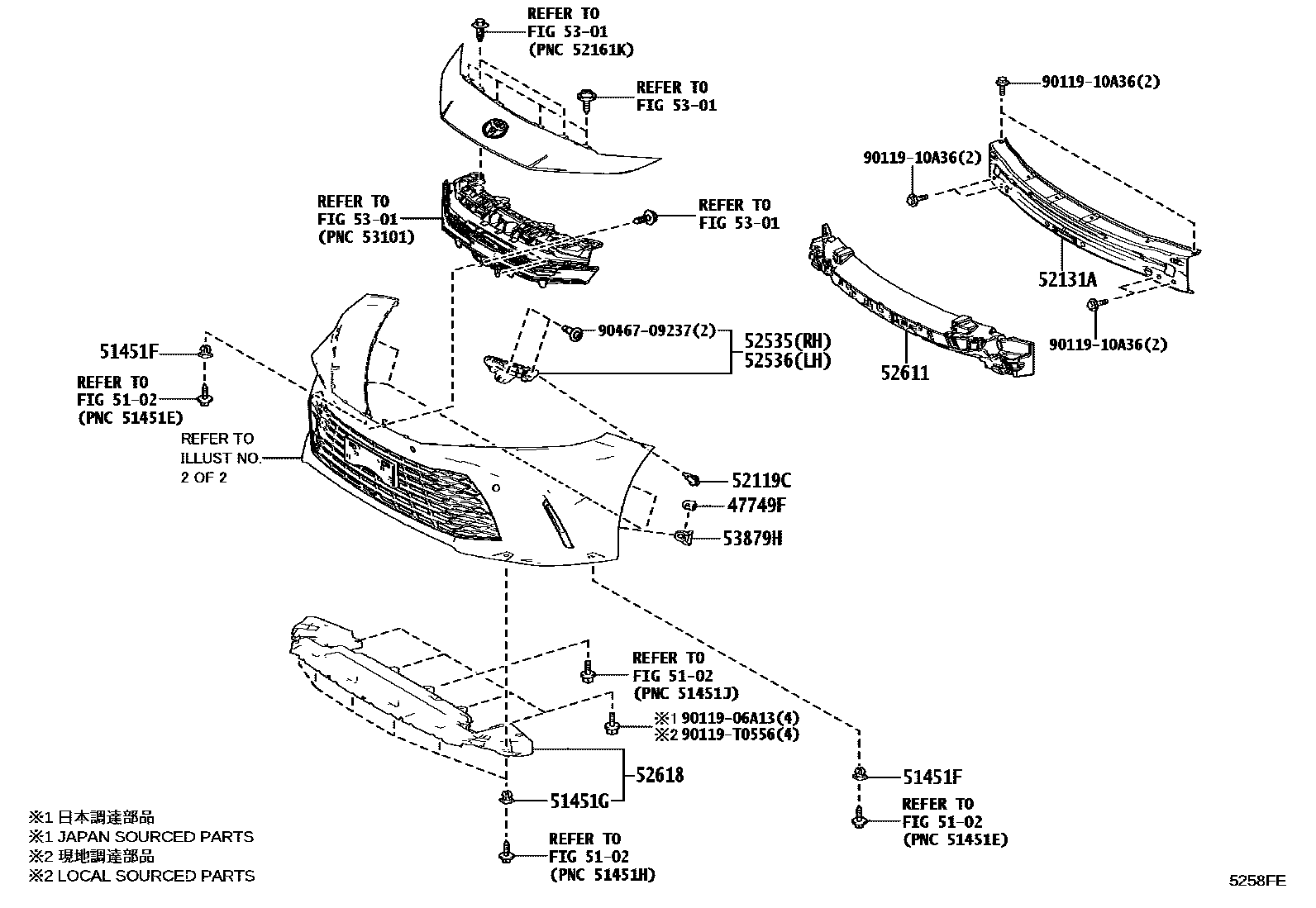

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

47749FCLIP, PIN HOLD

main47749-33030iAXVA80,AXVH80,MXVA80202410

5102

51451FGROMMET, NO.1

main90189-06237iAXVA80,AXVH80,MXVA80202410

(J)

main90189-T0024iAXVA80,AXVH80,MXVA80202410

(L)

51451GGROMMET, NO.2

main90189-06237iAXVA80,AXVH80,MXVA80202410

(J)

main90189-T0024iAXVA80,AXVH80,MXVA80202410

(L)

main90189-T0024iAXVA80,AXVH80,MXVA80202410

FRONT FOG LAMP-WITHOUT,(J)

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXVA80,AXVH80,MXVA80202410

(J)

main90467-T0047iAXVA80,AXVH80,MXVA80202410

(L)

52131AREINFORCEMENT, FRONT BUMPER

main52131-06211iAXVA80,MXVA80202410

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06270iAXVA80,AXVH80,MXVA80202410

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06260iAXVA80,AXVH80,MXVA80202410

NO PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06550iAXVA80,AXVH80,MXVA80202410

52618ABSORBER, FRONT BUMPER, LOWER

main52618-06080iAXVA80,AXVH80,MXVA80202410

5301

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXVA80,AXVH80,MXVA80202410

9011906A13

main90119-06A13

9011910A36

main90119-10A36

90119T0556

main90119-T0556

9046709237

main90467-09237

16 parts on this diagram · 3 diagrams in section
