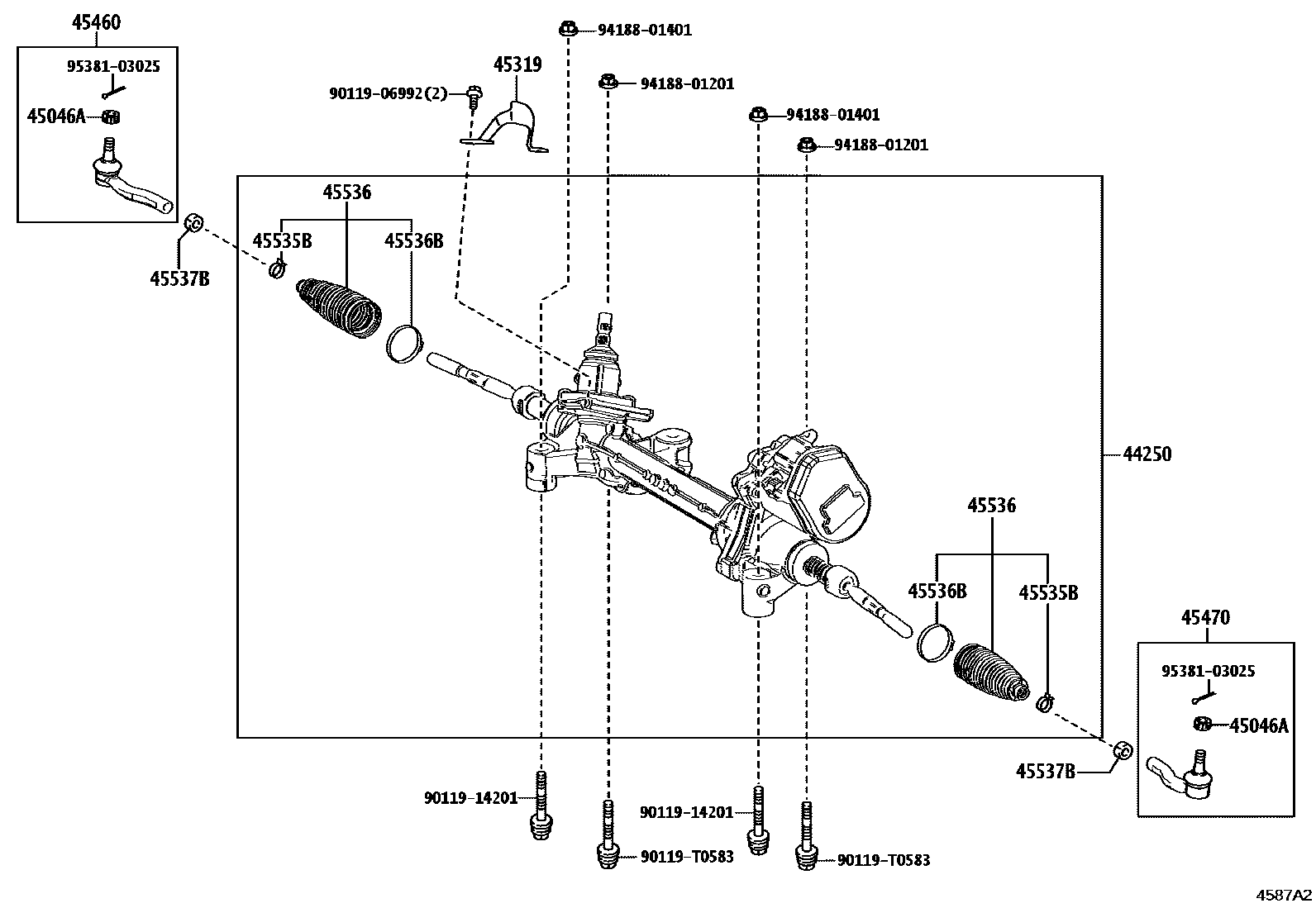

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33A00iAXVH80,MXVA80..LHD202410

main44250-33A80iAXVA80,AXVH80..RHD202410

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0004iAXVA80,AXVH80,MXVA80202410

45319INSULATOR, STEERING GEAR HEAT

main45319-33010iAXVH80,MXVA80..LHD202410

main45319-33030iAXVA80,AXVH80..RHD202410

45460ROD ASSY, TIE, RH

main45460-09320iAXVA80,AXVH80,MXVA80..THAI202410

main45460-80008iAXVH80..IND202412

45470ROD ASSY, TIE, LH

main45470-09200iAXVA80,AXVH80,MXVA80..THAI202410

main45470-39365iAXVH80..IND202412

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAXVA80,AXVH80,MXVA80202410

45536BOOT, STEERING RACK, NO.2

main45535-69065iAXVA80,AXVH80,MXVA80202410

45536BCLAMP(FOR STEERING RACK BOOT NO.3)

main45538-06030iAXVA80,AXVH80,MXVA80202410

45537BNUT, RACK END LOCK

main90178-16001iAXVA80,AXVH80,MXVA80202410

(J)

main90178-T0073iAXVA80,AXVH80,MXVA80202410

(L)

9011906992

main90119-06992

9011914201

main90119-14201

90119T0583

main90119-T0583

9418801201

main94188-01201

9418801401

main94188-01401

9538103025

main95381-03025

15 parts on this diagram · 2 diagrams in section
