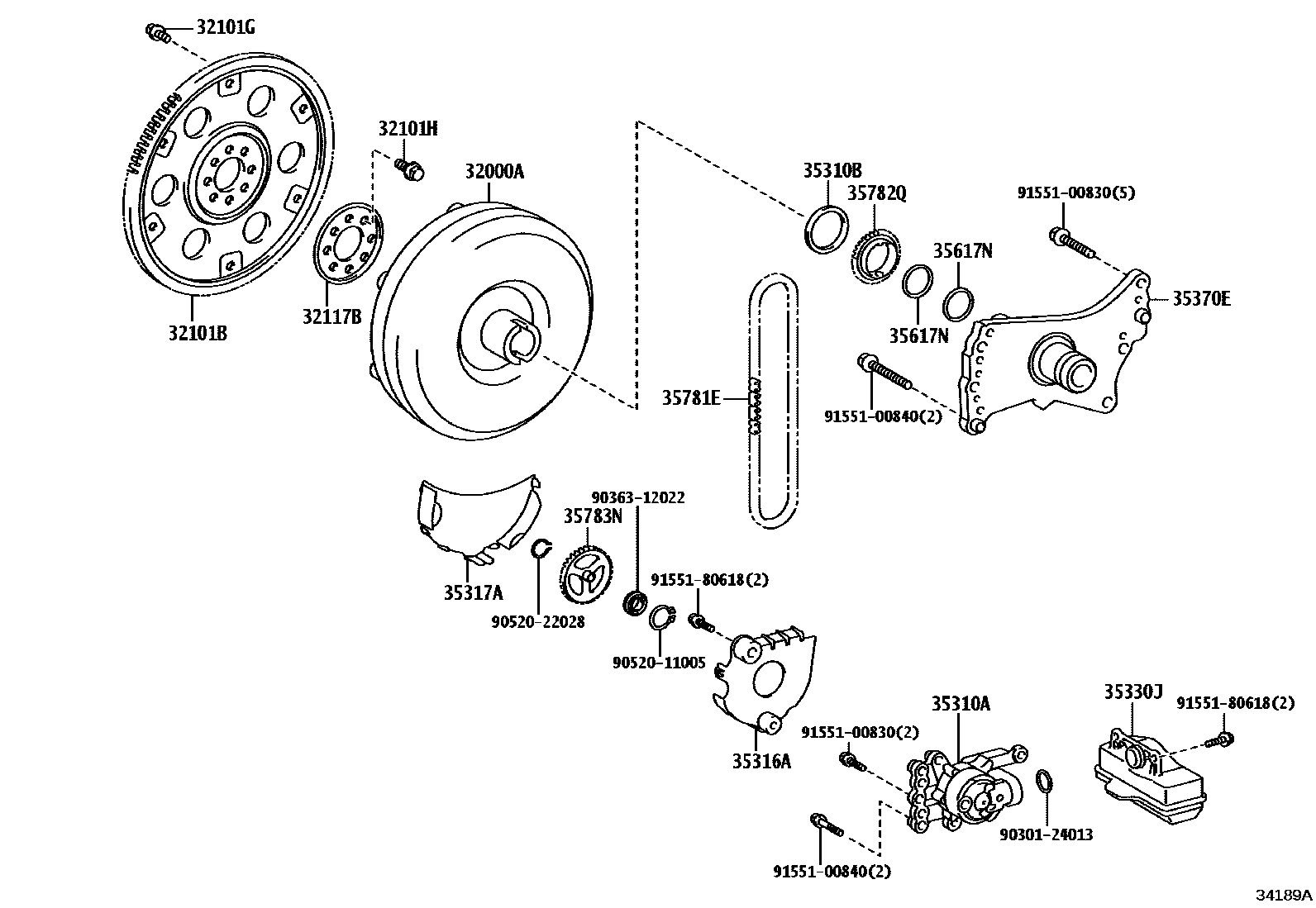

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMXVA80¥74,000202410

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12120iMXVA80¥13,400202410

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXVA80¥80202410

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXVA80¥80202410

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXVA80¥100202410

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXVA80¥920202410

35310APUMP ASSY, FRONT OIL

main35310-42010iMXVA80202410

35310BBEARING, THRUST NEEDLE ROLLER, NO.1

main90374-47007iMXVA80¥1,120202410

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXVA80¥980202410

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXVA80¥590202410

35330JSTRAINER ASSY, OIL

main35330-28040iMXVA80¥3,580202410

35370ESHAFT ASSY, STATOR (CVT)

main35370-12130iMXVA80¥14,900202410

35617NRING, CLUTCH DRUM OIL SEAL

main35617-12070iMXVA80¥160202410

35781ECHAIN, TRANSMISSION DRIVE

main35781-42010iMXVA80¥1,420202410

35782QSPROCKET, DRIVE

main35782-12070iMXVA80¥2,380202410

35783NSPROCKET, DRIVEN

main35783-12060iMXVA80¥1,310202410

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

22 parts on this diagram · 1 diagram in section
