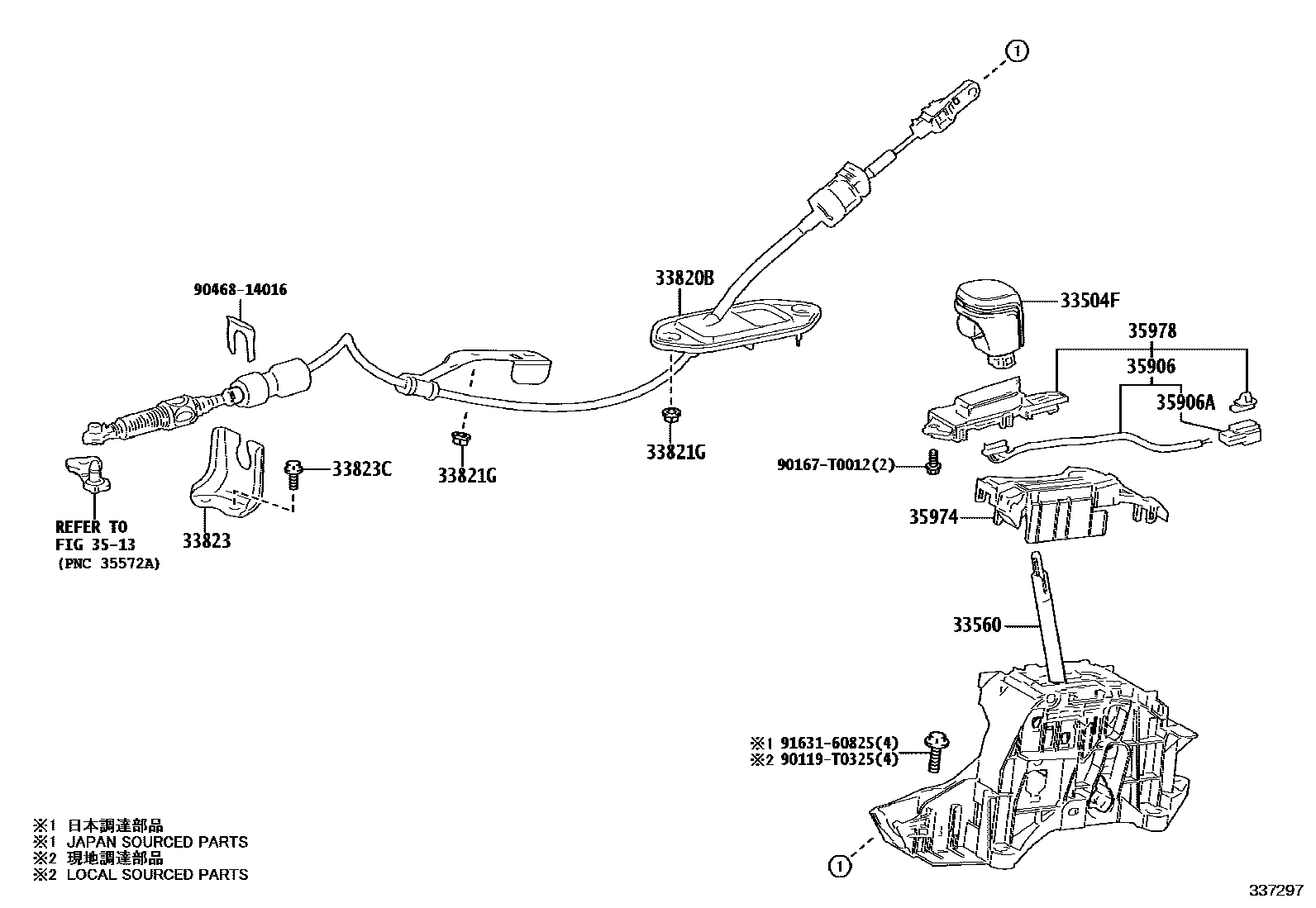

SHIFT LEVER & RETAINER

0001 1RHD AT 0002 1LHD HV 0003 1RHD HV 0004 1LHD CVT

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06390-C0iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06460iAXVA80,AXVH80..RHD..THAI202410

main33560-33380iAXVH80,MXVA80..LHD202410

main33560-33400iAXVH80..IND202412

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06560iAXVA80202410

main33820-06680iMXVA80202410

main33820-06720iAXVH80..LHD202410

main33820-06730iAXVH80..RHD202410

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-T0007iAXVA80,AXVH80,MXVA80202410

(L)

main90179-06274iAXVA80,AXVH80,MXVA80202410

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06110iAXVA80202410

main33823-06160iMXVA80202410

main33823-06180iAXVH80202410

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-T0342iAXVA80,AXVH80,MXVA80202410

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06310iAXVA80202410

main35906-33190iAXVH80..LHD202410

main35906-33210iAXVH80..RHD202410

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iAXVA80,MXVA80202410

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06180iAXVA80,AXVH80..RHD..THAI202410

main35974-33240iAXVH80,MXVA80..LHD202410

main35974-33250iAXVH80..IND202412

35978INDICATOR, SHIFT POSITION

main35978-06290iAXVA80202410

main35978-33190iAXVH80..LHD202410

main35978-33210iAXVH80..RHD202410

main35978-33430iMXVA80202410

90119T0325

main90119-T0325

90167T0012

main90167-T0012

9046814016

main90468-14016

9163160825

main91631-60825

15 parts on this diagram · 4 diagrams in section
