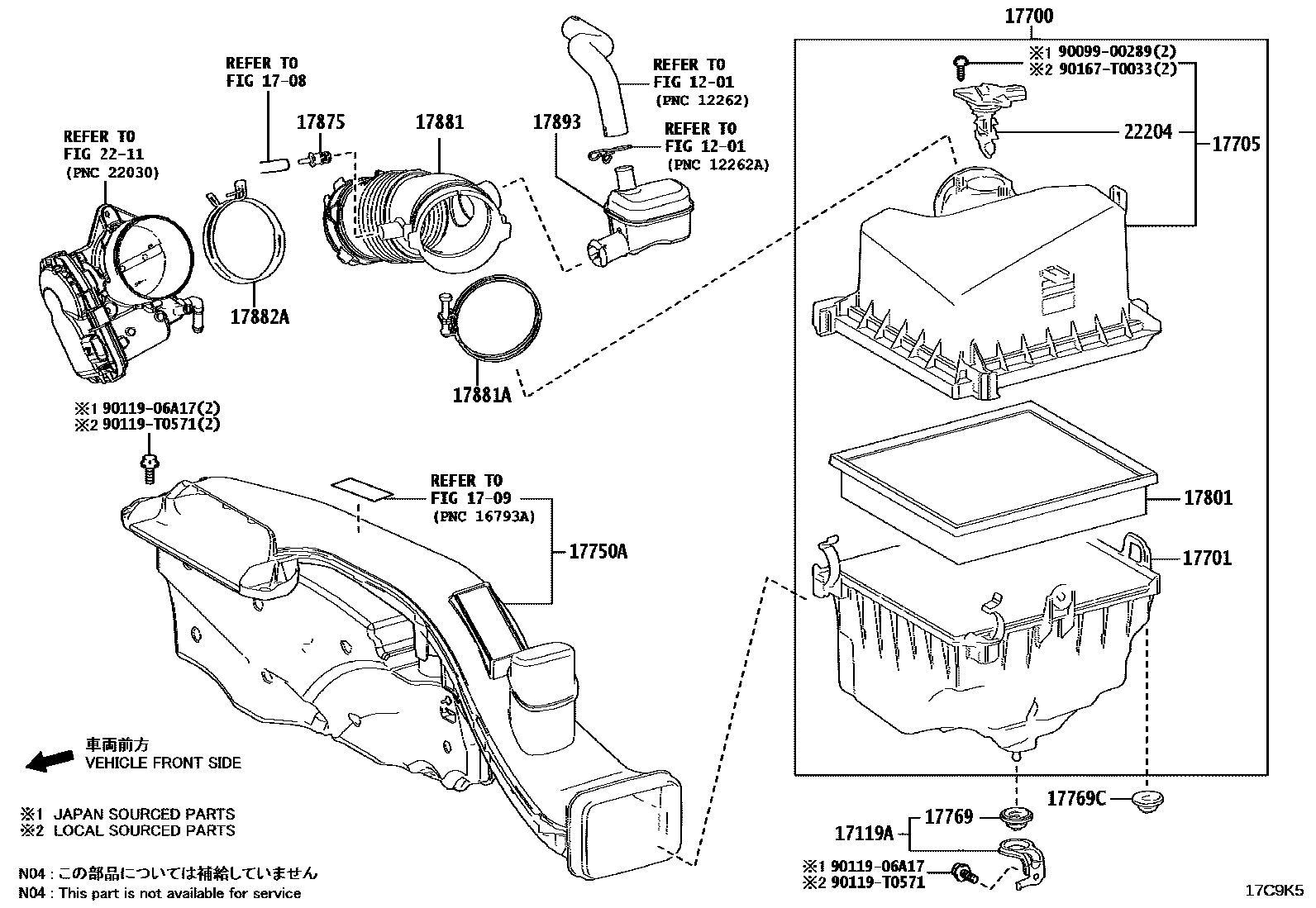

AIR CLEANER

0001 1 0002 1 0003 1

1201

1708

1709

17119ABRACKET, AIR CLEANER

main17119-F0040iM20..MXVA80202410

17700CLEANER ASSY, AIR

main17700-25151iM20..MXVA80202410

main17700-25250iA25..AXVH80202410

main17700-F0030iA25..AXVA80202410

17701CASE SUB-ASSY, AIR CLEANER

main17701-25081iA25..AXVH80202410

main17701-25101iM20..MXVA80202410

main17701-F0050iA25..AXVA80202410

17705CAP SUB-ASSY, AIR CLEANER

main17705-25050iM20..MXVA80202410

main17705-25110iA25..AXVH80202410

main17705-F0060iA25..AXVA80202410

17750AINLET ASSY, AIR CLEANER

main17750-24020iM20..MXVA80202410

main17750-25010iA25..AXVA80202410

main17750-F0040iA25..AXVH80202410

17769SUPPORT, AIR CLEANER

main17769-25020iM20..MXVA80202410

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iA25..AXVA80202410

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25..AXVA80202410

main17801-77050iA25..AXVH80202410

17875PIPE, INTAKE AIR CONNECTOR

main17875-25010iA25..AXVA80202410

main17875-31010iM20..MXVA80202410

17881HOSE, AIR CLEANER, NO.1

main17881-25020iA25..AXVA80202410

main17881-F0040iA25..AXVH80202410

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25..AXVH80202410

main96111-10880iA25..AXVA80202410

main96111-20800iM20..MXVA80202410

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25..AXVH80202410

main90466-71001iA25..AXVA80202410

main96111-10880iM20..MXVA80202410

17893RESONATOR, INTAKE AIR

main17893-25040iA25..AXVA80202410

main17893-F0060iA25..AXVH80202410

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iA25..AXVH80202410

main22204-75040iA25..AXVA80202410

9009900289

main90099-00289

9011906A17

main90119-06A17

90119T0571

main90119-T0571

90167T0033

main90167-T0033

22 parts on this diagram · 3 diagrams in section
