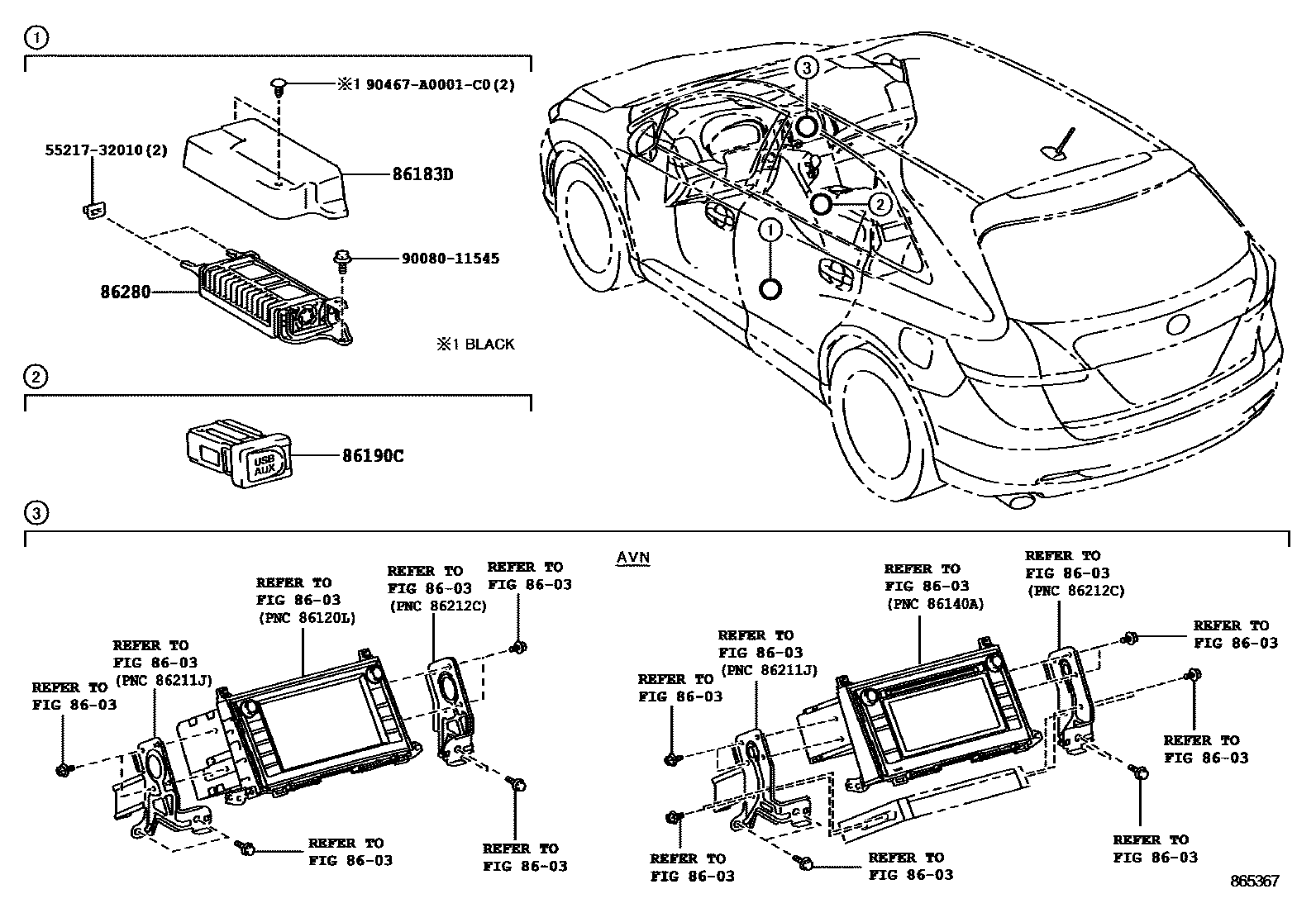

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8603

86183DCOVER, AUDIO AMPLIFIER

main86183-0T010iAGV1#201303-201408

AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)

main86183-0T010iAGV1#201303-201506

RUSSIA SPEC&AUDIO-*DA & 13SPEAKER

main86183-0T010iAGV1#201408-201506

AUDIO-AVN JBL 13SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0E030iAGV1#201303-201506

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0T020iAGV1#201303-201408

AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITHOUT(VOICE NAVIGATION)

main86280-0T020iAGV1#201303-201506

RUSSIA SPEC&AUDIO-*DA & 13SPEAKER

main86280-0T020iAGV1#201408-201506

AUDIO-AVN JBL 13SPEAKER

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9008011545

main90080-11545

90467A0001C0

main90467-A0001C0

7 parts on this diagram · 2 diagrams in section
