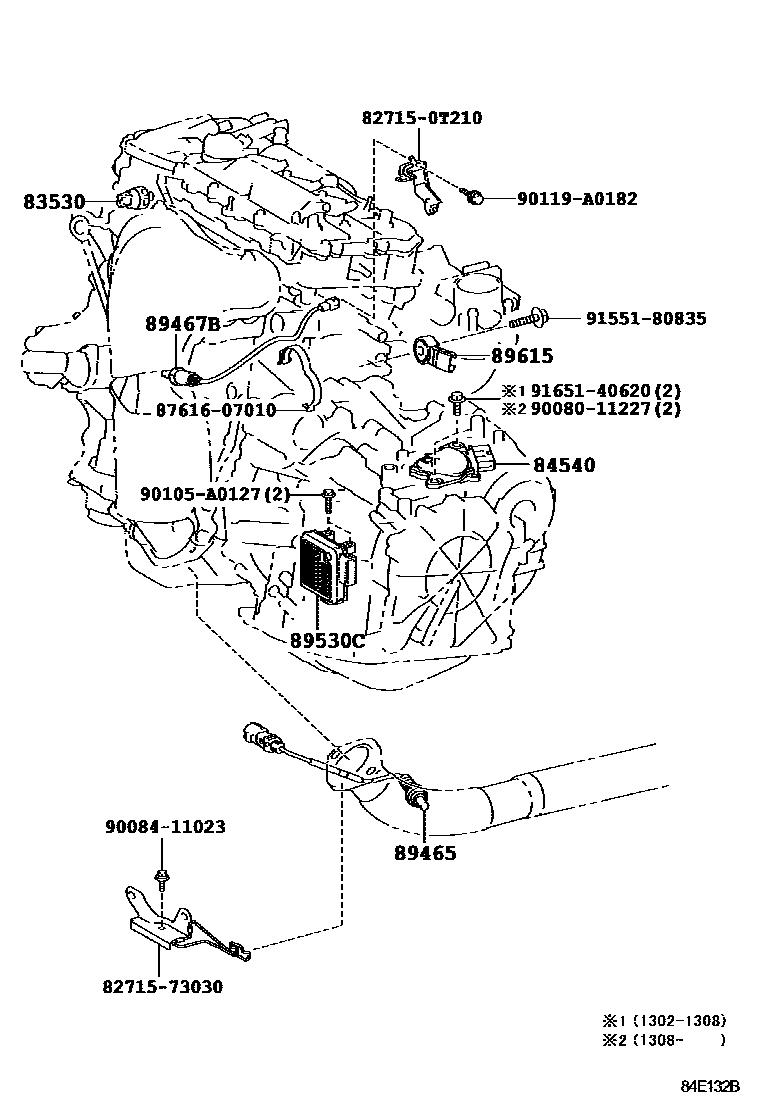

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1INSTRUMENTO PANEL 0006 1SRTEERING 0007 1SEAT 0008 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iAGV1#201303-201506

(L)

main83530-28020iAGV1#201303-201506

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-07010iAGV1#201308-201506

main84540-33010iAGV1#201303-201308

89465SENSOR, OXYGEN

main89465-0T020iAGV1#201303-201506

89467BSENSOR, AIR FUEL RATIO

main89467-06120iAGV1#201303-201506

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-0T090iAGV1#201303-201506

89615SENSOR, KNOCK CONTROL

main89615-20090iAGV1#201303-201506

827150T210BRACKET,WIRING HARNESS CLAMP

main82715-0T210

8271573030BRACKET,WIRING HARNESS CLAMP

main82715-73030

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011227

main90080-11227

9008411023

main90084-11023

90105A0127

main90105-A0127

90119A0182

main90119-A0182

9155180835

main91551-80835

9165140620

main91651-40620

15 parts on this diagram · 8 diagrams in section
