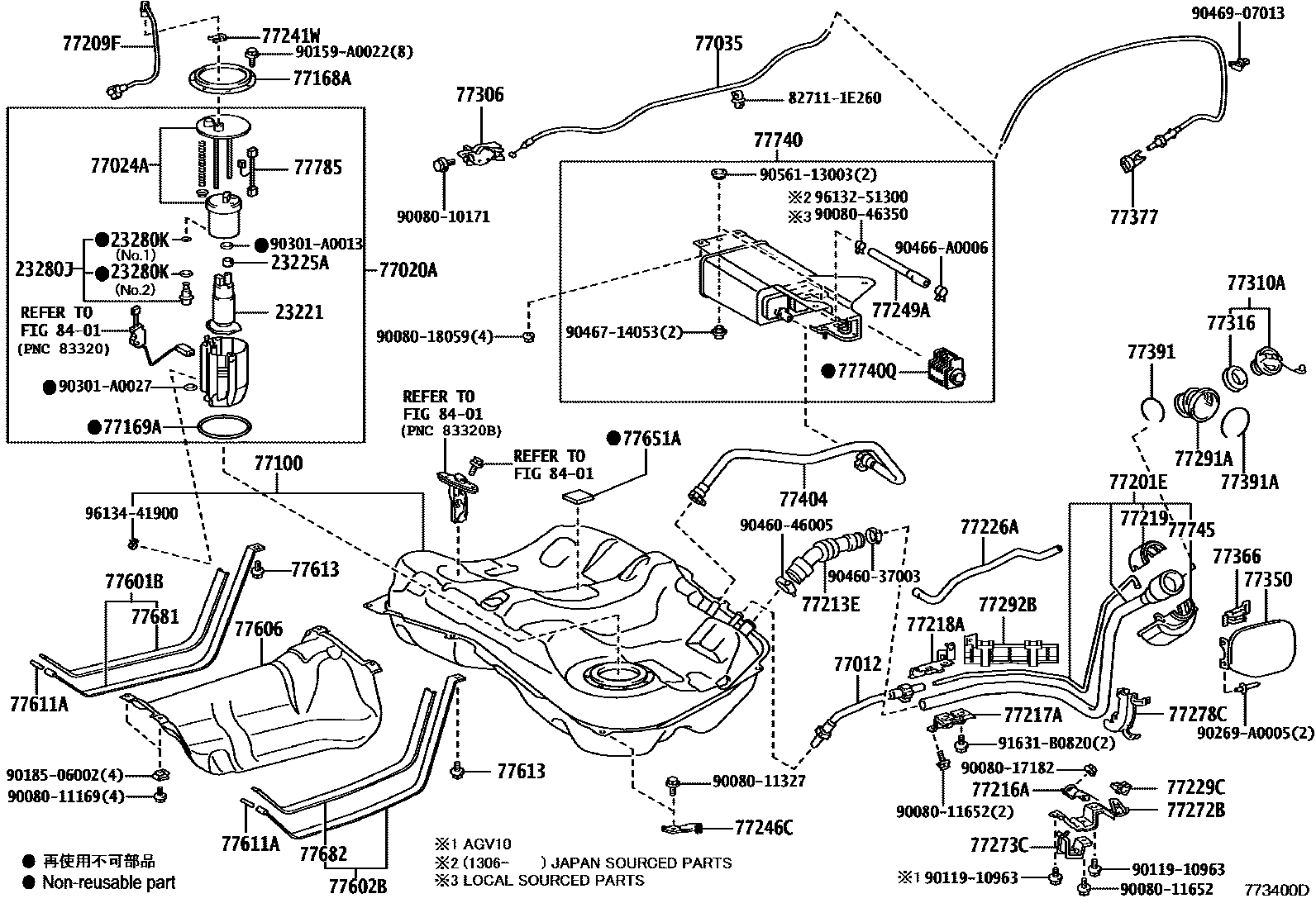

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
(L)
(J)
77249AHOSE, FUEL EMISSION
77273CSUPPORT, BREATHER TUBE, NO.2
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77292BSHIELD, FUEL TANK DRAIN PLUG
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77613BOLT, FUEL TANK BAND SET
(J)
(L)
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77740CANISTER ASSY, CHARCOAL
77745FILTER, CHARCOAL CANISTER, NO.1
77785HARNESS, FUEL PUMP
8401
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
9008010171
main90080-10171
9008011169
main90080-11169
9008011327
main90080-11327
9008011652
main90080-11652
9008017182
main90080-17182
9008018059
main90080-18059
9008046350
main90080-46350
9011910963
main90119-10963
90159A0022
main90159-A0022
9018506002
main90185-06002
90269A0005
main90269-A0005
90301A0013
main90301-A0013
90301A0027
main90301-A0027
9046037003
main90460-37003
9046046005
main90460-46005
90466A0006
main90466-A0006
9046714053
main90467-14053
9046907013
main90469-07013
9056113003
main90561-13003
91631B0820
main91631-B0820
9613251300
main96132-51300
9613441900
main96134-41900
73 parts on this diagram · 2 diagrams in section
