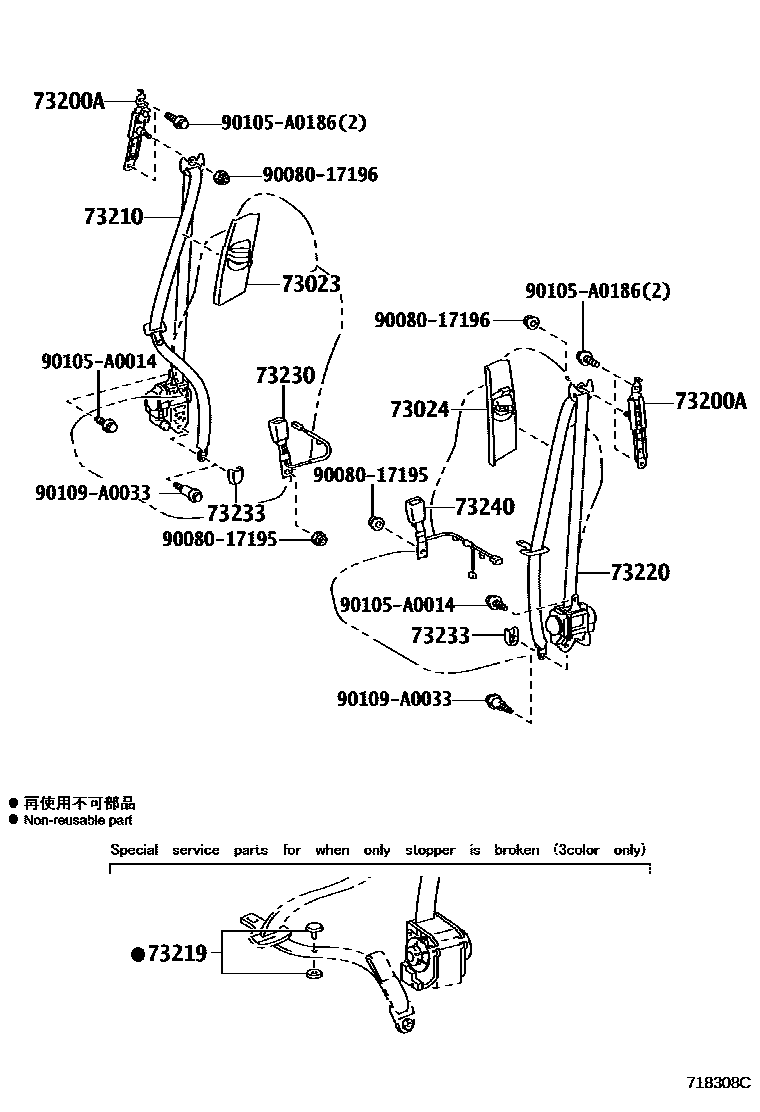

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06030-A0iAGV1#201303-201506

IVORY,TRIM0#

main73023-06030-B1iAGV1#201303-201506

LT.GRAY,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06030-A0iAGV1#201303-201506

IVORY,TRIM0#

main73024-06030-B1iAGV1#201303-201506

LT.GRAY,TRIM1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iAGV1#¥4,410201303-201506

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0T020-A0iAGV1#201303-201506

IVORY,TRIM0#

main73210-0T020-B0iAGV1#201303-201506

LT.GRAY,TRIM1#

main73210-0T020-C0iAGV1#201303-201506

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iAGV1#¥80201303-201506

BLACK,BLACK

main73219-02020iAGV1#¥80201303-201506

GRAY,GRAY

main73219-02030iAGV1#¥80201303-201506

BEIGE,BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0T020-A0iAGV1#201303-201506

IVORY,TRIM0#

main73220-0T020-B0iAGV1#201303-201506

LT.GRAY,TRIM1#

main73220-0T020-C0iAGV1#201303-201506

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0C160-A0iAGV1#201303-201506

IVORY,TRIM0#

main73230-0C160-B1iAGV1#201303-201506

LT.GRAY,TRIM1#

main73230-0C160-C0iAGV1#201303-201506

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-A0iAGV1#201303-201506

IVORY,TRIM0#

main73233-0C010-B1iAGV1#201303-201506

LT.GRAY,TRIM1#

main73233-0C010-C0iAGV1#201303-201506

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-0T040-A0iAGV1#201303-201506

IVORY,TRIM0#

main73240-0T040-B0iAGV1#201303-201506

LT.GRAY,TRIM1#

main73240-0T040-C0iAGV1#201303-201506

BLACK,TRIM2#

9008017195

main90080-17195

9008017196

main90080-17196

90105A0014

main90105-A0014

90105A0186

main90105-A0186

90109A0033

main90109-A0033

14 parts on this diagram · 2 diagrams in section
