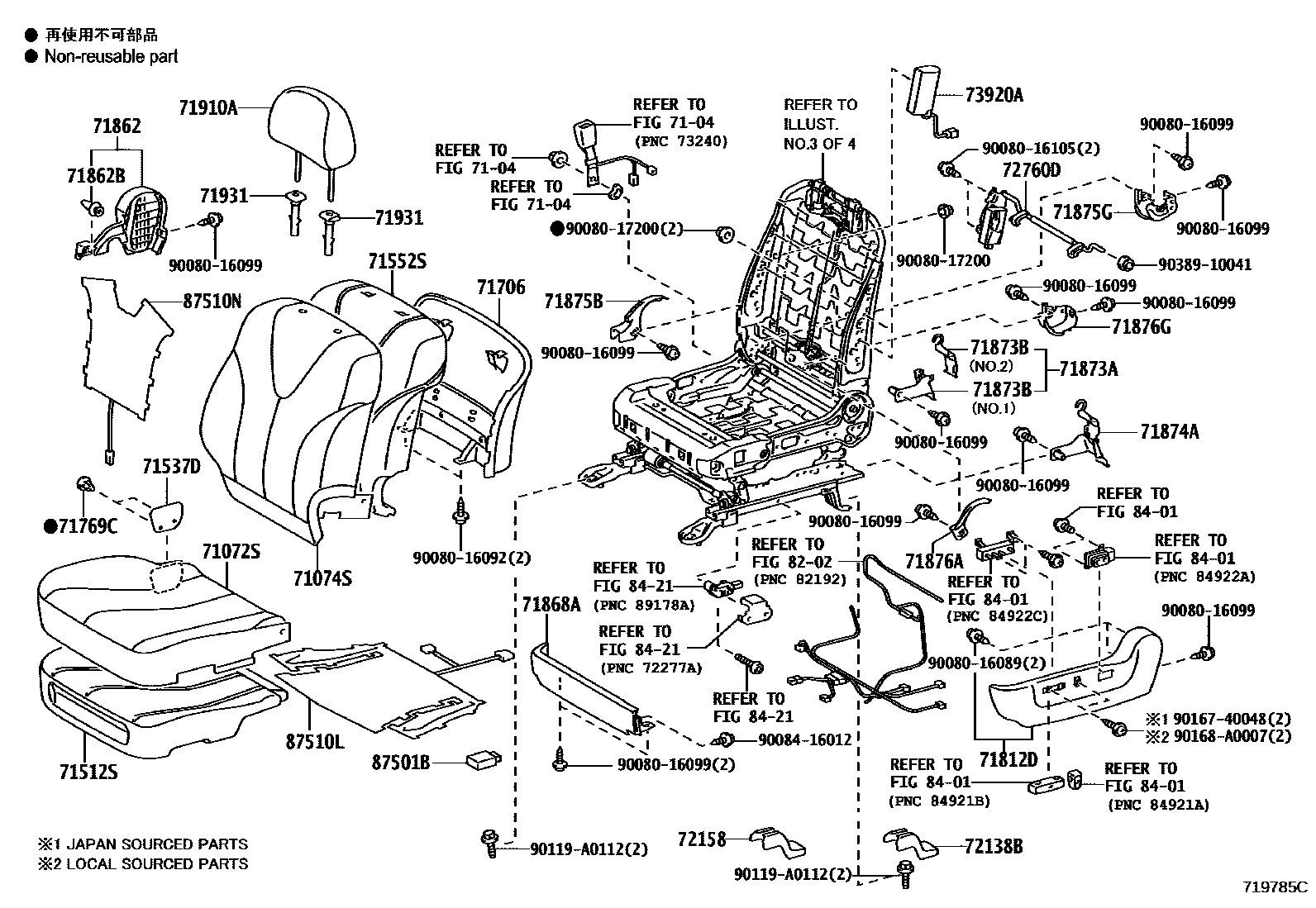

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1PASSENGER SIDE 0003 1DRIVER SIDE 0004 1PASSENGER SIDE

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0T043-A1iAGV1#201303-201408

IVORY,TRIM0#

sub71072-0T044

main71072-0T043-B1iAGV1#201303-201408

LT. GRAY,TRIM1#

sub71072-0T044

main71072-0T043-C0iAGV1#201303-201408

BLACK,TRIM2#

sub71072-0T044

main71072-0T044-A2iAGV1#201408-201506

IVORY,TRIM0#

main71072-0T044-B2iAGV1#201408-201506

LT. GRAY,TRIM1#

main71072-0T044-C0iAGV1#201408-201506

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0T041-A1iAGV1#201303-201408

IVORY,TRIM0#

sub71074-0T042

main71074-0T041-B1iAGV1#201303-201408

BLACK,TRIM2#

sub71074-0T042

main71074-0T041-B2iAGV1#201303-201408

LT.GRAY,TRIM1#

sub71074-0T042

main71074-0T042-A2iAGV1#201408-201506

IVORY,TRIM0#

main71074-0T042-B1iAGV1#201408-201506

BLACK,TRIM2#

main71074-0T042-B3iAGV1#201408-201506

LT. GRAY,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0T010iAGV1#201303-201506

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-0T010iAGV1#201303-201506

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0T010iAGV1#201303-201506

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-06010-A2iAGV1#201303-201506

IVORY,TRIM0#

main71706-06010-B4iAGV1#201303-201506

LIGHT GRAY,TRIM1#

main71706-06010-C2iAGV1#201303-201506

BLACK,TRIM2#

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-60010-A0iAGV1#201303-201506

IVORY,TRIM0#

sub71769-60010

main71769-60010-C0iAGV1#201303-201506

BLACK,TRIM2#

sub71769-60010

main71769-60010-P1iAGV1#201303-201506

LT.GRAY,TRIM1#

sub71769-60010

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0T010-A0iAGV1#201303-201506

IVORY,TRIM0#

main71812-0T010-B0iAGV1#201303-201506

LT.GRAY,TRIM1#

main71812-0T010-C0iAGV1#201303-201506

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06060-A0iAGV1#201303-201506

IVORY,TRIM0#

main71862-06060-B2iAGV1#201303-201506

LT.GRAY,TRIM1#

main71862-06060-C0iAGV1#201303-201506

BLACK,TRIM2#

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main67921-50050-B0iAGV1#201303-201506

LT.GRAY

sub67921-50050

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-06040-A0iAGV1#201303-201506

IVORY,TRIM0#

main71868-06040-B2iAGV1#201303-201506

LT.GRAY,TRIM1#

main71868-06040-C0iAGV1#201303-201506

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06040iAGV1#201303-201506

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71806-0C020-C0iAGV1#201303-201506

BLACK

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-0C080-C0iAGV1#201303-201506

BLACK,NO.1

main71873-0C090-C0iAGV1#201303-201506

BLACK,NO.2

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06070iAGV1#201303-201506

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71806-07020iAGV1#201303-201506

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-AA090-A0iAGV1#201303-201506

IVORY,TRIM0#

main71876-AA090-B4iAGV1#201303-201506

LT.GRAY,TRIM1#

main71876-AA090-C0iAGV1#201303-201506

BLACK,TRIM2#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71814-0E020iAGV1#201303-201506

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-AA090-A0iAGV1#201303-201506

IVORY,TRIM0#

main71875-AA090-B2iAGV1#201303-201506

LT.GRAY,TRIM1#

main71875-AA090-C0iAGV1#201303-201506

BLACK,TRIM2#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71875-0E020-A0iAGV1#201303-201506

IVORY,TRIM0#

main71875-0E020-B0iAGV1#201303-201506

LT.GRAY,TRIM1#

main71875-0E020-C0iAGV1#201303-201506

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71813-0E020iAGV1#201303-201506

71910AHEADREST ASSY, FRONT SEAT

main71910-0T030-A0iAGV1#201303-201408

IVORY,TRIM0#

sub71910-0T031

main71910-0T030-B0iAGV1#201303-201408

LT. GRAY,TRIM1#

sub71910-0T031

main71910-0T030-C0iAGV1#201303-201408

BLACK,TRIM2#

sub71910-0T031

main71910-0T031iAGV1#201408-201506

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-A0iAGV1#201303-201506

W(LOCK),IVORY,TRIM0#

sub71930-44020

sub71930-02370

main71930-44020-B8iAGV1#201303-201506

W(LOCK),LT.GRAY,TRIM1#

sub71930-44020

sub71930-02370

main71930-44020-C0iAGV1#201303-201506

W(LOCK),BLACK,TRIM2#

sub71930-44020

sub71930-02370

main71931-47010-A0iAGV1#201303-201506

W/O(LOCK),IVORY,TRIM0#

sub71931-47010

sub71931-42020

main71931-47010-C0iAGV1#201303-201506

W/O(LOCK),BLACK,TRIM2#

sub71931-47010

sub71931-42020

main71931-47010-P3iAGV1#201303-201506

W/O(LOCK),LT.GRAY,TRIM1#

sub71931-47010

sub71931-42020

72138BCOVER, SEAT TRACK, LH

main72138-0T020-C0iAGV1#201303-201506

BLACK,TRIM0#,1#,2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-0T010-C0iAGV1#201303-201506

BLACK,TRIM0#,1#,2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-0E010iAGV1#201303-201506

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0T010iAGV1#201303-201506

8202

8401

8421

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-0T010iAGV1#201303-201408

main87501-0T011iAGV1#201408-201506

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-0T011iAGV1#201303-201408

main87510-0T012iAGV1#201408-201506

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-0T010iAGV1#201303-201407

sub87530-0T011

main87530-0T011iAGV1#201408-201506

9008016089

main90080-16089

9008016092

main90080-16092

9008016099

main90080-16099

9008016105

main90080-16105

9008017200

main90080-17200

9008416012

main90084-16012

90119A0112

main90119-A0112

9016740048

main90167-40048

90168A0007

main90168-A0007

9038910041

main90389-10041

44 parts on this diagram · 4 diagrams in section
