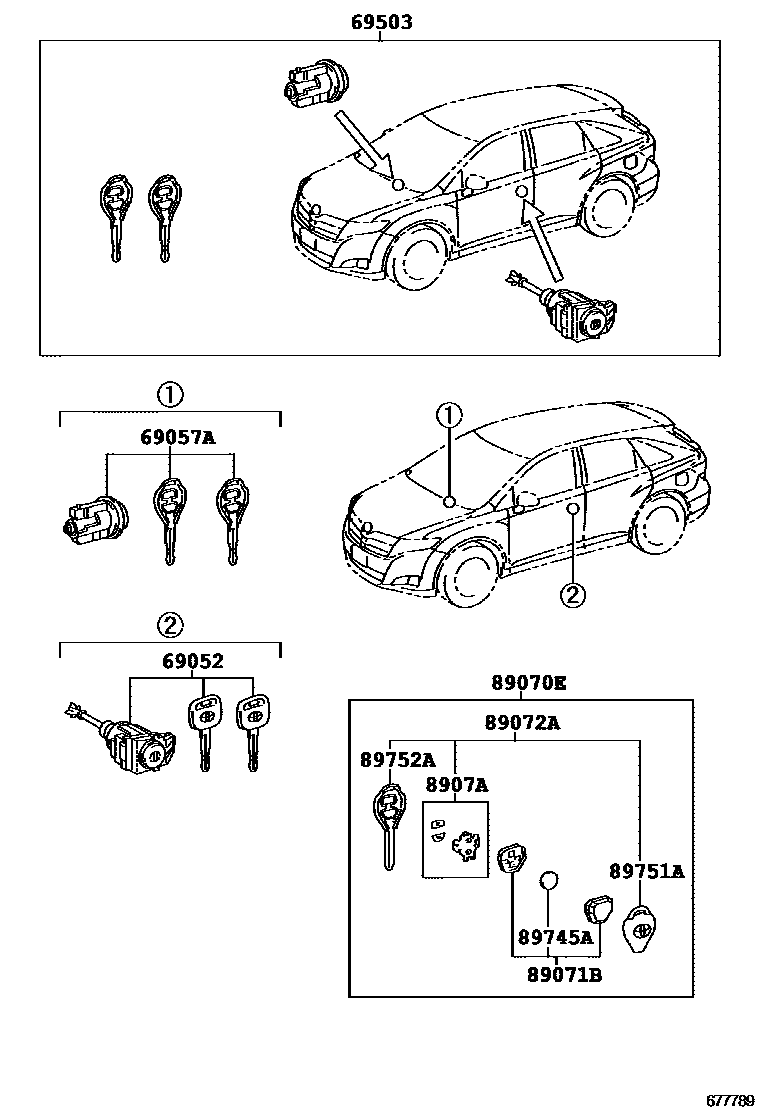

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
89070ETRANSMITTER ASSY, DOOR CONTROL
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
8907ASWITCH SET, TRANSMITTER
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89745ABATTERY, TRANSMITTER
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89751ACOVER, TRANSMITTER HOUSING
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89752ACASE, TRANSMITTER HOUSING
WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)
RUSSIA SPEC&WITH(SMART KEY)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
10 parts on this diagram · 2 diagrams in section
