DECK BOARD & DECK TRIM COVER

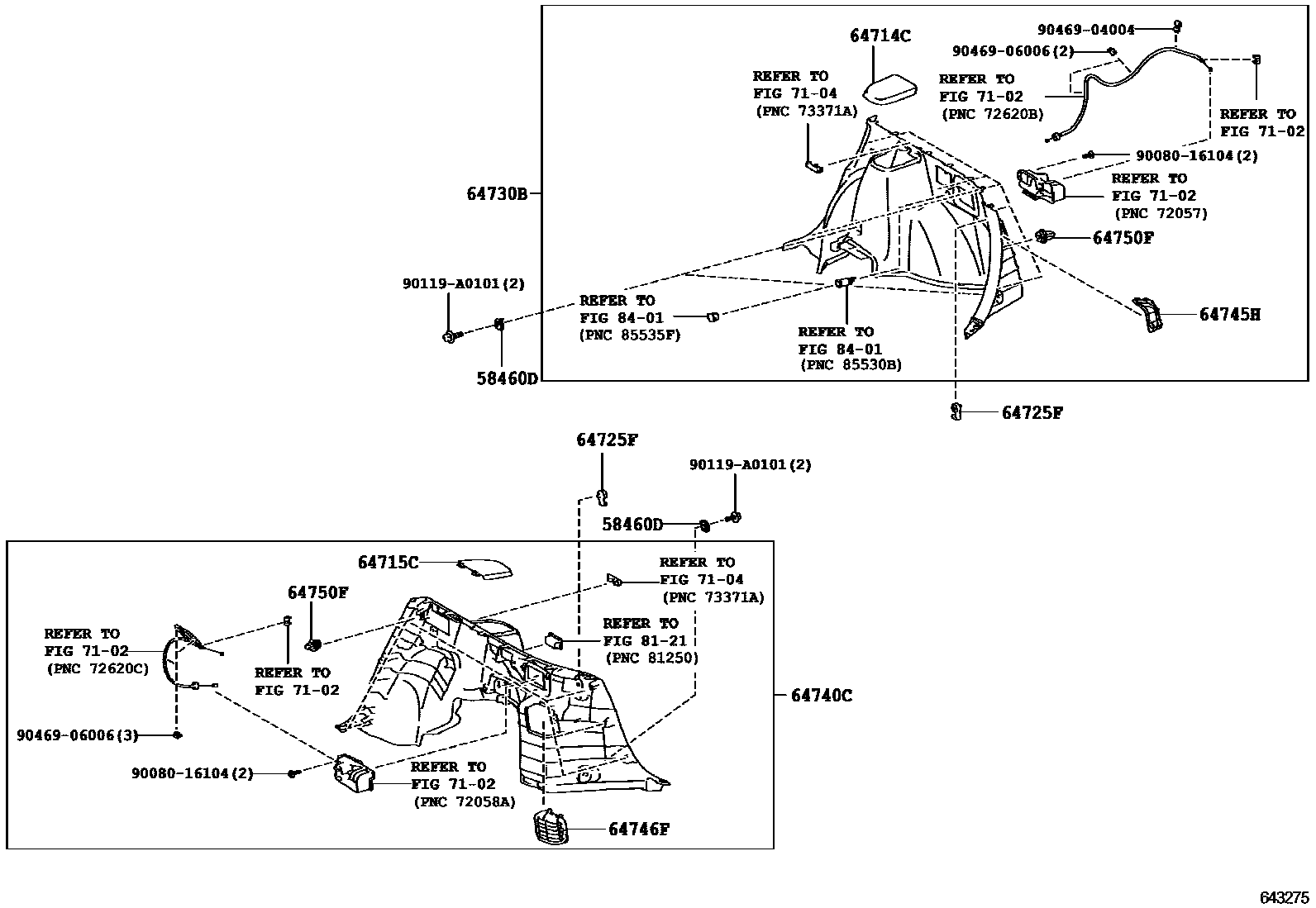

Parts diagram

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020i¥620201303-201506

64714CCOVER, DECK SIDE TRIM, RH

main64714-0T010-A0i201303-201506

IVORY,TRIM0#

main64714-0T010-B0i201303-201506

LT.GRAY,TRIM1#

main64714-0T010-C0i201303-201506

BLACK,TRIM2#

64715CCOVER, DECK SIDE TRIM, LH

main64715-0T010-A0i201303-201506

IVORY,TRIM0#

main64715-0T010-B0i201303-201506

LT.GRAY,TRIM1#

main64715-0T010-C0i201303-201506

BLACK,TRIM2#

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-0T010-A0i201303-201506

IVORY,TRIM0#

main64725-0T010-B0i201303-201506

LT.GRAY,TRIM1#

main64725-0T010-C0i201303-201506

BLACK,TRIM2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0T011-A0i201303-201506

IVORY,TRIM0#

main64730-0T011-B0i201303-201506

LT.GRAY,TRIM1#

main64730-0T011-C0i201303-201506

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0T011-A0i201303-201506

IVORY,TRIM0#

main64740-0T011-B0i201303-201506

LT.GRAY,TRIM1#

main64740-0T011-C0i201303-201506

BLACK,TRIM2#

64745HHOLDER, DECK SIDE TRIM CUP, RH

main64745-0T010-A0i201303-201506

IVORY,TRIM0#

main64745-0T010-B0i201303-201506

LT.GRAY,TRIM1#

main64745-0T010-C0i201303-201506

BLACK,TRIM2#

64746FHOLDER, DECK SIDE TRIM CUP, LH

main64746-0T010-A0i201303-201506

IVORY,TRIM0#

main64746-0T010-B0i201303-201506

LT.GRAY,TRIM1#

main64746-0T010-C0i201303-201506

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-A0006i¥80201303-201506

7102

7104

8121

8401

9008016104

main90080-16104

90119A0101

main90119-A0101¥110

9046904004

main90469-04004¥70

9046906006

main90469-06006¥170

17 parts on this diagram · 2 diagrams in section
