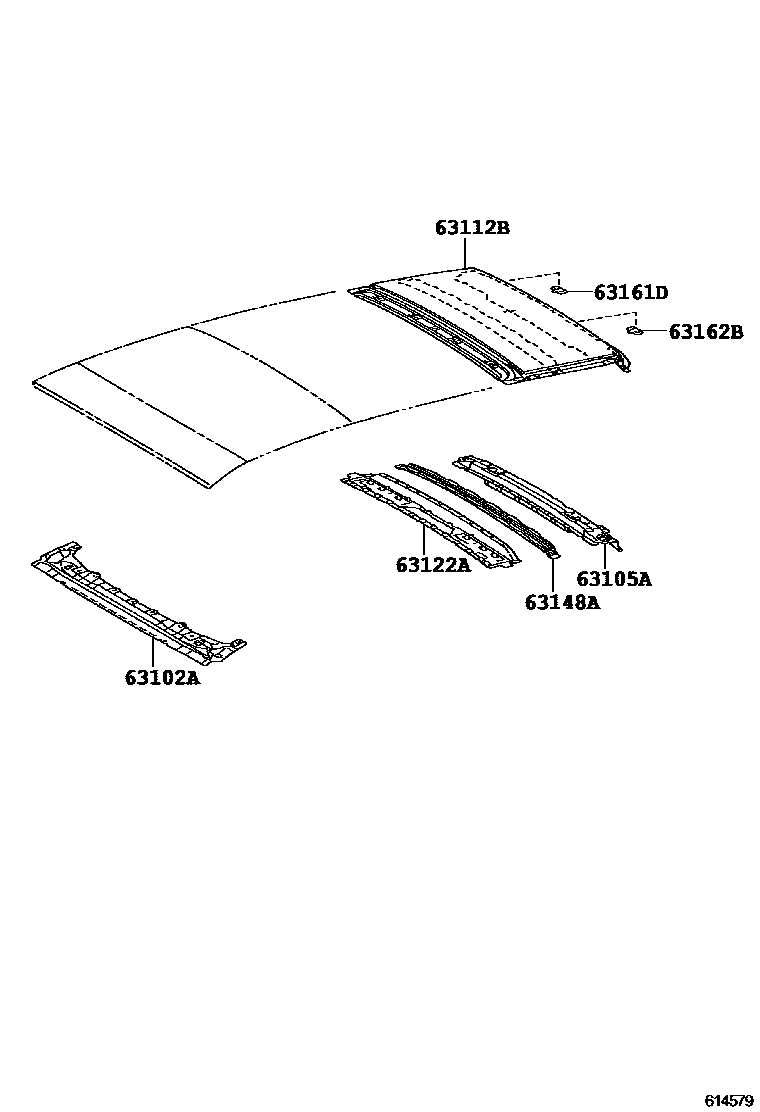

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0T902iAGV1#201303-201506

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0T010iAGV1#201303-201407

sub63105-0T011

main63105-0T011iAGV1#201408-201506

63112BPANEL, ROOF, REAR

main63113-0T010iAGV1#201303-201506

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-0T010iAGV1#201303-201506

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0T010iAGV1#201303-201506

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-01010iAGV1#201303-201506

63162BPLATE, ROOF HEADER PANEL, NO.2

main63162-01010iAGV1#201303-201506

7 parts on this diagram · 2 diagrams in section
