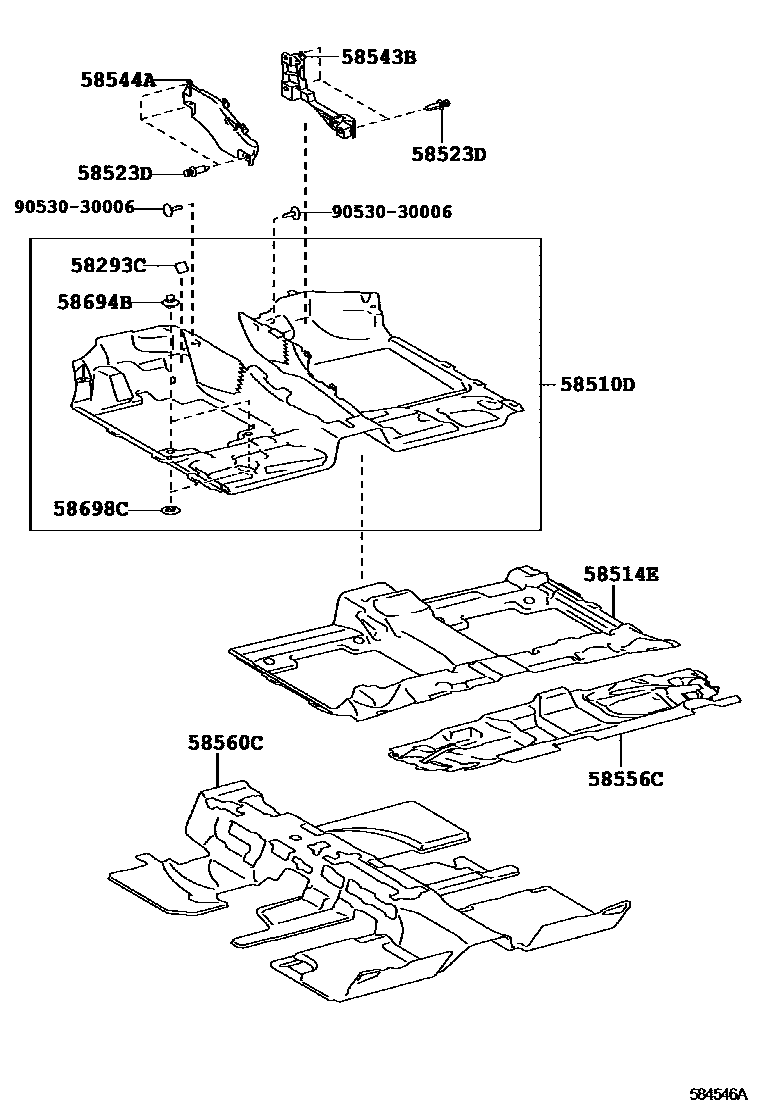

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
58514ECARPET, FLOOR, REAR
BLACK,TRIM0#,1#,2#
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
BLACK
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58556CSILENCER, REAR FLOOR
BLACK,TRIM0#,1#,2#
58560CCARPET ASSY, NO.3 SEAT LEG SPACE
9053030006
main90530-30006
11 parts on this diagram · 1 diagram in section
