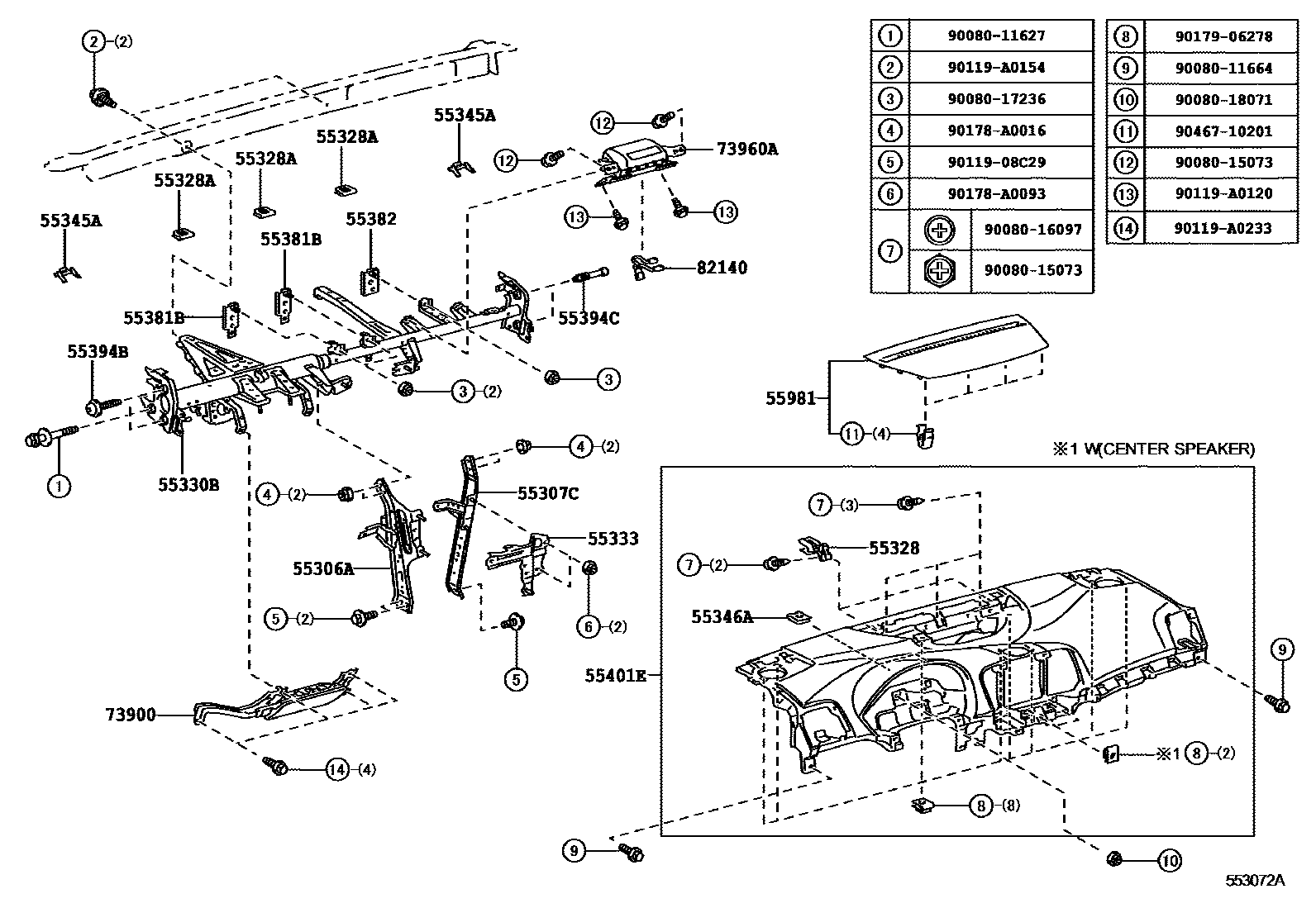

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55328PIN, INSTRUMENT PANEL, NO.1
55328ASTAY, INSTRUMENT PANEL, NO.3
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55333REINFORCEMENT, INSTRUMENT PANEL, NO.3
55345ACLIP, INSTRUMENT PANEL, NO.1
55346ACLIP, INSTRUMENT PANEL, NO.2
55381BBRACKET, FINISH PANEL MOUNTING, NO.1
55382BRACKET, FINISH PANEL MOUNTING, NO.2
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,1#,2#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,1#,2#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
82140WIRE ASSY, INSTRUMENT PANEL
9008011627
main90080-11627
9008011664
main90080-11664
9008015073
main90080-15073
9008016097
main90080-16097
9008017236
main90080-17236
9008018071
main90080-18071
9011908C29
main90119-08C29
90119A0120
main90119-A0120
90119A0154
main90119-A0154
90119A0233
main90119-A0233
90178A0016
main90178-A0016
90178A0093
main90178-A0093
9017906278
main90179-06278
9046710201
main90467-10201
31 parts on this diagram · 4 diagrams in section
