FLOOR SIDE MEMBER
51967EHOOK, TRANSPORT, REAR RH
5701
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57113EXTENSION, FRONT SIDE MEMBER, RH
sub57107-33031
57114EXTENSION, FRONT SIDE MEMBER, LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57167EGUSSET, FRONT CROSSMEMBER SIDE, RH
57168EGUSSET, FRONT CROSSMEMBER SIDE, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH
57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57513AREINFORCEMENT, FRONT FLOOR, LH
57535ABRACE, FRONT FLOOR, RH
57536ABRACE, FRONT FLOOR, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57653AMEMBER, REAR FLOOR CROSS, NO.2
90119A0309
main90119-A0309
90178A0044
main90178-A0044
91672L1035
main91672-L1035

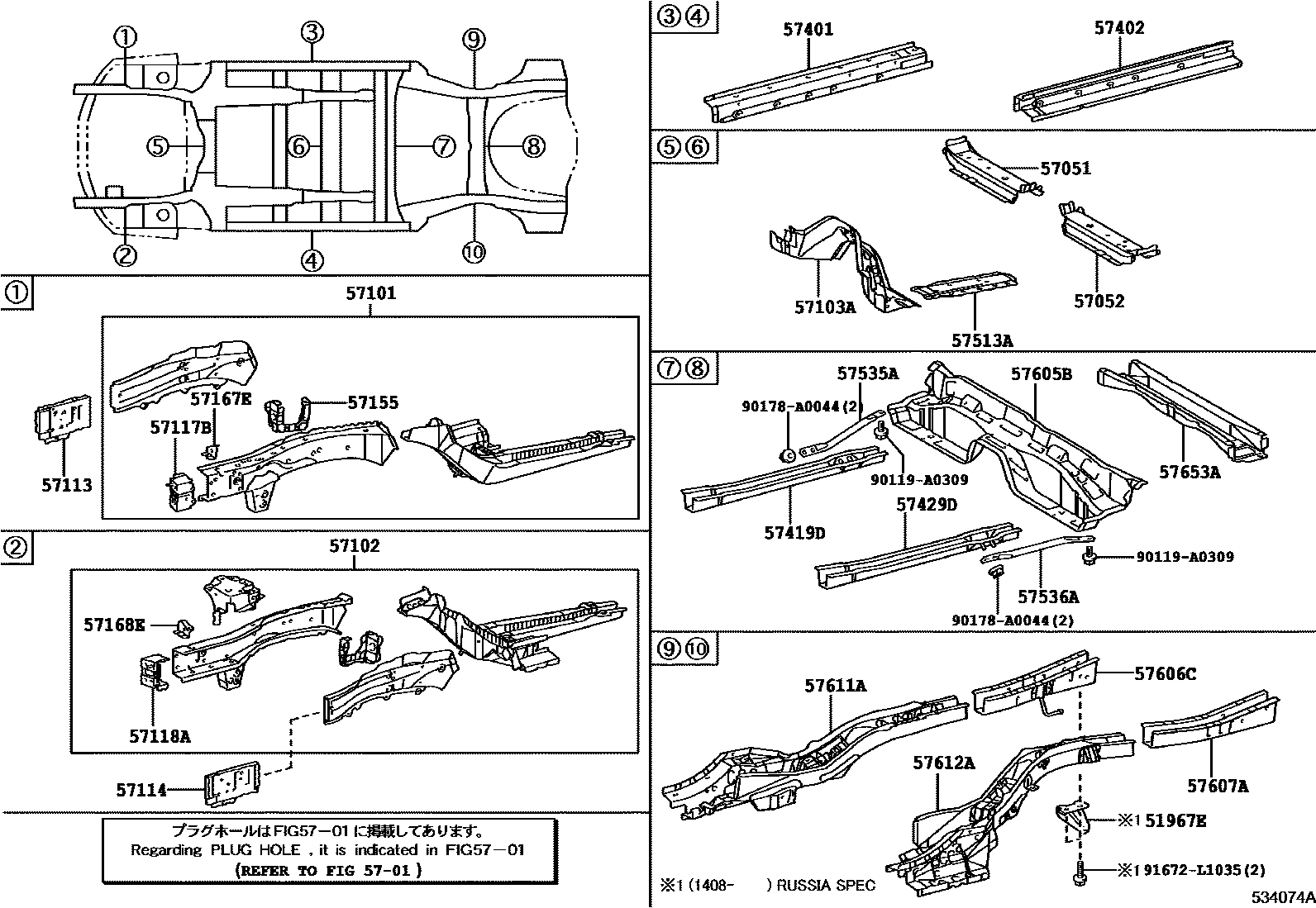

30 parts on this diagram · 1 diagram in section
