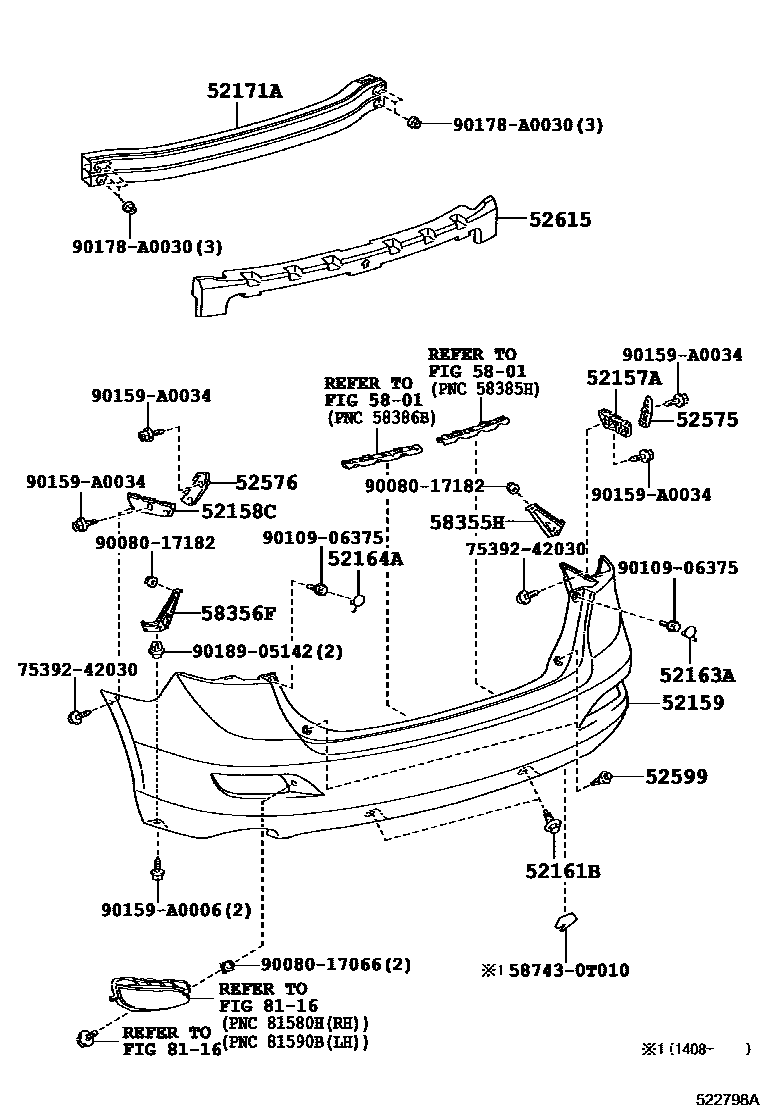

REAR BUMPER & BUMPER STAY
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
5801
58355HBRACKET, REAR BUMPER ARM, RH
58356FBRACKET, REAR BUMPER ARM, LH
8116
587430T010PROTECTER, SLIDE DOOR PANEL, RH
main58743-0T010
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
9008017066
main90080-17066
9008017182
main90080-17182
9010906375
main90109-06375
90159A0006
main90159-A0006
90159A0034
main90159-A0034
90178A0030
main90178-A0030
9018905142
main90189-05142
24 parts on this diagram · 1 diagram in section
