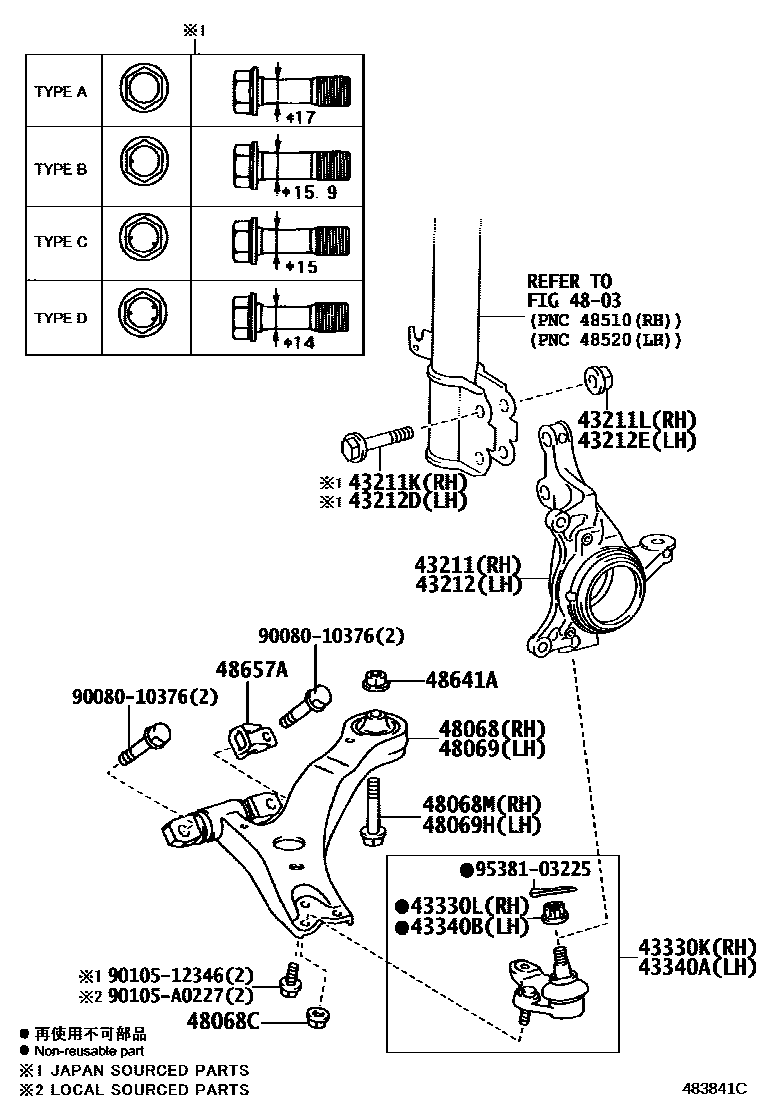

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,TYPE A:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,TYPE A:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
sub48068-0E050
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
sub48069-0E050
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
48657ASTOPPER, FRONT LOWER ARM BUSH
9008010376
main90080-10376
9010512346
main90105-12346
90105A0227
main90105-A0227
9538103225
main95381-03225
22 parts on this diagram · 1 diagram in section
