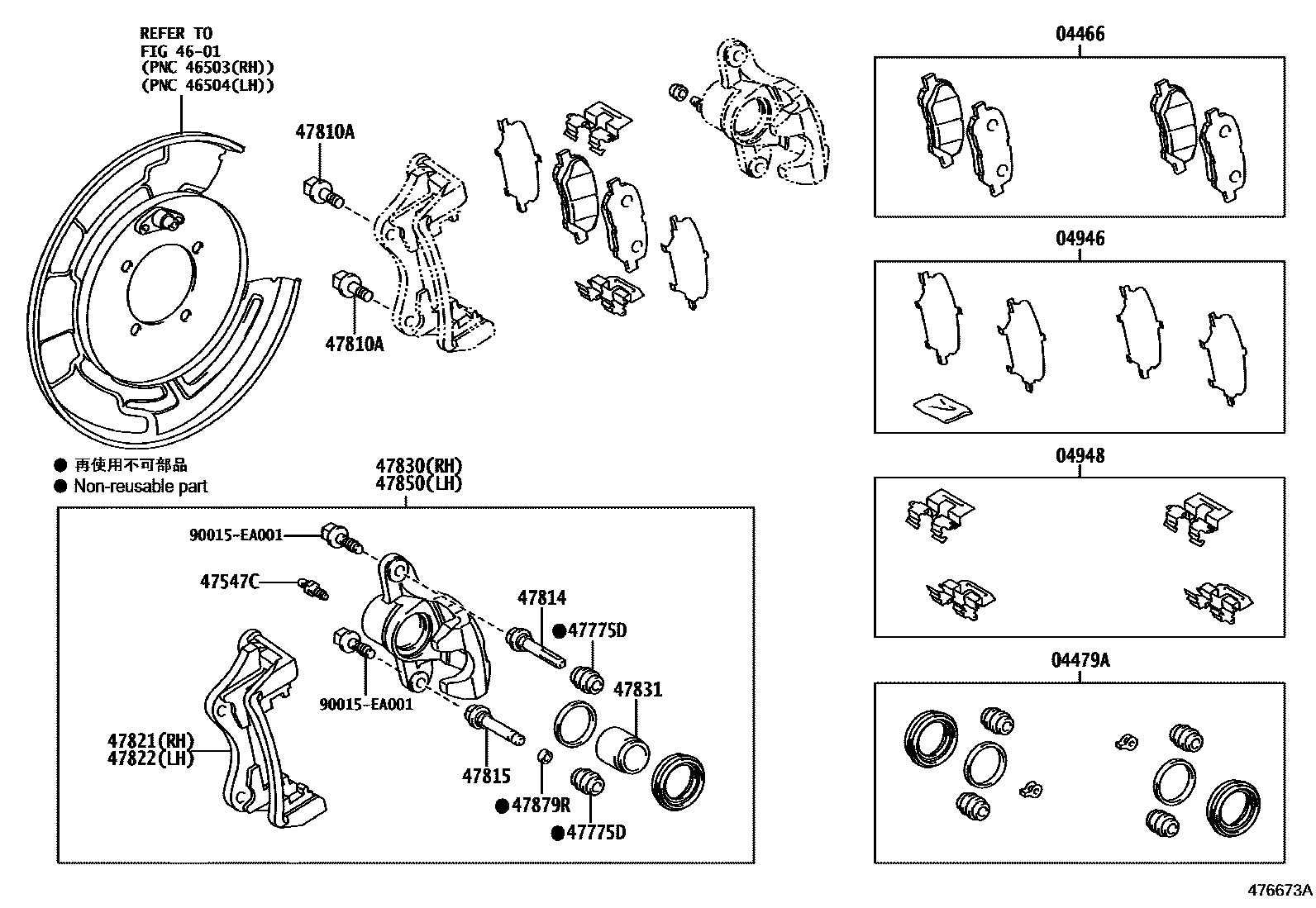

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK PA561H
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47821MOUNTING, REAR DISC BRAKE CYLINDER, RH
47822MOUNTING, REAR DISC BRAKE CYLINDER, LH
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47831PISTON, REAR DISC BRAKE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
47879RBUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
90015EA001
main90015-EA001
17 parts on this diagram · 1 diagram in section
