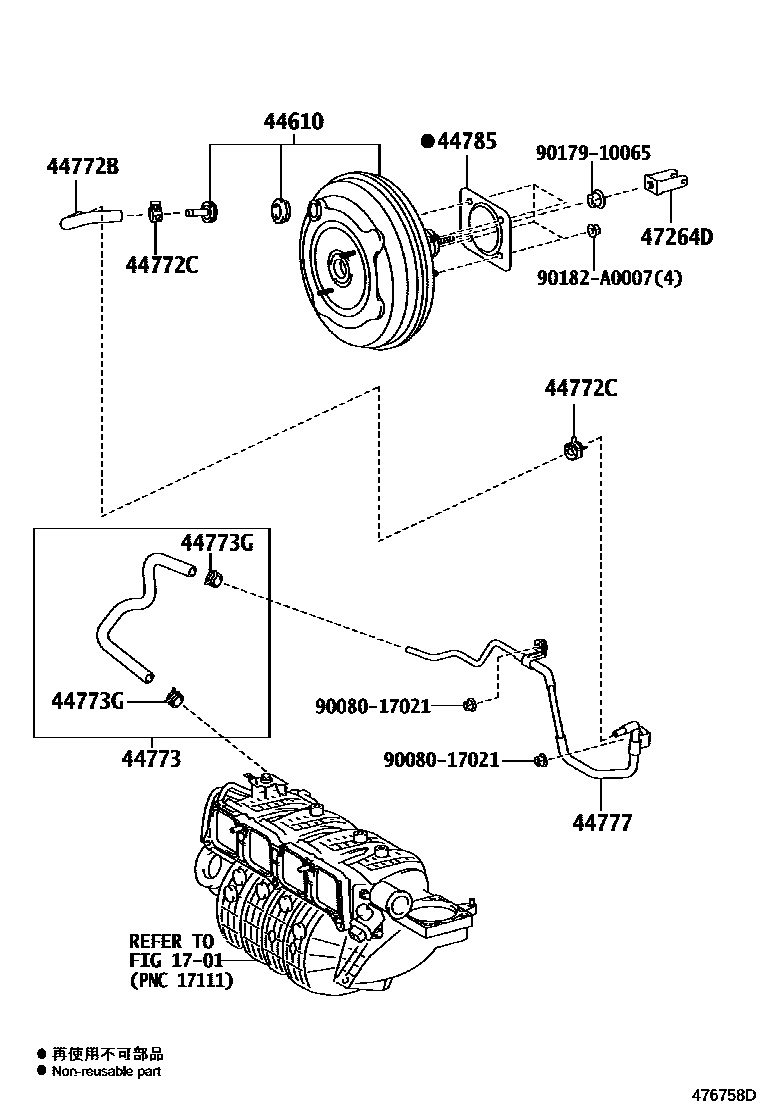

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-0T030iAGV1#201303-201506

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-0T020iAGV1#201303-201506

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90466-A0003iAGV1#201303-201506

44773HOSE, VACUUM, NO.2

main44770-0T030iAGV1#201303-201506

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-A0003iAGV1#201303-201506

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-0T010iAGV1#201303-201506

44785GASKET, BRAKE BOOSTER

main44785-07010iAGV1#201303-201506

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-48020iAGV1#201303-201506

9008017021

main90080-17021

9017910065

main90179-10065

90182A0007

main90182-A0007

12 parts on this diagram · 1 diagram in section
