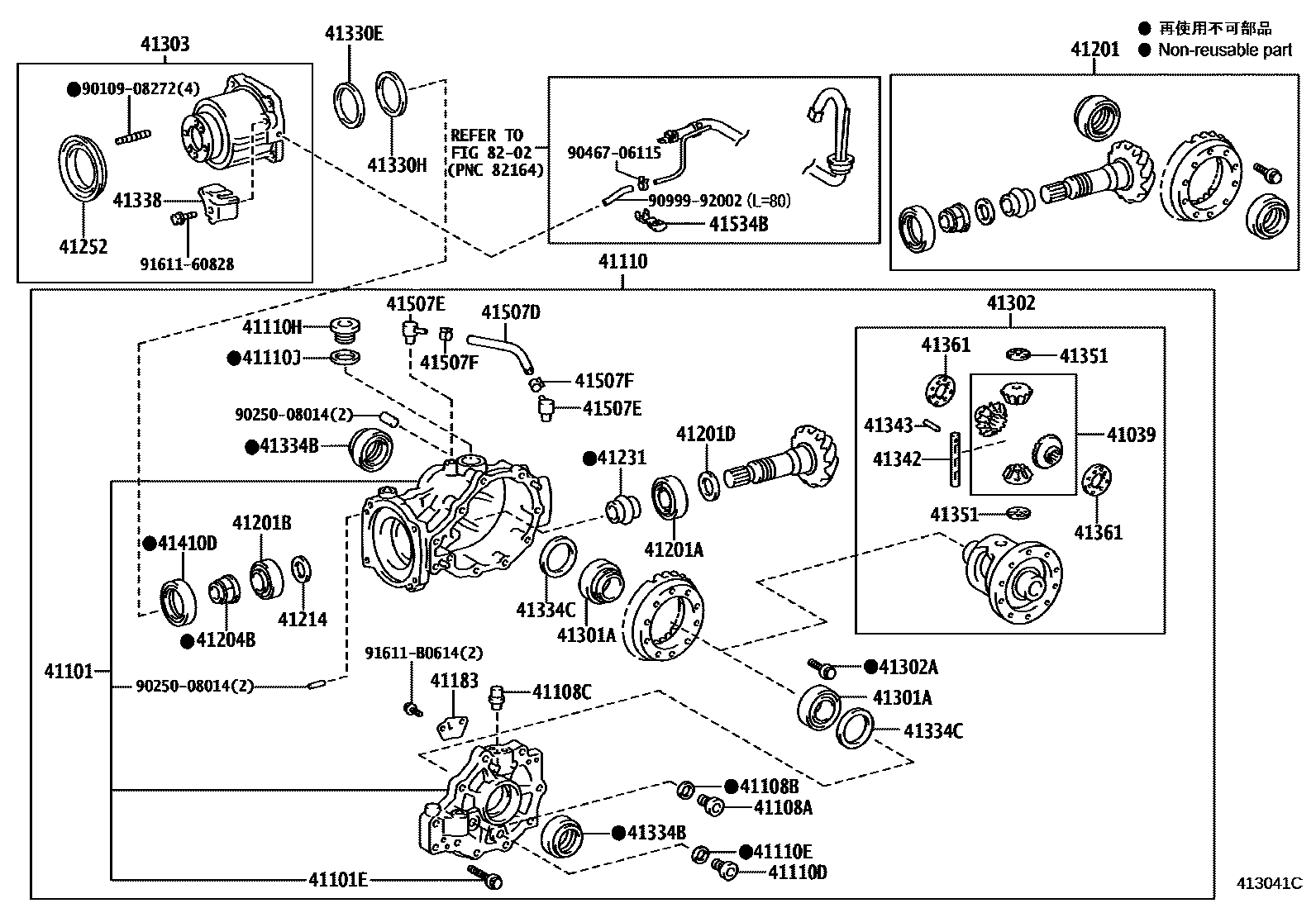

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
sub41039-48030
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:18=2.277
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:18=2.277
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.70,MARK 41
T=1.71,MARK 42
T=1.72,MARK 43
T=1.73,MARK 44
T=1.74,MARK 45
T=1.75,MARK 46
T=1.76,MARK 47
T=1.77,MARK 48
T=1.78,MARK 49
T=1.79,MARK 50
T=1.80,MARK 51
T=1.81,MARK 52
T=1.82,MARK 53
T=1.83,MARK 54
T=1.84,MARK 55
T=1.85,MARK 56
T=1.86,MARK 57
T=1.87,MARK 58
T=1.88,MARK 59
T=1.89,MARK 60
T=1.90,MARK 61
T=1.91,MARK 62
T=1.92,MARK 63
T=1.93,MARK 64
T=1.94,MARK 65
T=1.95,MARK 70
T=1.96,MARK 71
T=1.97,MARK 72
T=1.98,MARK 73
T=1.99,MARK 74
T=2.00,MARK 75
T=2.01,MARK 76
T=2.02,MARK 77
T=2.03,MARK 78
T=2.04,MARK 79
T=2.05,MARK 80
T=2.06,MARK 81
T=2.07,MARK 82
T=2.08,MARK 83
T=2.09,MARK 84
T=2.10,MARK 85
T=2.11,MARK 86
T=2.12,MARK 87
T=2.13,MARK 88
T=2.14,MARK 89
T=2.15,MARK 90
T=2.16,MARK 91
T=2.17,MARK 92
T=2.18,MARK 93
T=2.19,MARK 94
T=2.20,MARK 95
T=2.22,MARK 97
T=2.24,MARK 99
41204BNUT (FOR REAR DRIVE PINION)
OD=41.6
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=1.75,MARK 75
T=1.78,MARK 76
T=1.81,MARK 77
T=1.84,MARK 78
T=1.87,MARK 79
T=1.90,MARK 80
T=1.93,MARK 81
T=1.96,MARK 82
T=1.99,MARK 83
T=2.02,MARK 84
T=2.05,MARK 85
T=2.08,MARK 86
T=2.11,MARK 88
T=2.14,MARK 89
T=2.17,MARK 90
T=2.20,MARK 91
T=2.23,MARK 92
T=2.26,MARK 93
T=2.29,MARK 94
T=2.32,MARK 95
T=2.35,MARK 96
T=2.38,MARK 97
T=2.41,MARK 98
T=2.44,MARK 99
T=2.47,MARK 00
T=2.50,MARK 01
T=2.53,MARK 02
T=2.56,MARK 03
T=2.59,MARK 04
T=2.62,MARK 05
T=2.65,MARK 06
T=2.68,MARK 07
T=2.71,MARK 08
T=2.74,MARK 09
T=2.77,MARK 10
T=2.80,MARK 11
T=2.83,MARK 12
T=2.86,MARK 13
T=2.89,MARK 14
T=1.60
T=1.63
T=1.66
T=1.69
T=1.72
T=1.75
T=1.78
T=1.81
T=1.84
T=1.87
T=1.90
T=1.93
T=1.96
T=1.99
T=2.03
T=2.05
T=2.08
T=2.11
T=2.14
T=2.17
T=2.20
T=2.23
T=2.26
T=2.29
T=2.32
T=2.35
T=2.38
T=2.41
T=2.44
T=2.47
T=2.50
T=2.53
T=2.56
T=2.59
T=2.62
T=2.65
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
41507DHOSE, DIFFERENTIAL PRESSURE CONTROL
41507EELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE
41507FCLIP, DIFFERENTIAL PRESSURE CONTROL HOSE
41534BBRACKET, DIFFERENTIAL BREATHER
8202
9010908272
main90109-08272
9025008014
main90250-08014
9046706115
main90467-06115
9099992002
main90999-92002
9161160828
main91611-60828
91611B0614
main91611-B0614
45 parts on this diagram · 3 diagrams in section
