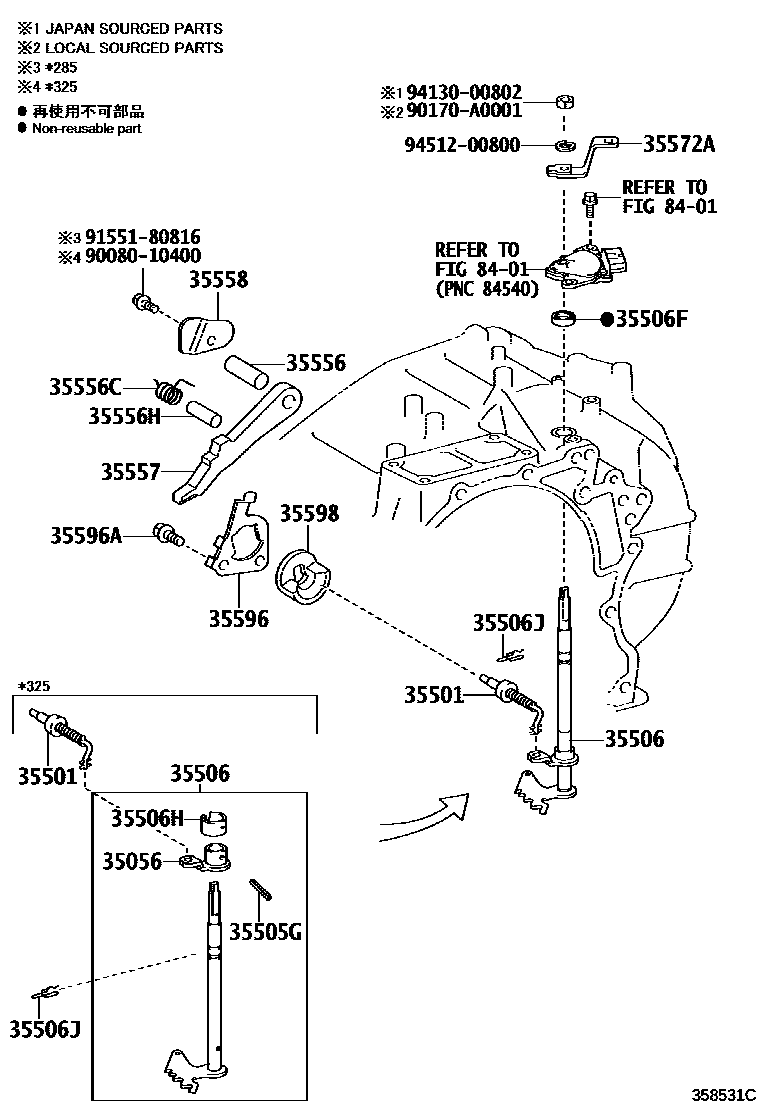

THROTTLE LINK & VALVE LEVER (ATM)

35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER

main35057-33010i201308-201506

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020i201303-201506

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011i201308-201506

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33020i201308-201506

main35506-73011i201303-201308

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002i201303-201308

main90311-A0009i201308-201506

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006i201308-201506

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002i201303-201308

main90524-A0001i201308-201506

35556SHAFT, PARKING LOCK PAWL

main35556-0R010i201411-201506

main35556-33010i201303-201411

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21008i201303-201308

main90508-A0013i201308-201506

35556HSHAFT, PARKING LOCK PAWL

main35556-0R020i201411-201506

main35556-63010i201303-201411

35557PAWL, PARKING LOCK

main35557-73010i201303-201506

35558CLAMP, PAWL SHAFT

main35558-06010i201308-201506

main35558-33010i201303-201308

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-08020i201308-201506

(L)

main35572-33020i201303-201308

(J)

35596PLATE, PAWL STOPPER

main35596-73010i201303-201506

35596ABOLT (FOR PAWL STOPPER PLATE)

main90080-10400i201308-201506

*8-1.25PX16-13.5

main91551-80816i201303-201308

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-0R010i201308-201506

main35598-33010i201303-201308

8401

9008010400

main90080-10400

90170A0001

main90170-A0001

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

22 parts on this diagram · 1 diagram in section
