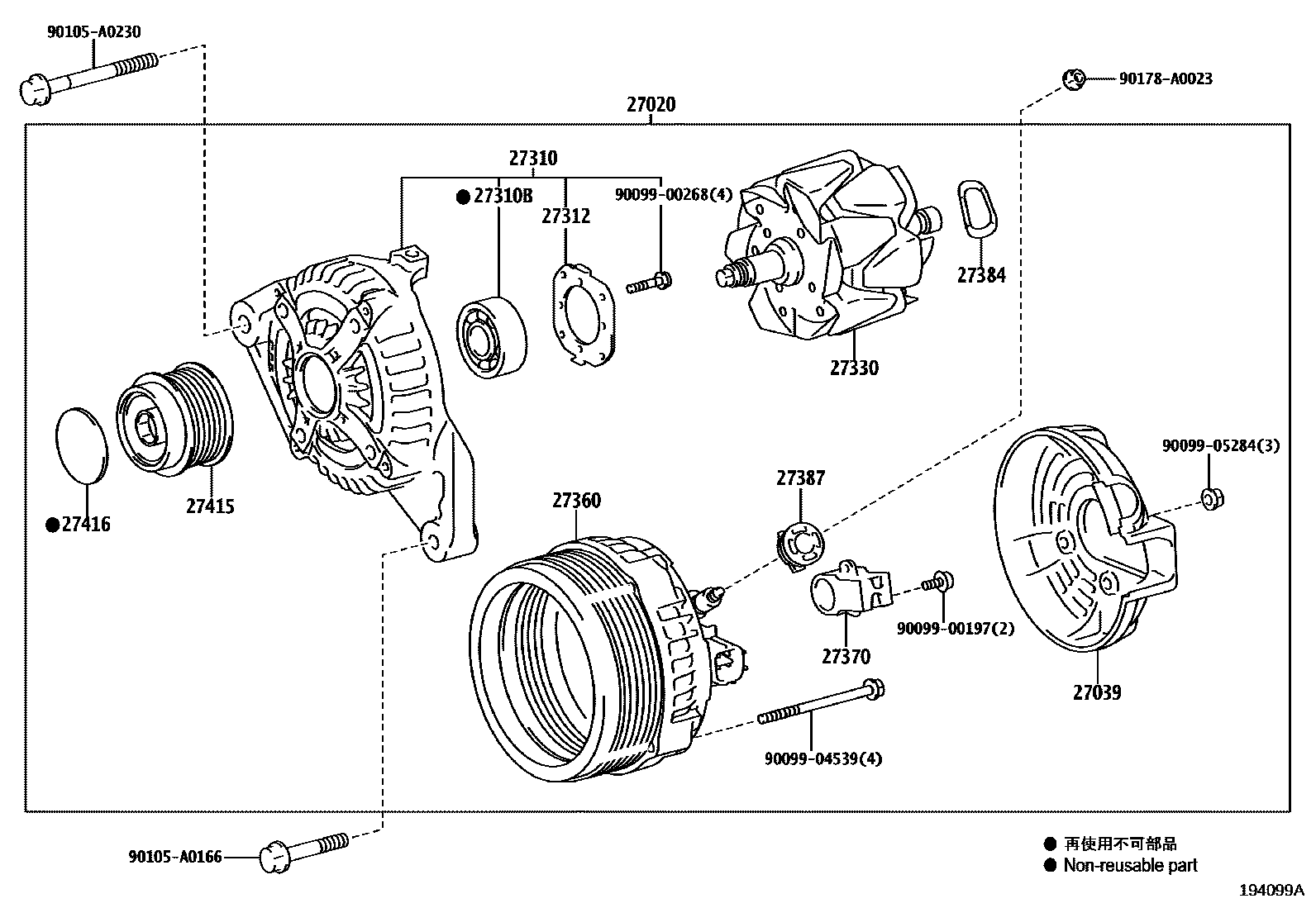

ALTERNATOR

27020ALTERNATOR ASSY

main27060-0V020i1ARFE..AGV1#201303-201506

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-0T040i1ARFE..AGV1#201303-201506

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0V010i1ARFE..AGV1#201303-201506

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i1ARFE..AGV1#201303-201506

27312PLATE, RETAINER

main27312-72100i1ARFE..AGV1#201303-201506

27330ROTOR ASSY, ALTERNATOR

main27330-0A100i1ARFE..AGV1#201303-201506

sub27330-33090

27360COIL ASSY, ALTERNATOR

main27360-0V020i1ARFE..AGV1#201303-201506

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0P020i1ARFE..AGV1#201303-201506

27384WASHER

main27384-0A020i1ARFE..AGV1#201303-201506

27387INSULATOR, TERMINAL

main27387-0V060i1ARFE..AGV1#201303-201506

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W110i1ARFE..AGV1#201303-201307

sub27415-0W111

main27415-0W111i1ARFE..AGV1#201308-201506

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1ARFE..AGV1#201303-201506

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

90105A0166

main90105-A0166

90105A0230

main90105-A0230

90178A0023

main90178-A0023

19 parts on this diagram · 1 diagram in section
