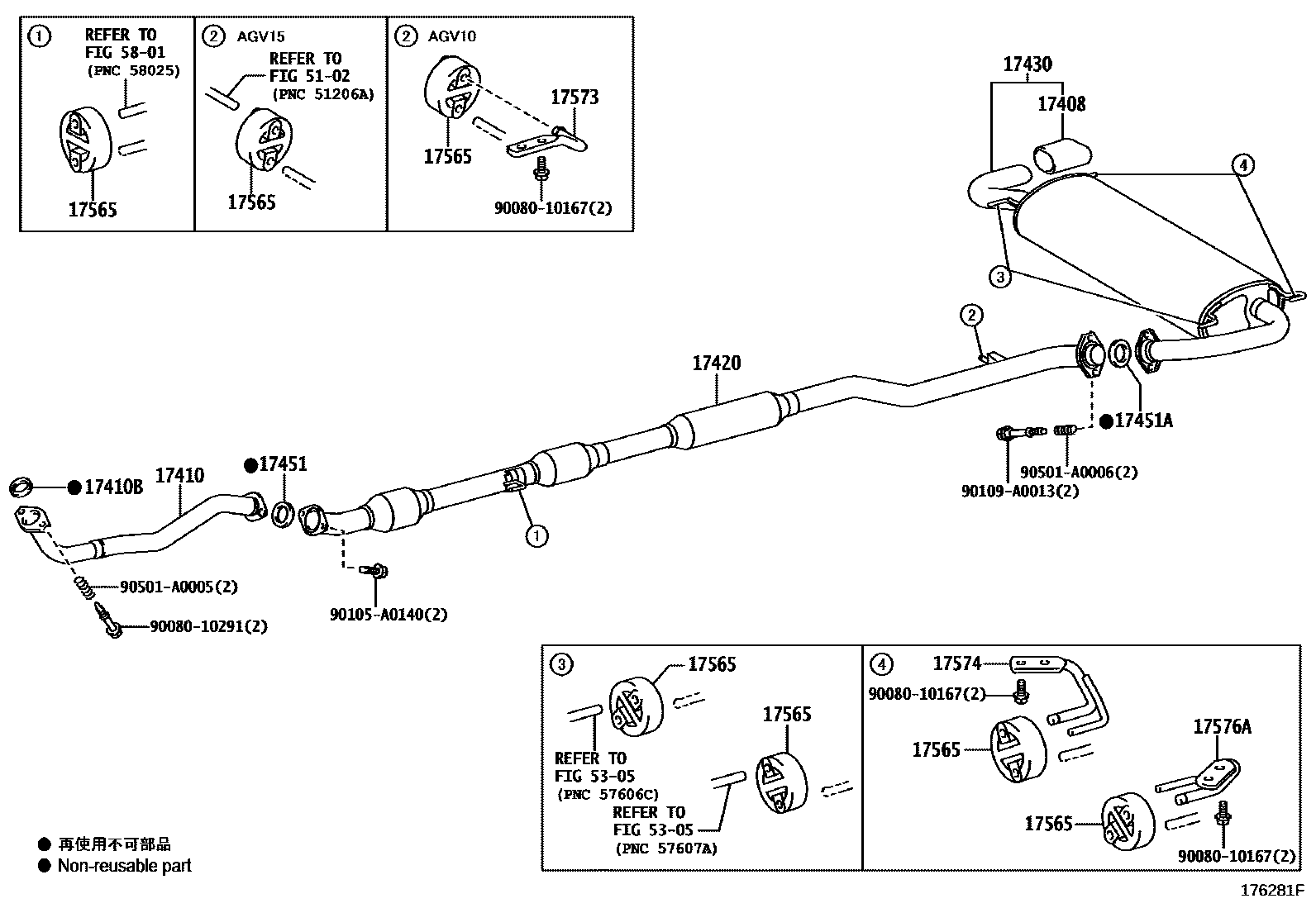

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-0P010i1ARFE..AGV1#201303-201506

17410PIPE ASSY, EXHAUST, FRONT

main17410-0V010i1ARFE..AGV1#201303-201506

17410BGASKET, EXHAUST PIPE

main17451-0V020i1ARFE..AGV1#201303-201506

sub17451-75011

17420PIPE ASSY, EXHAUST, CENTER

main17420-0V260i1ARFE..AGV15201303-201506

main17420-0V270i1ARFE..AGV10201303-201506

17430PIPE ASSY, EXHAUST, TAIL

main17430-0V260i1ARFE..AGV1#201303-201506

17451GASKET, EXHAUST PIPE

main90917-06078i1ARFE..AGV1#201303-201506

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0P022i1ARFE..AGV1#201303-201506

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P041i1ARFE..AGV1#201303-201506

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-0P080i1ARFE..AGV10201303-201506

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-0P110i1ARFE..AGV1#201303-201506

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0P100i1ARFE..AGV1#201303-201506

5102

5305

5801

9008010167

main90080-10167

9008010291

main90080-10291

90105A0140

main90105-A0140

90109A0013

main90109-A0013

90501A0005

main90501-A0005

90501A0006

main90501-A0006

20 parts on this diagram · 1 diagram in section
