ENGINE OIL COOLER

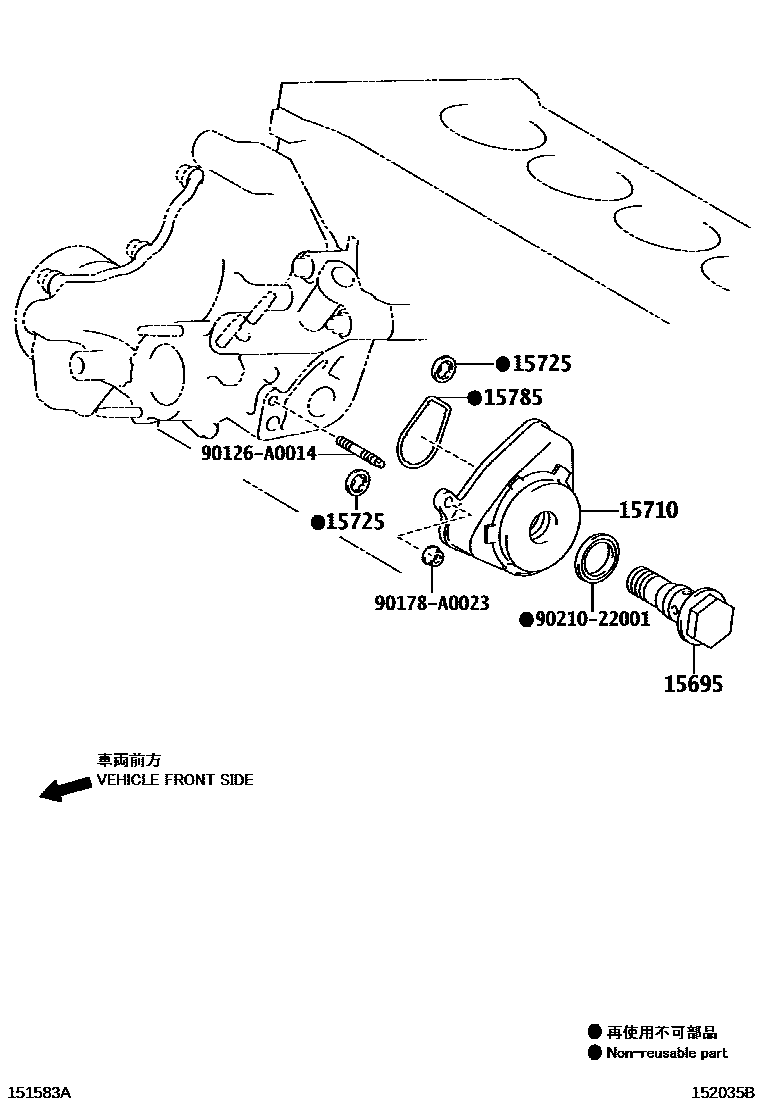

Parts diagram

15695BOLT, OIL COOLER UNION

main15695-62030

15710COOLER ASSY, OIL

main15710-36010

15725GASKET, OIL COOLER COVER

main15725-36010

15785GASKET, OIL COOLER

main15785-36010

90126A0014

main90126-A0014

90178A0023

main90178-A0023

9021022001

main90210-22001

7 parts on this diagram · 1 diagram in section
