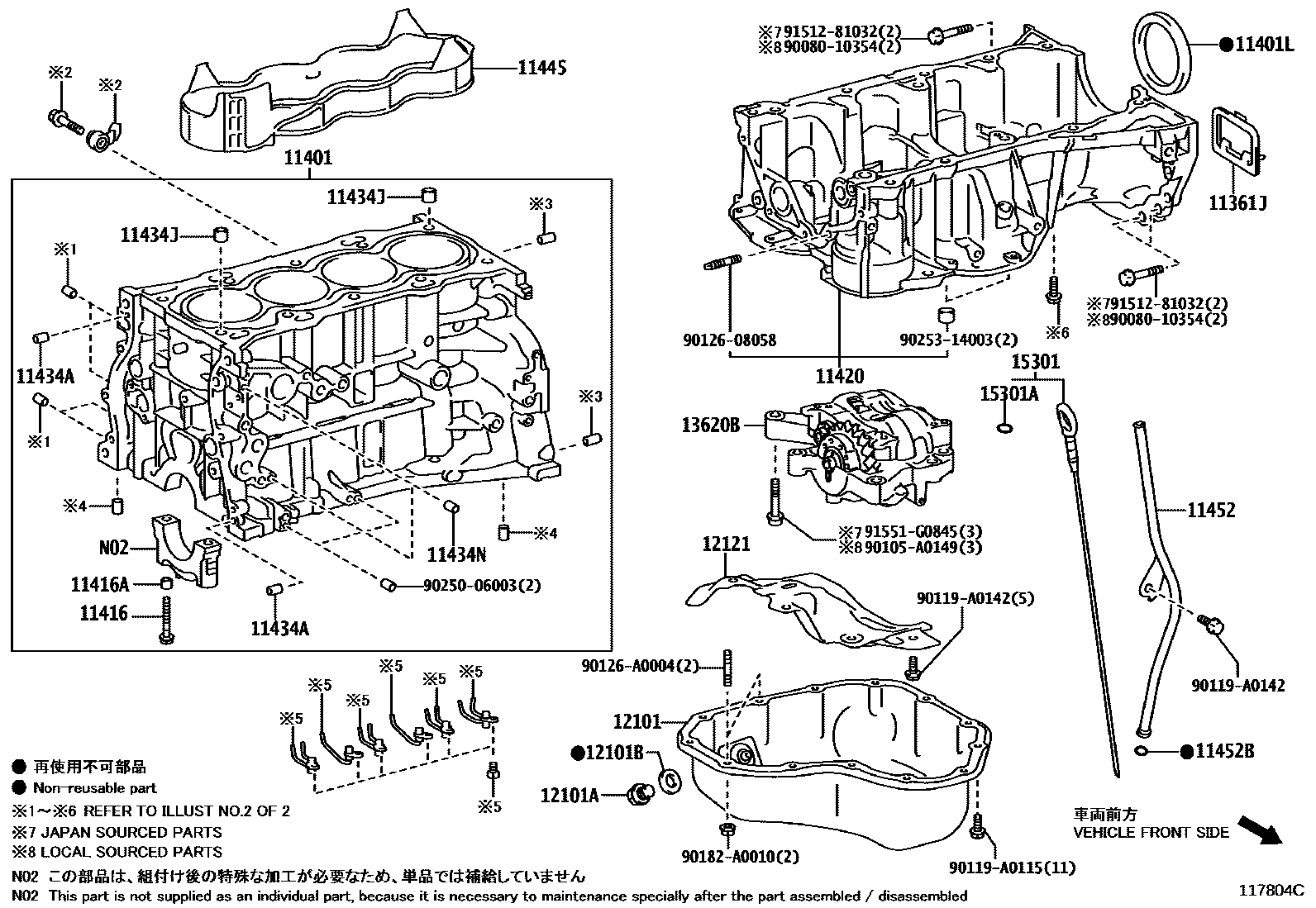

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(L)
(J)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
(J)
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
9008010354
main90080-10354
90105A0149
main90105-A0149
90119A0115
main90119-A0115
90119A0142
main90119-A0142
9012608058
90126A0004
main90126-A0004
90182A0010
main90182-A0010
9025006003
9025314003
9151281032
91551G0845
30 parts on this diagram · 2 diagrams in section
