HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL---MANUAL 0002 1CONTROL PANEL---AUTO 0004 1CONTROL PANEL---AUTO 0005 1AIR DUCT 0006 1AIR DUCT 0007 1SENSOR 0008 1SENSOR

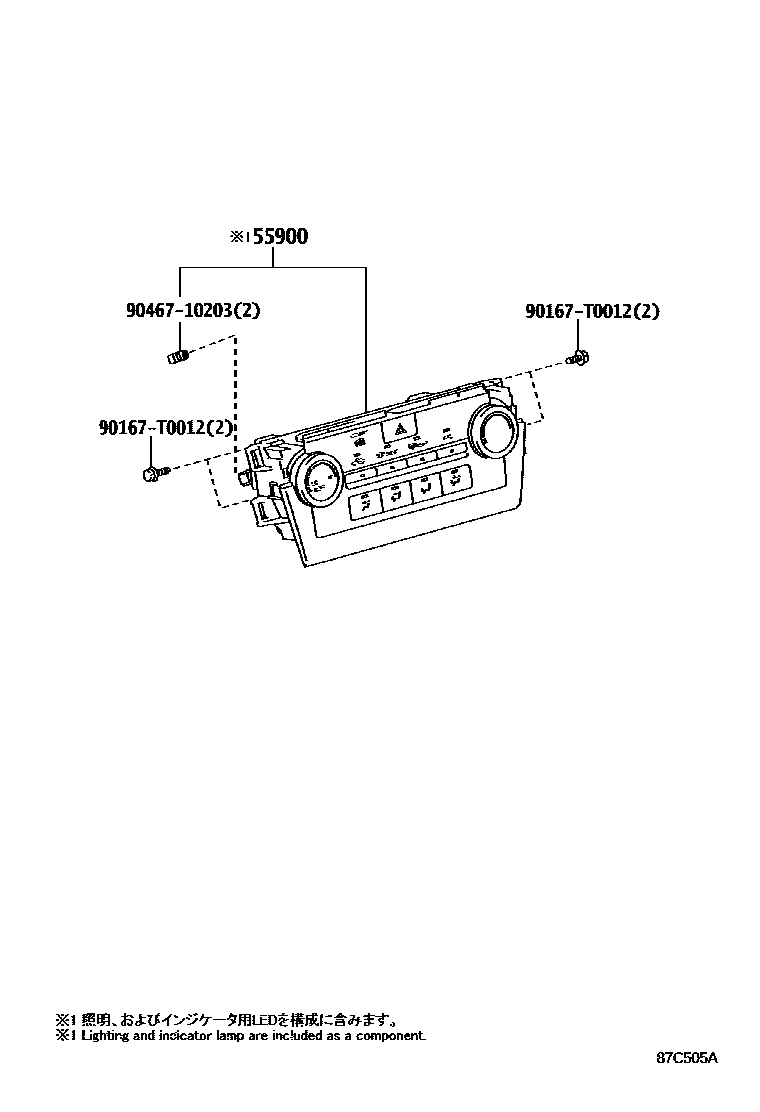

55900CONTROL ASSY, AIR CONDITIONER

main55900-06390iASV50..ALT201504

DECONTENT PACKAGE

main55900-06390iASV50..ALT201110-201504

main55900-06410iASV50..6F..GL201110-201504

main55900-06440iASV50,AVV50..ATRS,ATRSX,HBD201110-201504

DECONTENT PACKAGE

main55900-06450iASV50..6FC..(GLX,SE)201110-201605

main55900-33E00iGSV50..GCC201202-201504

main55900-33E40iGSV50..ARL201202-201504

main55900-33F10iGSV50..GCC201504

main55900-33F30iGSV50..ARL201504

90167T0012

main90167-T0012

9046710203

main90467-10203

3 parts on this diagram · 7 diagrams in section
