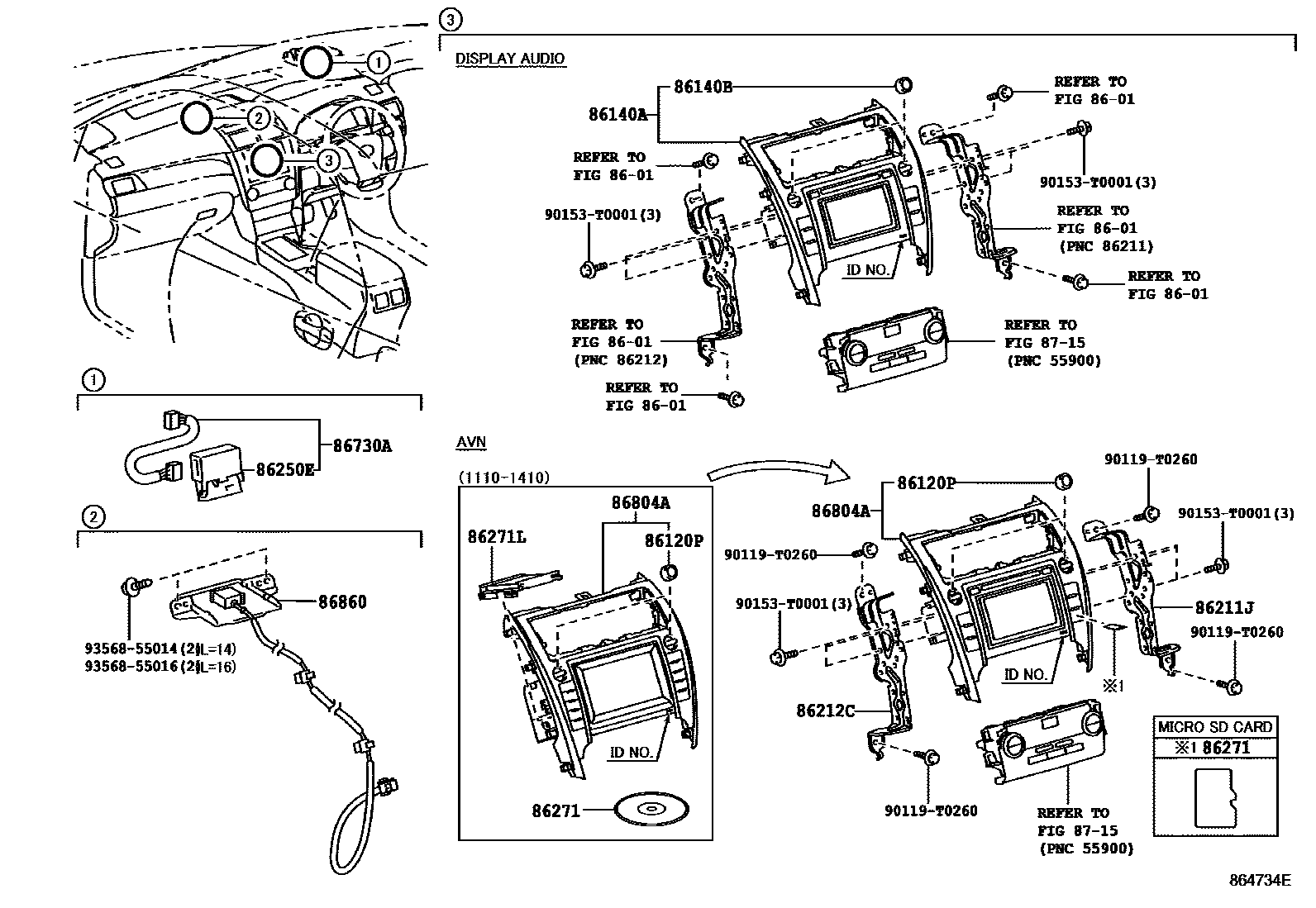

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8601

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90010-23035iASV50..6FC..GLX201110-201504

VSC-WITH

main90010-24166iGSV50..PRD,SPVS201202-201504

LIMITED PACKAGE

main90010-24166iGSV50..PRD,SPVS201202-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

main90011-23038iASV50..ATRSX201605-201710

THAILAND SPEC

main90011-23038iAVV50201610-201710

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

main90011-23038iAVV50201504-201710

LIMITED PACKAGE

main90011-25198iASV50,AVV50..ATRS,HBD201110-201410

LIMITED PACKAGE

main90011-25266iGSV50..ATX201605-201710

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

main90011-25266iGSV50..SPVS201504-201605

SEAT COVER MATERIAL-LEATHER 2

main90011-25266iGSV50..PRD201504-201710

main90011-25267iASV50..GLX201504-201605

VSC-WITH

main90011-25267iASV50..GLX201605-201710

AUDIO-AVN(*BT) & 6SPEAKER

main90011-25276iGSV50..GD,SE201504-201710

AUDIO-AVN(*BT) & 6SPEAKER

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-06080iASV50,AVV50..ATRS,ATRSX,HBD201110-201410

FUJITSU TEN,ID100035

main86140-06080iASV50,AVV50..ATRS,ATRSX,HBD201110-201410

FUJITSU TEN,ID100035,AUDIO-DISPLAY 6SPEAKER BLUETOOTH

main86140-06090iASV50..6F..(GLX,SE)201110-201504

FUJITSU TEN,ID100036

main86140-06140iGSV50..GD,SE201202-201504

FUJITSU TEN,ID100038,AUDIO-DISPLAY 6SPEAKER BLUETOOTH

main86140-06140iGSV50..TOU201202-201504

FUJITSU TEN,ID100038

main86140-06150iGSV50..ARL201202-201504

FUJITSU TEN,ID100037

main86140-06290iASV50..ATRSX201504-201605

FUJITSU TEN,ID100393,THAILAND SPEC

main86140-06290iASV50,AVV50..ATRS,HBD201504-201610

FUJITSU TEN,ID100393

main86140-06290iASV50..ATRS201610-201710

FUJITSU TEN,ID100393,PAPUA NEW GUINEA/FIJI SPEC

main86140-06300iGSV50..ATX201504-201710

FUJITSU TEN,ID100453

main86140-06310iASV50..GLX,SE201504-201605

PIONEER,ID=P10734

main86140-06320iGSV50..GD,SE201504-201605

PIONEER,ID=P10735

main86140-06380iAVV50201504-201610

FUJITSU TEN,ID100457,DECONTENT PACKAGE

main86140-06380iASV50,AVV50..ATRS,ATRSX,HBD201410-201710

FUJITSU TEN,ID100457

main86140-06380iASV50,AVV50..ATRS,ATRSX,HBD201410-201710

FUJITSU TEN,ID100457,AUDIO-*DA(CD & *BT) & 6SPEAKER

main86140-06380iASV50..ATRS201605-201610

FUJITSU TEN,ID100457,RZ PACKAGE

main86140-06800iASV50..GLX201605-201710

PIONEER,ID=P11330

main86140-06810iGSV50..GD,SE201605-201710

PIONEER,ID=P11288

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-23038iASV50..ATRS201410-201504

AUDIO-*DA(CD & *BT) & 6SPEAKER

main90011-23038iAVV50201610

PAPUA NEW GUINEA/FIJI SPEC

main90011-23038iASV50..ATRSX201504-201605

THAILAND SPEC

main90011-23038iASV50,AVV50..ATRS,HBD201504-201610

main90011-25197iASV50..ALT201110-201410

AUDIO-DISPLAY 6SPEAKER BLUETOOTH

main90011-25197iASV50..6F..(GLX,SE)201110-201504

main90011-25263iASV50..GLX,SE201504

main90011-25264iGSV50..GD,SE201504

sub90011-25276

main90011-25266iGSV50..SPVS201504-201605

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-06180iASV50,AVV50..ATRS,HBD201110-201410

LIMITED PACKAGE

main86211-06180iASV50..6FC..GLX201110-201504

VSC-WITH

main86211-06200iGSV50..GD201202-201504

LIMITED PACKAGE

main86211-06200iGSV50..GD201202-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-06180iASV50,AVV50..ATRS,HBD201110-201410

LIMITED PACKAGE

main86212-06180iASV50..6FC..GLX201110-201504

VSC-WITH

main86212-06200iGSV50..PRD,SPVS201202-201504

LIMITED PACKAGE

main86212-06200iGSV50..PRD,SPVS201202-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iASV50,AVV50,GSV50..ARL201110-201504

main86250-52030iASV50..SE201110-201605

main86250-52030iASV50..GLX;GSV50..GCC201504

FLEET PACK

86271DISC, DISC PLAYER

main86271-0E171iGSV50..SPVS201410-201508

LIMITED PACKAGE,MICRO SD CARD

sub86271-0E172

main86271-0E171iGSV50..PRD201504-201508

MICRO SD CARD

sub86271-0E172

main86271-0E171iGSV50..PRD201504-201508

SEAT COVER MATERIAL-LEATHER 2,MICRO SD CARD

sub86271-0E172

main86271-0E172iASV50,AVV50..ATRS,HBD201509-201609

MICRO SD CARD

sub86271-0E173

main86271-0E172iGSV50..ATX201605-201609

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING,MICRO SD CARD

sub86271-0E173

main86271-0E172iGSV50..ATX201605-201609

THAILAND SPEC,MICRO SD CARD

sub86271-0E173

main86271-0E172iASV50,AVV50..ATRS,HBD201509-201609

LIMITED PACKAGE,MICRO SD CARD

sub86271-0E173

main86271-0E172iGSV50..SPVS201509-201605

SEAT COVER MATERIAL-LEATHER 2,MICRO SD CARD

sub86271-0E173

main86271-0E173iASV50..ATRSX201610-201710

THAILAND SPEC,MICRO SD CARD

sub86271-0E174

main86271-0E173iASV50..ATRSX201610-201710

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING,MICRO SD CARD

sub86271-0E174

main86271-0E173iASV50..ATRSX201610-201710

AUDIO-AVN 6SP/BT DAB,MICRO SD CARD

sub86271-0E174

main86271-0E173iGSV50..ATX201610-201710

MICRO SD CARD

sub86271-0E174

main86271-60401iGSV50..GD,SE201504-201508

VSC-WITH,MICRO SD CARD

sub86271-60402

main86271-60401iGSV50..GD,SE201504-201508

AUDIO-AVN(*BT) & 6SPEAKER,MICRO SD CARD

sub86271-60402

main86271-60402iGSV50..GD,SE201509-201608

AUDIO-AVN(*BT) & 6SPEAKER,MICRO SD CARD

sub86271-60403

main86271-60402iASV50..GLX201509-201605

VSC-WITH,MICRO SD CARD

sub86271-60403

main86271-60403iASV50,GSV50..GD,GLX,SE201609-201705

AUDIO-AVN(*BT) & 6SPEAKER,MICRO SD CARD

sub86271-60404

main86271-60404iASV50,GSV50..GD,GLX,SE201706-201710

AUDIO-AVN(*BT) & 6SPEAKER,MICRO SD CARD

sub86271-60405

main86807-06010iASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS201310-201409

LIMITED PACKAGE

sub86807-06011

main86807-06011iGSV50..PRD,SPVS201410-201504

LIMITED PACKAGE

sub86807-06012

main86807-30120iASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS201110-201310

LIMITED PACKAGE

sub86807-06010

main86807-30130iASV50..6FC..GLX201110-201308

VSC-WITH

sub86807-30131

main86807-30130iGSV50..SE201202-201308

AUDIO-AVN 6SPEAKER BLUETOOTH

sub86807-30131

main86807-30131iGSV50..GD,SE201309-201408

VSC-WITH

sub86807-30132

main86807-30131iASV50..GLX201309-201408

AUDIO-AVN 6SPEAKER BLUETOOTH

sub86807-30132

main86807-30132iASV50..GLX201409-201504

VSC-WITH

sub86807-30133

main86807-30132iASV50..GLX201409-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

sub86807-30133

86271LHARD DISC

main86271-33160iASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS201110-201208

LIMITED PACKAGE

sub86271-33161

main86271-33161iASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS201209-201309

LIMITED PACKAGE

sub86271-33162

main86271-33162iASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS201310-201408

LIMITED PACKAGE

sub86271-33163

main86271-33163iGSV50..PRD,SPVS201409-201504

LIMITED PACKAGE

sub86271-33164

main86271-33170iASV50..6FC..GLX201110-201207

VSC-WITH

sub86271-33171

main86271-33170iGSV50..GD201202-201207

AUDIO-AVN 6SPEAKER BLUETOOTH

sub86271-33171

main86271-33171iGSV50..GD201208-201308

AUDIO-AVN 6SPEAKER BLUETOOTH

sub86271-33172

main86271-33171iASV50..6FC..GLX201208-201307

VSC-WITH

sub86271-33172

main86271-33172iGSV50..GD,SE201308-201407

VSC-WITH

sub86271-33173

main86271-33172iGSV50..GD,SE201308-201407

AUDIO-AVN 6SPEAKER BLUETOOTH

sub86271-33173

main86271-33173iGSV50..GD,SE201408-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

main86271-33173iASV50..GLX201408-201504

VSC-WITH

86730AMICROPHONE ASSY, TELEPHONE

main86730-47030iASV50,AVV50,GSV50..ARL201110-201710

main86730-47040iASV50,GSV50..GD,GLX,SE,TOU201504-201710

FLEET PACK

main86730-47040iASV50,GSV50..GD,GLX,SE,TOU201110-201504

86804ASUB-ASSY, NAVIGATION COMPUTER

main86804-06040iASV50,AVV50..ATRS,HBD201110-201410

LIMITED PACKAGE

main86804-06050iGSV50..PRD,SPVS201202-201504

LIMITED PACKAGE

main86804-06080iASV50,AVV50..ATRS,HBD201410-201504

LIMITED PACKAGE

main86804-33300iASV50..6FC..GLX201110-201504

VSC-WITH

main86804-33310iGSV50..GD201202-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

86860ANTENNA ASSY, NAVIGATION

main86860-33120iASV50..6FC..GLX201110-201504

VSC-WITH

main86860-33120iGSV50..SE201202-201504

AUDIO-AVN 6SPEAKER BLUETOOTH

main86860-33170iGSV50..GD,SE201504

AUDIO-AVN(*BT) & 6SPEAKER

main86860-33170iASV50..GLX201504-201605

VSC-WITH

main86860-33180iASV50,AVV50..ATRS,HBD201110-201504

LIMITED PACKAGE

main86860-33210iAVV50201504

RZ PACKAGE

main86860-33210iASV50..ATRS201504

THAILAND SPEC

main86860-33210iASV50..ATRS201504

DECONTENT PACKAGE

main86860-33210iASV50..ATRS201504

AUDIO-*DA(CD & *BT) & 6SPEAKER

main86860-33210iASV50..ALT201610

AUDIO-AVN 6SP/BT DAB

main86860-33210iASV50,AVV50..ATRS,HBD201410-201504

LIMITED PACKAGE

8715

90119T0260

main90119-T0260

90153T0001

main90153-T0001

9356855014

main93568-55014

9356855016

main93568-55016

17 parts on this diagram · 8 diagrams in section
