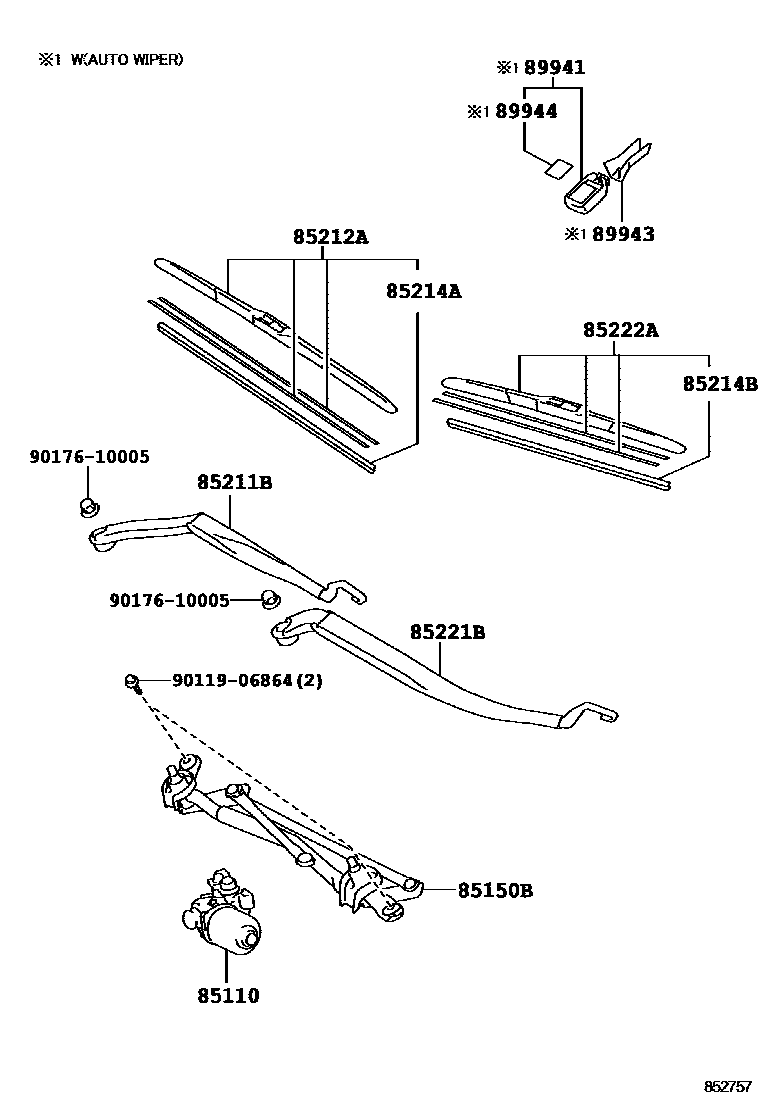

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06130iASV50,GSV50..6FC..GCC201110-201605

main85110-06140iASV50,AVV50,GSV50..ARL201110-201504

85150BLINK ASSY, WIPER

main85150-06130iASV50..6F201110-201605

main85150-06140iASV50,AVV50,GSV50..ARL201110-201504

85211BARM, FRONT WIPER, RH

main85211-06120iASV50..6F201110-201605

main85211-06130iASV50,AVV50,GSV50..ARL201110-201504

85212ABLADE, FR WIPER, RH

main85212-06140iGSV50..GCC;ASV50..GL,GLX201110-201605

sub85212-33260

main85212-06150iASV50,AVV50,GSV50..ARL201110-201504

sub85212-33250¥4,290

85214ARUBBER, WIPER, RH

main85214-06150iGSV50..GCC;ASV50..GL,GLX201110-201605

sub85214-33180¥800

main85214-06160iASV50,AVV50,GSV50..ARL201110-201306

sub85214-06210

main85214-06210iASV50,AVV50,GSV50..ARL201307-201504

sub85214-52110¥900

85214BRUBBER, WIPER, LH

main85214-06150iASV50,AVV50,GSV50..ARL201110-201504

sub85214-33180¥800

main85214-06160iASV50..6F201110-201306

sub85214-06210

main85214-06210iASV50,GSV50..GCC201307-201605

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-06120iASV50..SE201110-201605

main85221-06130iASV50,AVV50,GSV50..ARL201110-201504

85222ABLADE, FR WIPER, LH

main85222-06140iASV50,GSV50..6FC..GCC201110-201605

sub85222-33270

main85222-06150iASV50,AVV50,GSV50..ARL201110-201504

89941SENSOR, RAIN

main89941-52010iGSV50..PRD¥12,500201504

LIMITED PACKAGE

main89941-52010iGSV50..PRD¥12,500201202-201504

89943COVER, RAIN SENSOR

main89943-42010iGSV50..PRD¥1,680201202-201504

main89943-42010iGSV50..PRD¥1,680201504

LIMITED PACKAGE

89944TAPE, RAIN SENSOR

main89944-42010iGSV50..PRD¥1,490201202-201504

main89944-42010iGSV50..PRD¥1,490201504

LIMITED PACKAGE

9011906864

main90119-06864¥80

9017610005

main90176-10005¥110

13 parts on this diagram · 2 diagrams in section
