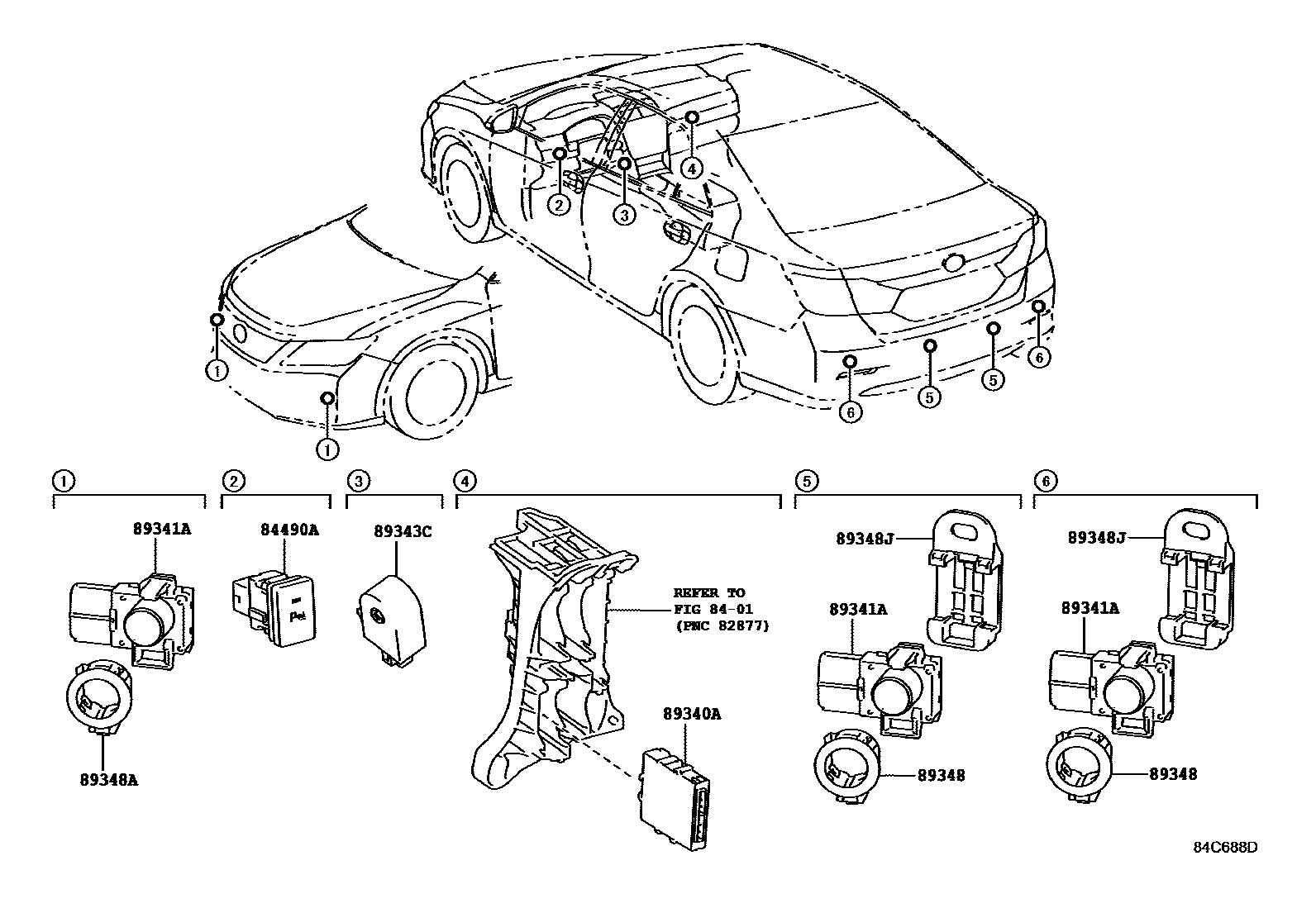

CLEARANCE & BACK SONAR
8401
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
sub84490-33031
sub84490-33031
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY)
sub84490-33031
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
sub84490-22011
VSC-WITH
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY)
VSC-WITH
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)
DECONTENT PACKAGE
THAILAND SPEC
LIMITED PACKAGE
DECONTENT PACKAGE
VSC-WITH
89341ASENSOR, ULTRASONIC, NO.1
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SUPER WHITE 2,061
sub89341-33210
sub89341-33190
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),WHITE PEARL CS.,070
sub89341-33210
sub89341-33190
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),ATTITUDE BLACK MC.,218
sub89341-33210
sub89341-33190
THAILAND SPEC,SUPER WHITE 2,061
SUPER WHITE 2,061
LIMITED PACKAGE,SUPER WHITE 2,061
DECONTENT PACKAGE,SUPER WHITE 2,061
VSC-WITH,SUPER WHITE 2,061
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SUPER WHITE 2,061
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),SUPER WHITE 2,061
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SUPER WHITE 2,061
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),WHITE PEARL CS.,070
DECONTENT PACKAGE,WHITE PEARL CS.,070
WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),WHITE PEARL CS.,070
VSC-WITH,WHITE PEARL CS.,070
LIMITED PACKAGE,WHITE PEARL CS.,070
SILVER ME.,1F7
DECONTENT PACKAGE,SILVER ME.,1F7
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SILVER ME.,1F7
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SILVER ME.,1F7
VSC-WITH,SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),SILVER ME.,1F7
THAILAND SPEC,SILVER ME.,1F7
LIMITED PACKAGE,SILVER ME.,1F7
GRAY ME.,1G3
DECONTENT PACKAGE,GRAY ME.,1G3
VSC-WITH,GRAY ME.,1G3
THAILAND SPEC,GRAY ME.,1G3
LIMITED PACKAGE,GRAY ME.,1G3
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),GRAY ME.,1G3
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),GRAY ME.,1G3
VSC-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),ATTITUDE BLACK MC.,218
DECONTENT PACKAGE,ATTITUDE BLACK MC.,218
THAILAND SPEC,ATTITUDE BLACK MC.,218
LIMITED PACKAGE,ATTITUDE BLACK MC.,218
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),ATTITUDE BLACK MC.,218
RED M.M.,3R3
VSC-WITH,RED M.M.,3R3
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),RED M.M.,3R3
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),RED M.M.,3R3
DECONTENT PACKAGE,RED M.M.,3R3
LIMITED PACKAGE,RED M.M.,3R3
THAILAND SPEC,RED M.M.,3R3
SUPER RED 5,3P0
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SUPER RED 5,3P0
DECONTENT PACKAGE,SUPER RED 5,3P0
VSC-WITH,BRONZE M.M.,4S2
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),BRONZE M.M.,4S2
BRONZE M.M.,4S2
DECONTENT PACKAGE,BRONZE M.M.,4S2
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),BRONZE M.M.,4S2
LIMITED PACKAGE,BRONZE M.M.,4S2
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),BLUE M.M.,8L5
BLUE M.M.,8L5
VSC-WITH,BLUE M.M.,8L5
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),BLUE M.M.,8L5
VSC-WITH,LT.BLUE ME.,8S4
LT.BLUE ME.,8S4
DK.BLUE M.M.,8W6
DECONTENT PACKAGE,DK.BLUE M.M.,8W6
VSC-WITH,DK.BLUE M.M.,8W6
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),DK.BLUE M.M.,8W6
THAILAND SPEC,DK.BLUE M.M.,8W6
LIMITED PACKAGE,DK.BLUE M.M.,8W6
LT.BLUE M.M.,8S0
DECONTENT PACKAGE,LT.BLUE M.M.,8S0
VSC-WITH,LT.BLUE M.M.,8S0
THAILAND SPEC,LT.BLUE M.M.,8S0
LIMITED PACKAGE,LT.BLUE M.M.,8S0
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),LT.BLUE M.M.,8S0
89343CBUZZER, CLEARANCE WARNING, NO.1
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)
DECONTENT PACKAGE
VSC-WITH
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY)
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
89348RETAINER, ULTRASONIC SENSOR, NO.1
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SUPER WHITE 2,061
sub89348-33100
DECONTENT PACKAGE,SUPER WHITE 2,061
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),SUPER WHITE 2,061
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SUPER WHITE 2,061
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),WHITE PEARL CS.,070
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),WHITE PEARL CS.,070
sub89348-33100
DECONTENT PACKAGE,WHITE PEARL CS.,070
sub89348-33100
LIMITED PACKAGE,WHITE PEARL CS.,070
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),WHITE PEARL CS.,070
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),SILVER ME.,1F7
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SILVER ME.,1F7
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SILVER ME.,1F7
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),GRAY ME.,1G3
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),GRAY ME.,1G3
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),GRAY ME.,1G3
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),ATTITUDE BLACK MC.,218
sub89348-33100
DECONTENT PACKAGE,ATTITUDE BLACK MC.,218
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),ATTITUDE BLACK MC.,218
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),ATTITUDE BLACK MC.,218
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),RED M.M.,3R3
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),RED M.M.,3R3
sub89348-33100
DECONTENT PACKAGE,RED M.M.,3R3
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SUPER RED 5,3P0
sub89348-33100
DECONTENT PACKAGE,SUPER RED 5,3P0
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),BRONZE M.M.,4S2
sub89348-33100
DECONTENT PACKAGE,BRONZE M.M.,4S2
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),BRONZE M.M.,4S2
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),BRONZE M.M.,4S2
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),BLUE M.M.,8L5
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),BLUE M.M.,8L5
sub89348-33100
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),LT.BLUE ME.,8S4
sub89348-33100
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY),LT.BLUE ME.,8S4
sub89348-33100
DECONTENT PACKAGE,DK.BLUE M.M.,8W6
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),DK.BLUE M.M.,8W6
sub89348-33100
DECONTENT PACKAGE,LT.BLUE M.M.,8S0
sub89348-33100
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),LT.BLUE M.M.,8S0
sub89348-33100
89348ARETAINER, ULTRASONIC SENSOR, NO.2
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SUPER WHITE 2,061
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SUPER WHITE 2,061
sub89348-71010
DECONTENT PACKAGE,SUPER WHITE 2,061
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),WHITE PEARL CS.,070
sub89348-71010
LIMITED PACKAGE,WHITE PEARL CS.,070
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),WHITE PEARL CS.,070
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SILVER ME.,1F7
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),SILVER ME.,1F7
sub89348-71010
DECONTENT PACKAGE,GRAY ME.,1G3
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),GRAY ME.,1G3
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),GRAY ME.,1G3
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),ATTITUDE BLACK MC.,218
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),ATTITUDE BLACK MC.,218
sub89348-71010
LIMITED PACKAGE,ATTITUDE BLACK MC.,218
sub89348-71010
THAILAND SPEC,ATTITUDE BLACK MC.,218
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),RED M.M.,3R3
sub89348-71010
DECONTENT PACKAGE,SUPER RED 5,3P0
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),SUPER RED 5,3P0
sub89348-71010
DECONTENT PACKAGE,BRONZE M.M.,4S2
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),BRONZE M.M.,4S2
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),BRONZE M.M.,4S2
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),BLUE M.M.,8L5
sub89348-71010
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT),LT.BLUE ME.,8S4
sub89348-71010
DECONTENT PACKAGE,LT.BLUE M.M.,8S0
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),LT.BLUE M.M.,8S0
sub89348-71010
DECONTENT PACKAGE,DK.BLUE M.M.,8W6
sub89348-71010
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),DK.BLUE M.M.,8W6
sub89348-71010
89348JCLIP, ULTRASONIC SENSOR
DECONTENT PACKAGE
CLEARANCE & BACK SONAR-WITH(BACK SONAR ONLY)
VSC-WITH
INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD)
8 parts on this diagram · 2 diagrams in section
