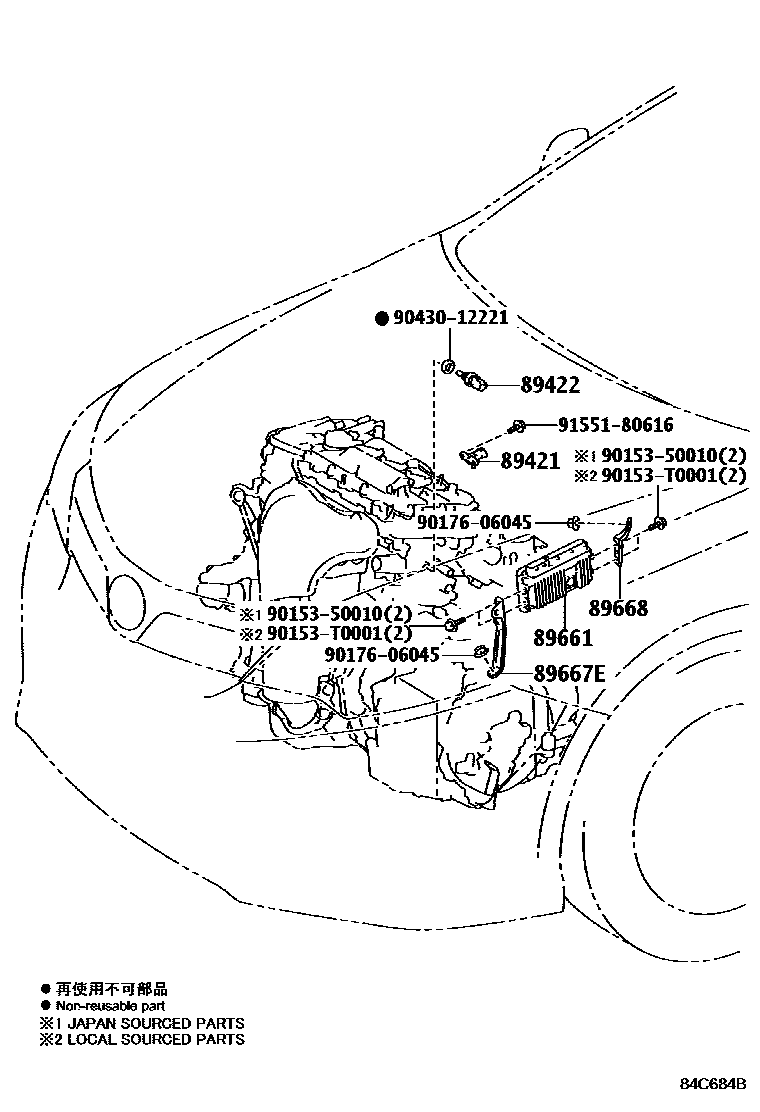

ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
(J)
89661COMPUTER, ENGINE CONTROL
P/N LABEL=8966106300
P/N LABEL=8966106L30
P/N LABEL=8966106L40
P/N LABEL=8966106L60
PAPUA NEW GUINEA/FIJI SPEC,P/N LABEL=8966106L60
sub89661-06N21
PAPUA NEW GUINEA/FIJI SPEC
P/N LABEL=8966106Q80
P/N LABEL=8966106Q90
P/N LABEL=8966106R00
PAPUA NEW GUINEA/FIJI SPEC,P/N LABEL=8966106R10
P/N LABEL=8966106R10
DECONTENT PACKAGE
PAPUA NEW GUINEA/FIJI SPEC
sub89661-0X270
PAPUA NEW GUINEA/FIJI SPEC
RZ PACKAGE
DECONTENT PACKAGE
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
sub89667-33150
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
sub89668-33230
9015350010
main90153-50010
90153T0001
main90153-T0001
9017606045
main90176-06045
9043012221
main90430-12221
9155180616
main91551-80616
10 parts on this diagram · 2 diagrams in section
