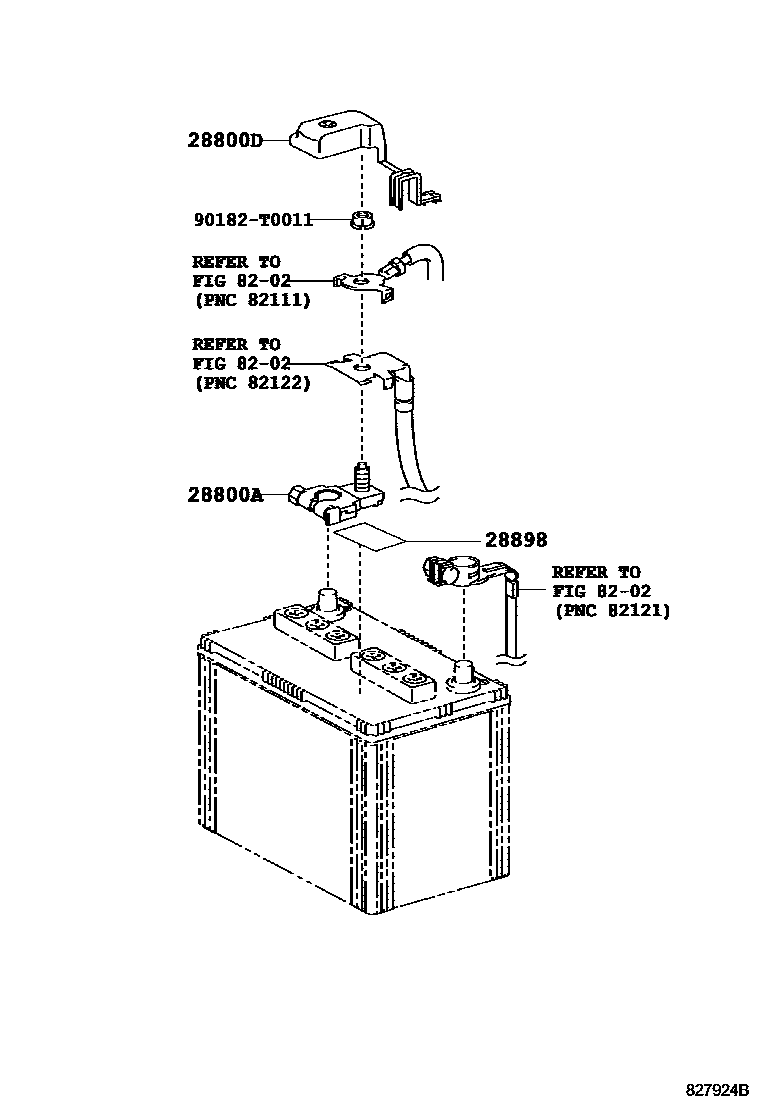

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-28100i2ARFXE..AVV50201201-201504

S55D23R

sub28800-28101

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFXE..AVV50201110-201605

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2ARFE..ASV50..6F201110-201504

main82821-47110i2ARFXE..AVV50201201-201504

28898PLATE, BATTERY

main28897-36030i2GRFE..GSV50..GCC;2ARFE..ASV50..GL,GLX201605

8202

90182T0011

main90182-T0011

6 parts on this diagram · 5 diagrams in section
