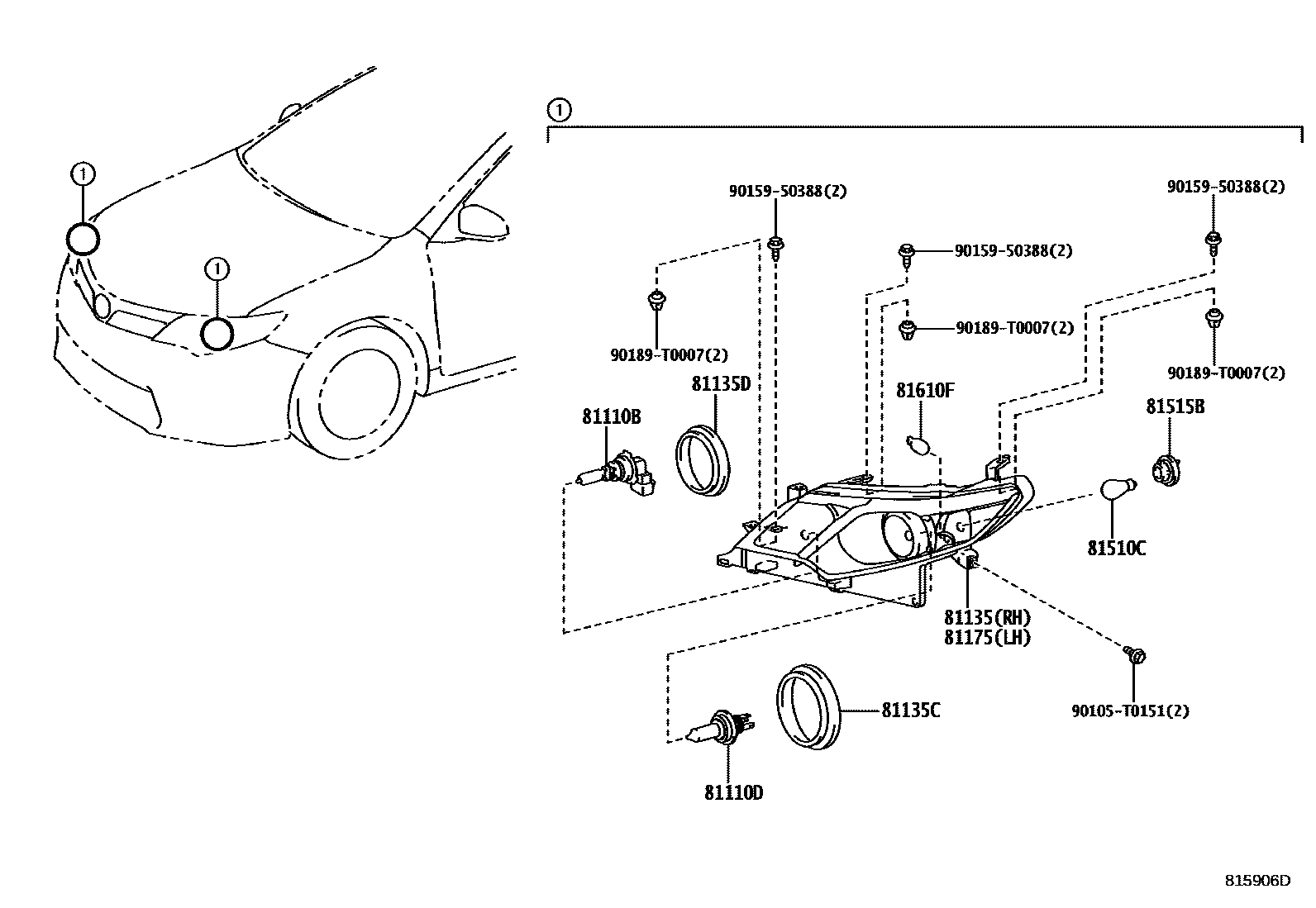

HEADLAMP

0001 1 0002 1HALOGEN HEADLAMP 0003 1HALOGEN HEADLAMP 0005 1DISCHARGE HEADLAMP 0006 1DISCHARGE HEADLAMP 0007 1HALOGEN HEADLAMP 0008 1LED HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iGSV50..ATX,TOU201202-201605

12V65W(SAE),60W(ECE)

main90981-8Y001iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

12V 65W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iASV50..SE;GSV50..SPVS201202-201605

12V 55W,HALOGEN

main90981-8Y003iASV50,AVV50201110-201504

12V 55W

81135UNIT ASSY, HEADLAMP, RH

main81130-06810iASV50..ALT,ATRS201110-201307

main81130-06811iASV50,AVV50..ALT,ATRS,HBD201307-201504

main81130-06820iASV50..ATRSX201110-201307

main81130-06821iASV50..ATRSX201307-201504

main81130-06830iAVV50201201-201307

main81130-06840iASV50..GL,GLX201110-201307

main81130-06841iASV50..GL,GLX201307-201504

main81130-06850iASV50..SE201110-201307

main81130-06851iASV50..SE201307-201504

main81130-06B10iGSV50..ARL201202-201412

sub81130-06B12

main81130-06B12iGSV50..ATX201412-201605

main81130-06B20iGSV50..SE,TOU201202-201307

main81130-06B21iGSV50..SE,TOU201307-201412

sub81130-06B23

main81130-06B23iGSV50..SE,TOU201412-201504

main81130-06B50iASV50..ALT201504

DECONTENT PACKAGE

main81130-06B60iASV50,AVV50..ATRS,ATRSX,HBD201504

main81130-06B70iASV50..GL,GLX201504

main81130-06B80iASV50..SE201504-201605

main81145-06B40iGSV50..GD201202-201412

sub81145-06B42

main81145-06B42iGSV50..GD201412-201504

main81145-33A80iGSV50..PRD201504

main81145-33A90iGSV50..GD,SE201504

81135CCOVER, HEADLAMP BACK, NO.1

main81135-06810iASV50,AVV50201110-201504

main81135-06B50iASV50..SE201504-201605

81135DCOVER, HEADLAMP BACK, NO.2

main81136-06810iASV50,AVV50201110-201504

81175UNIT ASSY, HEADLAMP, LH

main81170-06810iASV50..ALT,ATRS201110-201307

main81170-06811iASV50,AVV50..ALT,ATRS,HBD201307-201504

main81170-06820iASV50..ATRSX201110-201307

main81170-06821iASV50..ATRSX201307-201504

main81170-06830iAVV50201201-201307

main81170-06840iASV50..GL,GLX201110-201307

main81170-06841iASV50..GL,GLX201307-201504

main81170-06850iASV50..SE201110-201307

main81170-06851iASV50..SE201307-201504

main81170-06B10iGSV50..ARL201202-201412

sub81170-06B11

main81170-06B11iGSV50..SPVS201412-201605

main81170-06B20iGSV50..SE,TOU201202-201307

main81170-06B21iGSV50..SE,TOU201307-201412

sub81170-06B22

main81170-06B22iGSV50..SE,TOU201412-201504

main81170-06B50iASV50..ALT201504

DECONTENT PACKAGE

main81170-06B60iASV50,AVV50..ATRS,ATRSX,HBD201504

main81170-06B70iASV50..GL,GLX201504

main81170-06B80iASV50..SE201504-201605

main81185-06B40iGSV50..GD201202-201412

sub81185-06B41

main81185-06B41iGSV50..GD201412-201504

main81185-33A30iGSV50..PRD201504

main81185-33A40iGSV50..GD,SE201504

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGSV50201202-201504

12V 21W,AMBER

main99132-8Y001iASV50,AVV50201110-201504

12V 21W,YELLOW

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81125-20A30iGSV50..GD,PRD,SE201504

main81139-06810iASV50,AVV50201110-201504

main90069-81073iGSV50..SE,TOU201202-201309

LH

main90075-60028iGSV50..ATX,TOU201202-201605

main90075-60028iGSV50..ARL201202-201309

RH

main90075-60028iGSV50..ARL201202-201309

LIMITED PACKAGE&HEADLAMP-DISCHARGE & AFS

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGSV50201110-201504

12V 5W

90105T0151

main90105-T0151

9015950388

main90159-50388

90189T0007

main90189-T0007

12 parts on this diagram · 7 diagrams in section
