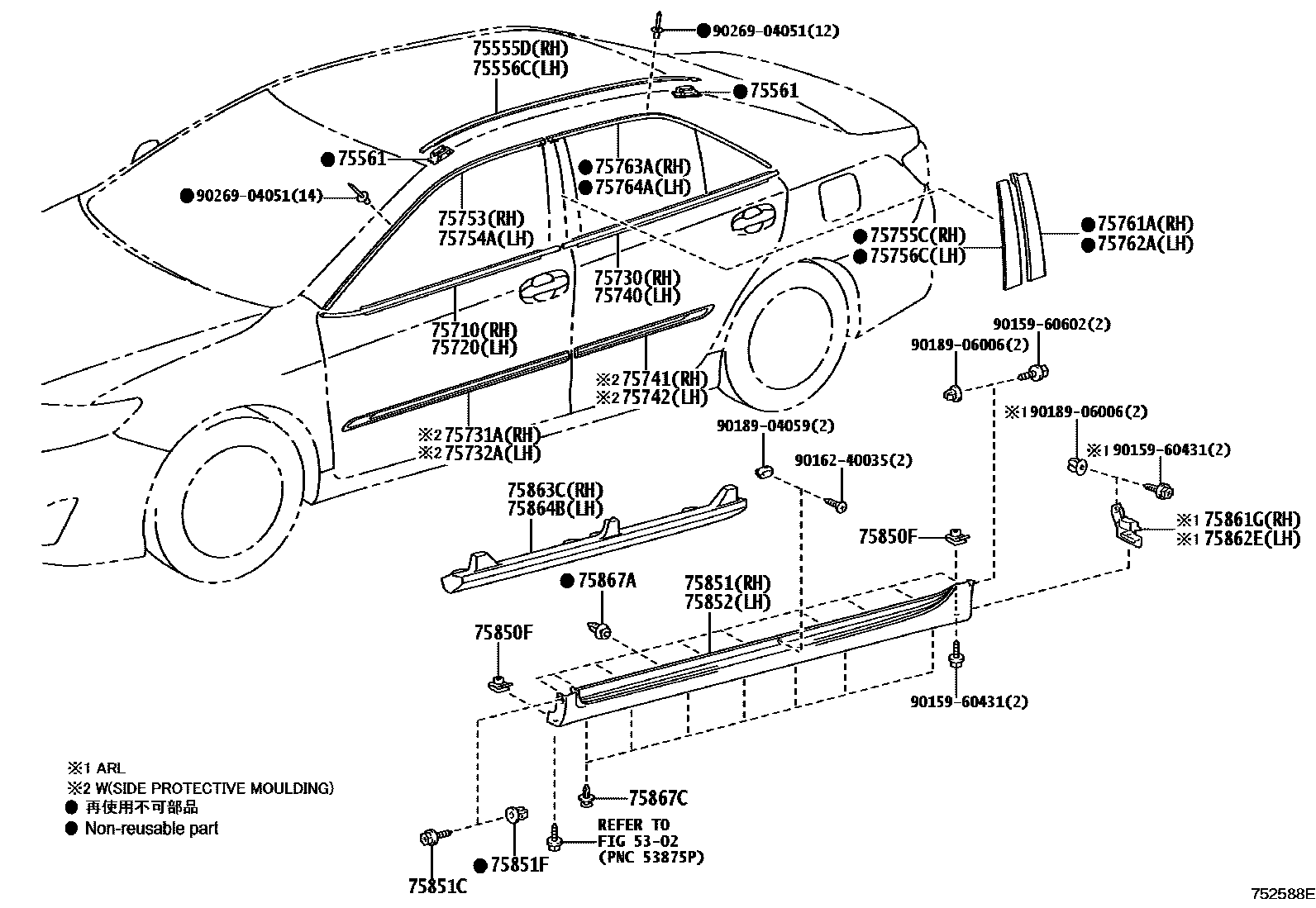

SIDE MOULDING

0001 1 0004 1 0006 1

5302

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-33050iASV50,AVV50,GSV50201110-201504

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-33050iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-YC020×4iASV50..6F201110-201211

sub75561-33030

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-06140iASV50,AVV50,GSV50201110-201504

sub75710-33140

main75710-06141iGSV50201504

main75710-06190iASV50..SE201504-201605

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-06140iASV50,AVV50,GSV50201110-201504

sub75720-33140

main75720-06141iGSV50201504

main75720-06190iASV50..SE201504-201605

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-06120iASV50,AVV50,GSV50201110-201504

sub75730-33140

main75730-06121iGSV50201504

main75730-06170iASV50..SE201504-201605

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-YY060-A0iASV50,GSV50..GL,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,DIAMOND WHITE,061

main75731-YY060-A1iGSV50..GD,TOU201504-201710

SIDE PROTECTIVE MOULDING-WITH,WHITE PEARL CS.,070

main75731-YY060-B0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,SILVER ME.,1F7

main75731-YY060-B1iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,GRAY ME.,1G3

main75731-YY060-C0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,ATTITUDE BLACK MC.,218

main75731-YY060-D0iGSV50..SE201504-201605

SIDE PROTECTIVE MOULDING-WITH,RED M.M.,3R3

main75731-YY060-D1iGSV50..SE201605-201710

SIDE PROTECTIVE MOULDING-WITH,SUPER RED 5,3P0

main75731-YY060-E0iASV50..6FC..GL201110-201504

SIDE PROTECTIVE MOULDING-WITH,YANMER BEIGE,4Q0

main75731-YY060-E1iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,BRONZE M.M.,4S2

main75731-YY060-J0iASV50,GSV50..GD,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,BLUE M.M.,8L5

main75731-YY060-J1iASV50,GSV50..GD,GL,GLX,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,LT.BLUE ME.,8S4

main75731-YY060-J2iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,DK.BLUE M.M.,8W6

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-YY060-A0iASV50,GSV50..GL,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,DIAMOND WHITE,061

main75732-YY060-A1iASV50,GSV50..GD,GL,GLX,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,WHITE PEARL CS.,070

main75732-YY060-B0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,SILVER ME.,1F7

main75732-YY060-B1iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,GRAY ME.,1G3

main75732-YY060-C0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,ATTITUDE BLACK MC.,218

main75732-YY060-D0iASV50,GSV50..GD,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,RED M.M.,3R3

main75732-YY060-D1iGSV50..SE201605-201710

SIDE PROTECTIVE MOULDING-WITH,SUPER RED 5,3P0

main75732-YY060-E0iASV50..6FC..GL201110-201504

SIDE PROTECTIVE MOULDING-WITH,YANMER BEIGE,4Q0

main75732-YY060-E1iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,BRONZE M.M.,4S2

main75732-YY060-J0iASV50,GSV50..GD,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,BLUE M.M.,8L5

main75732-YY060-J1iASV50,GSV50..GD,GL,GLX,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,LT.BLUE ME.,8S4

main75732-YY060-J2iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,DK.BLUE M.M.,8W6

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-06120iASV50,AVV50,GSV50201110-201504

sub75740-33140

main75740-06121iGSV50201504

main75740-06170iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-YY060-A0iGSV50..SE,TOU201504-201710

SIDE PROTECTIVE MOULDING-WITH,DIAMOND WHITE,061

main75741-YY060-A1iGSV50..GD,TOU201504-201710

SIDE PROTECTIVE MOULDING-WITH,WHITE PEARL CS.,070

main75741-YY060-B0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,SILVER ME.,1F7

main75741-YY060-B1iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,GRAY ME.,1G3

main75741-YY060-C0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,ATTITUDE BLACK MC.,218

main75741-YY060-D0iGSV50..SE201504-201605

SIDE PROTECTIVE MOULDING-WITH,RED M.M.,3R3

main75741-YY060-D1iGSV50..SE201605-201710

SIDE PROTECTIVE MOULDING-WITH,SUPER RED 5,3P0

main75741-YY060-E0iASV50..6FC..GL201110-201504

SIDE PROTECTIVE MOULDING-WITH,YANMER BEIGE,4Q0

main75741-YY060-E1iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,BRONZE M.M.,4S2

main75741-YY060-J0iASV50,GSV50..GD,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,BLUE M.M.,8L5

main75741-YY060-J1iASV50,GSV50..GD,GL,GLX,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,LT.BLUE ME.,8S4

main75741-YY060-J2iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,DK.BLUE M.M.,8W6

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-YY060-A0iASV50,GSV50..GL,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,DIAMOND WHITE,061

main75742-YY060-A1iGSV50..GD,TOU201504-201710

SIDE PROTECTIVE MOULDING-WITH,WHITE PEARL CS.,070

main75742-YY060-B0iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,SILVER ME.,1F7

main75742-YY060-B1iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,GRAY ME.,1G3

main75742-YY060-C0iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,ATTITUDE BLACK MC.,218

main75742-YY060-D0iASV50,GSV50..GD,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,RED M.M.,3R3

main75742-YY060-D1iGSV50..SE201605-201710

SIDE PROTECTIVE MOULDING-WITH,SUPER RED 5,3P0

main75742-YY060-E0iASV50..6FC..GL201110-201504

SIDE PROTECTIVE MOULDING-WITH,YANMER BEIGE,4Q0

main75742-YY060-E1iASV50,GSV50..GCC201110-201504

SIDE PROTECTIVE MOULDING-WITH,BRONZE M.M.,4S2

main75742-YY060-J0iASV50,GSV50..GD,GLX,SE,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,BLUE M.M.,8L5

main75742-YY060-J1iASV50,GSV50..GD,GL,GLX,TOU201110-201504

SIDE PROTECTIVE MOULDING-WITH,LT.BLUE ME.,8S4

main75742-YY060-J2iGSV50..GCC201504-201710

SIDE PROTECTIVE MOULDING-WITH,DK.BLUE M.M.,8W6

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-06090iASV50..6F201110-201211

sub75753-33080

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-06090iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

sub75754-33080

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-33050iGSV50201202-201504

main75755-33060iASV50..6F201110-201211

main75755-33080iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-33050iGSV50201504

main75756-33060iASV50,AVV50..ATM,CVT201110-201504

main75756-33080iASV50..SE201504-201605

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-33050iGSV50201202-201504

NO PAINT REQ.

main75761-33060iASV50,AVV50..ATM,CVT201110-201504

NO PAINT REQ.

main75761-33080iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-33050iGSV50201504-201710

NO PAINT REQ.

main75762-33060iASV50..6F201110-201211

NO PAINT REQ.

main75762-33080iASV50..SE201504-201605

NO PAINT REQ.

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-06100iASV50..6F201110-201211

sub75763-33100

main75763-06150iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

sub75763-06140

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-06100iASV50,AVV50,GSV50..ATM,CVT201110-201504

sub75764-33100

main75764-06150iASV50..SE201504-201605

sub75764-06140

75850FNUT, NO.1

main90183-06019×4iASV50,AVV50,GSV50201110-201504

75851MOULDING, ROCKER PANEL, RH

main75851-06915iASV50,AVV50..(ATM,CVT)..(ALT,GL,HBD)201110-201504

main75851-06916iASV50..6F..(GLX,SE)201110-201211

main75851-06917iGSV50..ATX,GD,PRD,TOU201202-201504

main75851-06935iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

75851CSCREW(FOR BODY ROCKER PANEL MOULDING)

main90159-60602×4iASV50,AVV50201504-201710

75851FGROMMET(FOR BODY ROCKER PANEL MOULDING)

main90189-06065×2iASV50,AVV50,GSV50201110-201504

75852MOULDING, ROCKER PANEL, LH

main75852-06915iASV50,AVV50..(ATM,CVT)..(ALT,GL,HBD)201110-201504

main75852-06916iASV50,GSV50..6FC..(ATRS,ATRSX,SE,SPVS)201110-201504

main75852-06917iGSV50..GD,PRD,TOU201504

main75852-06935iASV50..SE201504-201605

75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-06070iASV50,AVV50,GSV50..ARL201110-201504

sub75861-06090

75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-06080iASV50,AVV50,GSV50..ARL201110-201504

sub75862-06100

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main75863-06030iASV50..6F..GL201110-201211

main75863-06110iGSV50..ATX,SE,SPVS201504

main75863-06160iGSV50..ATX,GD,PRD,TOU201202-201504

sub75863-33020

main75863-06190iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

sub75863-06180

75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4

main75864-06030iASV50,AVV50..(ATM,CVT)..(ALT,GL,HBD)201110-201504

main75864-06110iASV50..6F..(GLX,SE)201110-201211

main75864-06160iGSV50..ATX,GD,PRD,TOU201202-201504

sub75864-33020

main75864-06190iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504

sub75864-06180

75867ACLIP, ROCKER PANEL MOULDING

main75867-33030×20iASV50,AVV50,GSV50..ATM,CVT201110-201504

75867CCLIP, ROCKER PANEL MOULDING

main75867-33050×14iASV50..6F201110-201211

9015960431

main90159-60431

9015960602

main90159-60602

9016240035

main90162-40035

9018904059

main90189-04059

9018906006

main90189-06006

9026904051

main90269-04051

37 parts on this diagram · 3 diagrams in section
