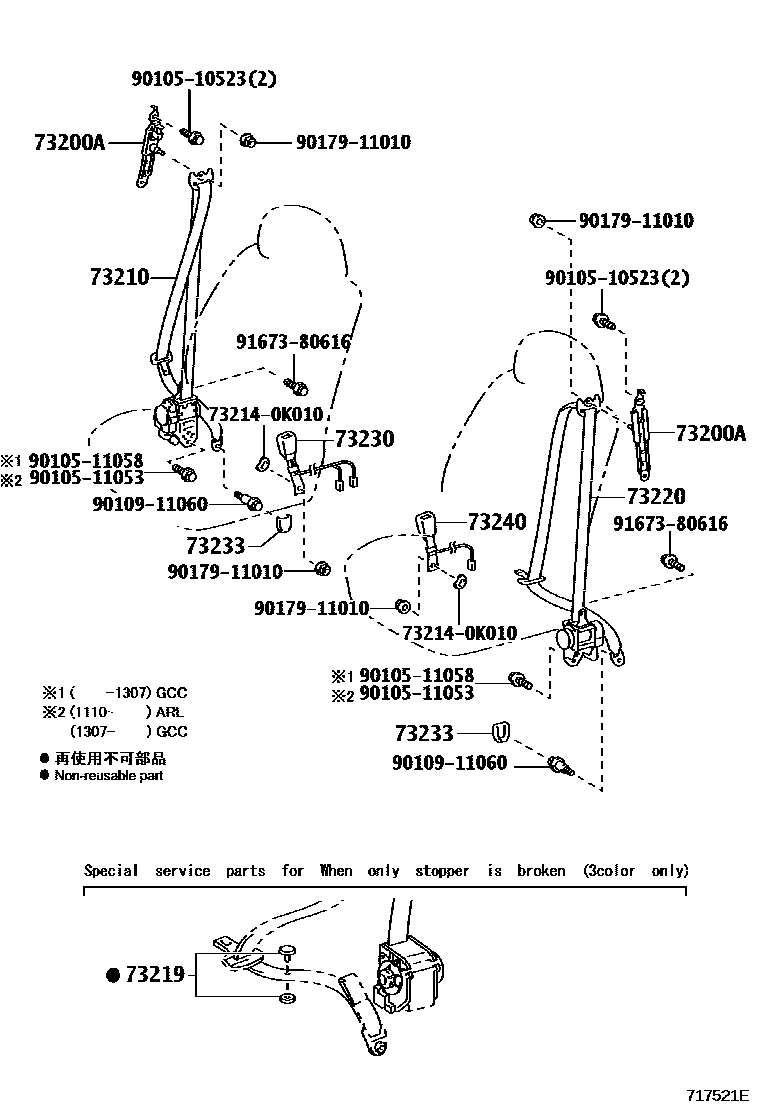

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iASV50,AVV50,GSV50..ATM,CVT201110-201605

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06310-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main73210-06310-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main73210-06310-C2iASV50,AVV50..ALT,ATRS,ATRSX,GL,HBD201110-201710

BLACK,TRIM2#

main73210-06390-A0iGSV50..PRD201202-201710

IVORY,TRIM0#

main73210-06390-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main73210-06390-C0iGSV50..ARL201202-201710

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iASV50..6F201110-201605

BLACK

main73219-33020iASV50..SE201110-201605

GRAY

main73219-33030iASV50,AVV50,GSV50..ATM,CVT201110-201605

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06300-A0iASV50,AVV50,GSV50..ATRS,GD,GL,GLX,HBD,PRD,SE,TOU201110-201710

IVORY,TRIM0#

main73220-06300-B0iGSV50..ATX201110-201710

GRAY,TRIM1#

main73220-06300-C2iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06420-C0iASV50..ALT201110-201710

BLACK,TRIM2#

main73230-06430-A0iASV50,GSV50..GCC201307-201710

IVORY,TRIM0#

main73230-06430-B0iASV50,GSV50..GD,GL,GLX,TOU201307-201710

GRAY,TRIM1#

main73230-06430-C0iASV50..GL201307-201710

BLACK,TRIM2#

main73230-06440-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main73230-06440-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main73230-06440-C0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

main73230-06630-A0iGSV50..GD,SE201504-201710

IVORY,TRIM0#

main73230-06650-A0iASV50,GSV50..GCC201110-201307

IVORY,TRIM0#

main73230-06650-B0iASV50,GSV50..GD,GL,GLX,TOU201110-201307

GRAY,TRIM1#

main73230-06650-C0iASV50..6FC..GL201110-201307

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-A2iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

sub73233-60020

sub73233-35010

main73233-60020-A2iGSV50..PRD201202-201605

IVORY,TRIM00

sub73233-60020

sub73233-35010

main73233-60020-B1iASV50,GSV50..GD,GL,GLX,TOU201110-201710

GRAY,TRIM1#

sub73233-60020

sub73233-35010

main73233-60020-C0iASV50..ATRS201110-201610

BLACK,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-C0iGSV50..ATX201202-201605

BLACK,TRIM00,2#

sub73233-60020

sub73233-35010

main73233-60020-C0iASV50..ATRS201605-201610

BLACK,TRIM0#,2#

sub73233-60020

sub73233-35010

main73233-60020-C1iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,SPVS201610-201710

BLACK,TRIM2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06420-A0iASV50..GL201110-201710

IVORY,TRIM0#

main73230-06420-B0iASV50..GL201110-201710

GRAY,TRIM1#

main73230-06420-C0iASV50..6FC..GL201110-201710

BLACK,TRIM2#

main73230-06430-A0iASV50,AVV50..ATRS,HBD201110-201504

IVORY,TRIM0#

main73230-06430-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main73230-06430-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,HBD201110-201710

BLACK,TRIM2#

main73230-06440-A0iASV50,GSV50..GD,GLX,SE,TOU201110-201710

IVORY,TRIM0#

main73230-06440-B0iASV50,GSV50..GD,GLX201110-201710

GRAY,TRIM1#

main73230-06630-A0iGSV50..PRD201202-201710

IVORY,TRIM0#

main73230-06630-C0iGSV50..PRD,SPVS201202-201710

BLACK,TRIM2#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

9010510523

main90105-10523

9010511053

main90105-11053

9010511058

main90105-11058

9010911060

main90109-11060

9017911010

main90179-11010

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section
