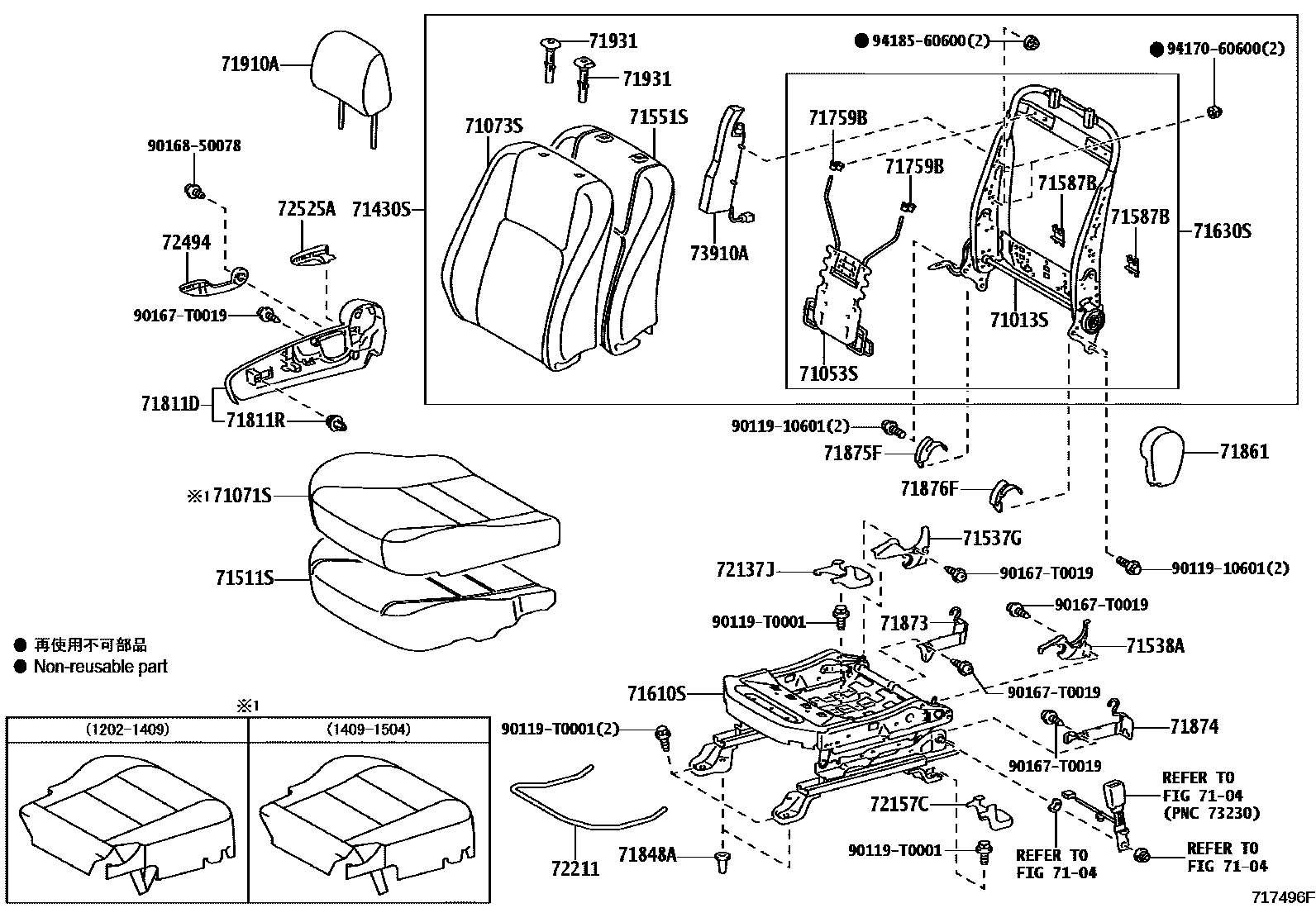

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0003 1DRIVER SEAT W(POWER SEAT) 0004 1DRIVER SEAT 0005 1DRIVER SEAT W(POWER SEAT) 0006 1DRIVER SEAT W(POWER SEAT & *80007 1PASSENGER SEAT 0008 1PASSENGER SEAT W(POWER SEAT) 0010 1PASSENGER SEAT 0011 1PASSENGER SEAT W(*80, SIDE) 0013 1PASSENGER W(POWER SEAT & *80,

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-06140iASV50..GCC201110-201504

main71013-06150iGSV50..TOU201202-201504

main71013-06161iGSV50..SPVS201605

main71013-06161iGSV50..SPVS201202-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW)

main71013-06161iGSV50..PRD201504

LIMITED PACKAGE

main71013-06161iGSV50..PRD201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER 1

main71013-06161iASV50..ATRSX201504

THAILAND SPEC

main71013-06180iGSV50..GD,SE201504

main71013-06390iASV50..ATRS201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

main71013-06390iASV50..ATRS201504

DECONTENT PACKAGE

main71013-06390iASV50..ALT201110-201504

main71013-06410iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD201110-201605

7104

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-06070iASV50,GSV50..ALT,GD,GL,GLX,SE,TOU201110-201504

main71053-06070iASV50,GSV50..ALT,GD,GL,GLX,SE,TOU201504

DECONTENT PACKAGE

main71053-06070iASV50,GSV50..ALT,GD,GL,GLX,SE,TOU201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-06D80-A1iASV50..GL201110-201307

IVORY,TRIM0#

main71071-06D80-B1iASV50..GL201110-201307

GRAY,TRIM1#

main71071-06D80-C1iASV50..6FC..GL201110-201307

BLACK,TRIM2#

main71071-06D81-A1iASV50..GL201307-201409

IVORY,TRIM0#

main71071-06D81-B1iASV50..GL201307-201409

GRAY,TRIM1#

main71071-06D81-C1iASV50..GL201307-201409

BLACK,TRIM2#

main71071-06D82-A2iASV50..GL201409-201504

IVORY,TRIM0#

main71071-06D82-B2iASV50..GL201409-201504

GRAY,TRIM1#

main71071-06D82-C2iASV50..GL201409-201504

BLACK,TRIM2#

main71071-06D90-B2iASV50..ALT201110-201409

GRAY/BLACK,TRIM21

main71071-06D90-C1iASV50..ALT201110-201409

BLACK/BLACK,TRIM20

main71071-06D92-B3iASV50..ALT201409-201504

GRAY/BLACK,TRIM21

main71071-06D92-C2iASV50..ATRS201409-201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK/BLACK,TRIM2#

main71071-06D92-C2iASV50..ALT201409-201504

BLACK/BLACK,TRIM20

main71071-06E00-A2iASV50,GSV50..GD,GLX,TOU201110-201307

IVORY,TRIM0#

main71071-06E00-B2iASV50,GSV50..GD,GLX,TOU201110-201307

GRAY,TRIM1#

main71071-06E01-A2iASV50,GSV50..GD,GLX,TOU201307-201405

IVORY,TRIM0#

main71071-06E01-B2iASV50,GSV50..GD,GLX,TOU201307-201405

GRAY,TRIM1#

main71071-06E10-A2iASV50,AVV50..ATRS,HBD201110-201307

IVORY,TRIM0#

main71071-06E10-C2iASV50,AVV50..ATRS,HBD201110-201405

BLACK,TRIM2#

main71071-06E31-A3iGSV50..PRD201202-201409

IVORY,TRIM0#

main71071-06E31-C3iGSV50..PRD201202-201409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71071-06E31-C3iGSV50..ATX201202-201409

BLACK,TRIM2#

main71071-06E32-A3iGSV50..PRD201409-201504

IVORY,TRIM0#

main71071-06E32-C3iGSV50..PRD201409-201504

BLACK,TRIM2#

main71071-06E32-C3iGSV50..ATX201409-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71071-06E60-A1iASV50,GSV50..SE201110-201307

IVORY,TRIM0#

main71071-06E61-A1iASV50,GSV50..SE201307-201409

IVORY,TRIM0#

main71071-06E70-C1iGSV50..SPVS201202-201409

BLACK,TRIM2#

main71071-06J10-D2iASV50..ATRSX201110-201409

DK TERRACOTTA,TRIM2#

main71071-06J12-D2iGSV50..SPVS201409-201504

DK TERRACOTTA,TRIM2#

main71071-06J12-D2iASV50..ATRSX201409-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW),DK TERRACOTTA,TRIM2#

main71071-06J40-B2iGSV50..ATX201202-201307

GRAY,TRIM1#

main71071-06J40-C1iGSV50..ATX201202-201409

BLACK,TRIM2#

main71071-06J42-C2iGSV50..ATX201409-201504

BLACK,TRIM2#

main71071-06J80-A4iGSV50..GD201504-201710

IVORY,TRIM0#

main71071-06J80-B4iGSV50..GD201504-201710

GRAY,TRIM1#

main71071-06K00-C2iASV50..ATRS201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71071-06K00-C2iASV50..ATRS201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71071-06K00-C2iASV50..ALT201504-201710

BLACK,TRIM2#

main71071-06L60-A2iASV50..GL201504-201710

IVORY,TRIM0#

main71071-06L60-B2iASV50..GL201504-201710

GRAY,TRIM1#

main71071-06L60-C2iASV50..GL201504-201710

BLACK,TRIM2#

main71071-06L70-C2iGSV50..SPVS201504-201710

BLACK,TRIM2#

main71071-06L80-C2iGSV50..ATX201504-201710

BLACK,TRIM2#

main71071-06L90-A3iGSV50..SE201504-201604

IVORY,TRIM0#

sub71071-06L91

main71071-06L91-A3iGSV50..SE201605-201710

IVORY,TRIM0#

main71071-06M50-A1iGSV50..PRD201504-201710

IVORY,TRIM0#

main71071-06M50-C1iASV50..ATRS201504-201710

LIMITED PACKAGE,BLACK,TRIM2#

main71071-06M50-C1iASV50..ATRS201504-201710

SEAT COVER MATERIAL-LEATHER 1,BLACK,TRIM2#

main71071-06M50-C1iASV50..ATRS201504-201710

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER 1,BLACK,TRIM2#

main71071-06M50-C1iASV50..ATRS201504-201710

BLACK,TRIM2#

main71071-06M70-A1iASV50,GSV50..GD,GLX,TOU201409-201504

IVORY,TRIM0#

main71071-06M70-A2iASV50,GSV50..GLX,TOU201504-201710

IVORY,TRIM0#

main71071-06M70-B1iASV50,GSV50..GD,GLX201409-201504

GRAY,TRIM1#

main71071-06M70-B2iASV50..GLX201504-201710

GRAY,TRIM1#

main71071-06M80-C1iASV50,AVV50..ATRS,HBD201409-201504

BLACK,TRIM2#

main71071-06M80-C2iASV50,AVV50..ATRS,HBD201504-201710

BLACK,TRIM2#

main71071-06M90-C1iASV50,AVV50..ATRS,HBD201405-201409

BLACK,TRIM2#

main71071-06N00-A1iASV50,GSV50..GD,GLX,TOU201405-201409

IVORY,TRIM0#

main71071-06N00-B1iASV50,GSV50..GD,GLX201405-201409

GRAY,TRIM1#

main71071-06N10-C1iGSV50..SPVS201409-201504

BLACK,TRIM2#

main71071-06N10-C3iGSV50..SPVS201504-201605

BLACK,TRIM2#

main71071-06N20-A1iASV50,GSV50..SE201409-201504

IVORY,TRIM0#

main71071-06N20-A3iASV50..SE201504-201605

IVORY,TRIM0#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-06G60-A1iASV50..GL201110-201409

IVORY,TRIM0#

main71073-06G60-B1iASV50..GL201110-201409

GRAY,TRIM1#

main71073-06G60-C1iASV50..6FC..GL201110-201409

BLACK,TRIM2#

main71073-06G61-A1iASV50..GL201409-201504

IVORY,TRIM0#

main71073-06G61-B1iASV50..GL201409-201504

GRAY,TRIM1#

main71073-06G61-C1iASV50..GL201409-201504

BLACK,TRIM2#

main71073-06G70-B2iASV50..ALT201110-201409

GRAY/BLACK,TRIM21

main71073-06G70-B3iGSV50..ATX201202-201307

GRAY/GRAY,TRIM1#

main71073-06G70-C1iGSV50..ATX201202-201409

BLACK/BLACK,TRIM2#

main71073-06G70-C1iASV50..ALT201110-201409

BLACK/BLACK,TRIM20

main71073-06G71-B2iASV50..ALT201409-201504

GRAY/BLACK,TRIM21

main71073-06G71-C1iGSV50..ATX201409-201504

BLACK/BLACK,TRIM20

main71073-06G71-C1iASV50..ATRS201409-201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK/BLACK,TRIM2#

main71073-06G71-C1iASV50..ATRS201409-201504

BLACK/BLACK,TRIM2#

main71073-06G90-A4iASV50,AVV50..ATRS,HBD201110-201307

IVORY,TRIM0#

main71073-06G90-C1iASV50,AVV50..ATRS,HBD201110-201405

BLACK,TRIM2#

main71073-06J20-A2iASV50..GLX201110-201405

IVORY,TRIM0#

main71073-06J20-B2iASV50..GLX201110-201405

GRAY,TRIM1#

main71073-06J50-A2iASV50..SE201110-201409

IVORY,TRIM0#

main71073-06J51-A2iASV50..SE201409-201504

IVORY,TRIM0#

main71073-06J60-A2iGSV50..SE201202-201409

IVORY,TRIM0#

main71073-06J60-C1iGSV50..SPVS201202-201405

BLACK,TRIM2#

main71073-06J61-A2iGSV50..SE201409-201504

IVORY,TRIM0#

main71073-06J61-A2iASV50..SE201409-201504

VSC-WITH,IVORY,TRIM0#

main71073-06M10-D4iASV50..ATRSX201110-201405

DK TERRACOTTA,TRIM2#

main71073-06M30-A2iGSV50..GD,TOU201202-201405

IVORY,TRIM0#

main71073-06M30-B2iGSV50..GD,TOU201202-201405

GRAY,TRIM1#

main71073-06M40-A4iGSV50..PRD201202-201405

IVORY,TRIM0#

main71073-06M40-C3iGSV50..PRD201202-201405

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71073-06M40-C3iGSV50..ATX201202-201405

BLACK,TRIM2#

main71073-06N20-A1iASV50..GL201504-201710

IVORY,TRIM0#

main71073-06N20-B1iASV50..GL201504-201710

GRAY,TRIM1#

main71073-06N20-C1iASV50..GL201504-201710

BLACK,TRIM2#

main71073-06N30-C1iAVV50201504-201710

BLACK,TRIM2#

main71073-06N30-C1iASV50..ATRS201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71073-06N30-C1iAVV50201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71073-06R10-C3iGSV50..SPVS201504-201710

BLACK,TRIM2#

main71073-06R80-A2iASV50..GLX201504-201710

IVORY,TRIM0#

main71073-06R80-B2iASV50..GLX201504-201710

GRAY,TRIM1#

main71073-06R90-A2iASV50..SE201504-201605

IVORY,TRIM0#

main71073-06S00-A2iGSV50..SE201504-201604

IVORY,TRIM0#

sub71073-06S01

main71073-06S01-A2iGSV50..SE201605-201710

IVORY,TRIM0#

main71073-06S70-C2iASV50,AVV50..ATRS,HBD201504-201710

BLACK,TRIM2#

main71073-06S80-C2iGSV50..SPVS201504-201605

BLACK,TRIM2#

main71073-06T00-A1iGSV50..PRD201504-201710

IVORY,TRIM0#

main71073-06T00-C1iGSV50..PRD201504-201710

BLACK,TRIM2#

main71073-06T10-A0iGSV50..GD,TOU201409-201504

IVORY,TRIM0#

main71073-06T10-B0iGSV50..GD201409-201504

GRAY,TRIM1#

main71073-06T80-C1iASV50,AVV50..ATRS,HBD201405-201409

BLACK,TRIM2#

main71073-06T81-C1iASV50,AVV50..ATRS,HBD201409-201504

BLACK,TRIM2#

main71073-06U00-D0iASV50..ATRSX201405-201409

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW),DK TERRACOTTA,TRIM2#

main71073-06U00-D0iGSV50..SPVS201405-201409

DK TERRACOTTA,TRIM2#

main71073-06U01-D0iGSV50..SPVS201409-201504

DK TERRACOTTA,TRIM2#

main71073-06U01-D0iASV50..ATRSX201409-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW),DK TERRACOTTA,TRIM2#

main71073-06U30-A1iASV50..GLX201405-201409

IVORY,TRIM0#

main71073-06U30-B1iASV50..GLX201405-201409

GRAY,TRIM1#

main71073-06U31-A1iASV50..GLX201409-201504

IVORY,TRIM0#

main71073-06U31-B1iASV50..GLX201409-201504

GRAY,TRIM1#

main71073-06U50-A1iGSV50..GD,TOU201405-201409

IVORY,TRIM0#

main71073-06U50-B1iGSV50..GD201405-201409

GRAY,TRIM1#

main71073-06U60-A0iGSV50..PRD201405-201409

IVORY,TRIM0#

main71073-06U60-C0iGSV50..PRD201405-201409

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71073-06U60-C0iGSV50..PRD201405-201409

BLACK,TRIM2#

main71073-06U61-A0iGSV50..PRD201409-201504

IVORY,TRIM0#

main71073-06U61-C0iGSV50..ATX201409-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71073-06U61-C0iGSV50..PRD201409-201504

BLACK,TRIM2#

main71073-06U70-C0iGSV50..SPVS201405-201409

BLACK,TRIM2#

main71073-06U71-C0iGSV50..SPVS201409-201504

BLACK,TRIM2#

main71073-06V70-A0iGSV50..GD,TOU201504-201710

IVORY,TRIM0#

main71073-06V70-B0iGSV50..GD201504-201710

GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-06C20-A2iGSV50..SE201202-201409

IVORY,TRIM0#

main71430-06C21-A0iASV50..SE201409-201504

VSC-WITH,IVORY,TRIM0#

main71430-06C21-A0iGSV50..SE201409-201504

IVORY,TRIM0#

main71430-06C30-C2iASV50..ALT201110-201409

BLACK/BLACK,TRIM20

main71430-06C30-C3iASV50..ALT201110-201409

GRAY/BLACK,TRIM21

main71430-06C31-C0iASV50..ALT201409-201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK/BLACK,TRIM2#

main71430-06C31-C0iASV50..ALT201409-201504

BLACK/BLACK,TRIM20

main71430-06C31-C1iASV50..ALT201409-201504

GRAY/BLACK,TRIM21

main71430-06C40-A3iASV50,AVV50..ATRS,HBD201110-201307

IVORY,TRIM0#

main71430-06C40-C3iASV50,AVV50..ATRS,HBD201110-201405

BLACK,TRIM2#

main71430-06C50-C6iASV50..ATRSX201110-201405

BLACK,TRIM2#

main71430-06C60-C2iGSV50..SPVS201202-201405

BLACK,TRIM2#

main71430-06F60-B1iGSV50..ATX201202-201307

GRAY/GRAY,TRIM1#

main71430-06F60-C2iGSV50..ATX201202-201409

BLACK/BLACK,TRIM2#

main71430-06F61-C0iGSV50..ATX201409-201504

BLACK/BLACK,TRIM2#

main71430-06F70-A4iGSV50..PRD201202-201405

IVORY,TRIM0#

main71430-06F70-C4iGSV50..PRD201202-201405

BLACK,TRIM2#

main71430-06F90-A2iGSV50..GD,TOU201202-201405

IVORY,TRIM0#

main71430-06F90-B2iGSV50..GD,TOU201202-201405

GRAY,TRIM1#

main71430-06L00-C1iASV50..ALT201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71430-06L00-C1iASV50..ATRS201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71430-06L00-C1iASV50..ATRS201504-201710

BLACK,TRIM2#

main71430-06L10-A1iASV50..GL201504-201710

IVORY,TRIM0#

main71430-06L10-B1iASV50..GL201504-201710

GRAY,TRIM1#

main71430-06L10-C1iASV50..GL201504-201710

BLACK,TRIM2#

main71430-06L20-C1iGSV50..ATX201504-201710

BLACK,TRIM2#

main71430-06L30-A4iGSV50..GD201504-201710

IVORY,TRIM0#

main71430-06L30-B4iGSV50..GD201504-201710

GRAY,TRIM1#

main71430-06L40-C3iGSV50..SPVS201605-201710

BLACK,TRIM2#

main71430-06L50-C3iASV50..ATRSX201504-201710

BLACK,TRIM2#

main71430-06L60-A2iGSV50..SE201504-201604

IVORY,TRIM0#

main71430-06L61-A0iGSV50..SE201605-201710

IVORY,TRIM0#

main71430-06L70-C3iASV50,AVV50..ATRS,HBD201504-201710

BLACK,TRIM2#

main71430-06M40-C3iGSV50..SPVS201504-201605

BLACK,TRIM2#

main71430-06M70-A1iGSV50..PRD201504-201710

IVORY,TRIM0#

main71430-06M70-C1iGSV50..PRD201504-201710

BLACK,TRIM2#

main71430-06M90-A0iGSV50..GD,TOU201409-201504

IVORY,TRIM0#

main71430-06M90-B0iGSV50..GD201409-201504

GRAY,TRIM1#

main71430-06N10-C1iASV50,AVV50..ATRS,HBD201405-201409

BLACK,TRIM2#

main71430-06N11-C0iASV50,AVV50..ATRS,HBD201409-201504

BLACK,TRIM2#

main71430-06N30-C0iASV50..ATRSX201405-201409

BLACK,TRIM2#

main71430-06N31-C0iASV50..ATRSX201409-201504

BLACK,TRIM2#

main71430-06N60-C0iGSV50..SPVS201405-201409

BLACK,TRIM2#

main71430-06N61-C0iGSV50..SPVS201409-201504

BLACK,TRIM2#

main71430-06P10-A1iGSV50..GD,TOU201405-201409

IVORY,TRIM0#

main71430-06P10-B1iGSV50..GD201405-201409

GRAY,TRIM1#

main71430-06P20-A0iGSV50..PRD201405-201409

IVORY,TRIM0#

main71430-06P20-C0iGSV50..PRD201405-201409

BLACK,TRIM2#

main71430-06P21-A0iGSV50..PRD201409-201504

IVORY,TRIM0#

main71430-06P21-C0iGSV50..PRD201409-201504

BLACK,TRIM2#

main71430-06P30-A0iGSV50..TOU201504-201710

IVORY,TRIM0#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-06300iGSV50..SE201504

main71501-06310iASV50,GSV50..GD,GL,GLX,TOU201307-201504

main71501-06320iASV50,GSV50..SE201307-201605

main71501-06330iGSV50..GD201504

main71511-06480iASV50,GSV50..GD,GL,GLX,TOU201110-201307

main71511-06490iASV50..ATRS201411-201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

main71511-06490iASV50..ATRS201504

DECONTENT PACKAGE

main71511-06490iASV50..ALT201110-201305

main71511-06491iASV50..ALT201305-201411

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

sub71511-06490

main71511-06500iASV50,GSV50..SE201110-201307

main71511-06510iASV50,GSV50..ATRSX,SPVS201110-201504

main71511-06511iASV50,GSV50..ATRSX,SPVS201305-201411

sub71511-06510

main71511-06520iASV50,AVV50,GSV50..ATRS,ATX,HBD,PRD201110-201504

main71511-06521iASV50,AVV50,GSV50..ATRS,ATX,HBD,PRD201305-201411

sub71511-06520

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-06020-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main71537-06020-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main71537-06020-C0iASV50..GL201110-201710

BLACK,TRIM2#

main71537-06030-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main71537-06030-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main71537-06030-C0iASV50,AVV50,GSV50..ARL201110-201710

BLACK,TRIM2#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-06020-A0iASV50,AVV50,GSV50..ATRS,HBD,PRD201110-201710

IVORY,TRIM0#

main71538-06020-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main71538-06020-C0iASV50,AVV50,GSV50..ARL201110-201710

BLACK,TRIM2#

main71538-06040-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main71538-06040-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main71538-06040-C0iASV50..6FC..GL201110-201710

BLACK,TRIM2#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-06370iASV50..GL,GLX201110-201504

main71551-06380iASV50,AVV50,GSV50..ALT,ATRS,ATX,GD,HBD,PRD,TOU201504

sub71551-06690

main71551-06380iASV50,AVV50,GSV50..ALT,ATRS,ATX,GD,HBD,PRD,TOU201110-201504

VSC-WITH

sub71551-06690

main71551-06390iASV50..SE201110-201605

main71551-06400iASV50..6FC..SE201110-201504

VSC-WITH

main71551-06400iASV50..ATRSX;GSV50..SE,SPVS201504

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-52030iASV50,AVV50,GSV50201110-201504

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-06260iASV50..ALT201110-201307

sub71610-06261

sub73214-0K010

main71610-06261iASV50..ATRS201307-201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

main71610-06261iASV50..ALT201504

DECONTENT PACKAGE

main71610-06270iGSV50..GCC201202-201307

main71610-06272iGSV50..TOU201504

main71610-06272iGSV50..GCC201307-201504

VSC-WITH

main71610-06280iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201110-201307

sub71610-06281

sub73214-0K010

main71610-06281iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201307-201605

main71610-06290iGSV50..SPVS201202-201307

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW)

sub71610-06291

sub73214-0K010

main71610-06291iGSV50..PRD201504

THAILAND SPEC

main71610-06291iGSV50..PRD201307-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER

main71610-06291iGSV50..PRD201307-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW)

main71610-06291iGSV50..PRD201504

LIMITED PACKAGE

main71610-06291iGSV50..PRD201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER 1

main71610-06291iGSV50..SPVS201605

main71610-06300iASV50..GCC201110-201307

main71610-06302iASV50..GCC201307-201504

main71610-06561iGSV50..GD,SE201504

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-06400iASV50..GCC201110-201504

main71630-06410iGSV50..GCC201202-201504

main71630-06421iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201110-201605

main71630-06431iGSV50..PRD201202-201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(FLOW)

main71630-06431iGSV50..PRD201504

THAILAND SPEC

main71630-06431iGSV50..PRD201504

LIMITED PACKAGE

main71630-06431iGSV50..PRD201504

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER 1

main71630-06431iGSV50..SPVS201605

main71630-06670iGSV50..GD,SE201504

main71630-06680iASV50..ALT201504

DECONTENT PACKAGE

main71630-06680iASV50..ATRS201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

main71630-06680iASV50..ALT201110-201504

71759BHOOK, FRONT SEATBACK

main71759-47010iASV50,AVV50,GSV50201110-201304

main71759-47011iASV50,AVV50,GSV50201305-201504

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-06200-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main71811-06200-B0iASV50..GL,GLX201110-201710

GRAY,TRIM1#

main71811-06200-C0iASV50..6FC..GL201110-201710

BLACK,TRIM2#

main71811-06210-C0iASV50..ALT201110-201710

BLACK,TRIM2#

main71811-06210-C0iASV50..ALT201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71811-06210-C0iASV50..ALT201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71811-06220-A0iASV50,AVV50,GSV50..ATRS,HBD,PRD201110-201710

IVORY,TRIM0#

main71811-06220-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main71811-06220-C0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

main71811-06380-A0iGSV50..GD,SE201504-201710

IVORY,TRIM0#

main71811-06380-B0iGSV50..GD201504-201710

GRAY,TRIM1#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main62217-12050iASV50,AVV50,GSV50..ARL201110-201504

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-47010iASV50,AVV50,GSV50201110-201504

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-06130-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main71861-06130-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main71861-06130-C0iASV50..6FC..GL201110-201710

BLACK,TRIM2#

main71861-06300-C0iASV50..ALT201110-201710

BLACK,TRIM2#

main71861-06300-C0iASV50..ALT201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71861-06300-C0iASV50..ALT201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71861-06310-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main71861-06310-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main71861-06310-C0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06370iASV50..ATRS201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

main71873-06370iASV50..ALT201110-201504

main71873-06370iASV50..ALT201504

DECONTENT PACKAGE

main71873-06390iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201504

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06360iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201504

main71874-06370iASV50..ALT201110-201504

main71874-06370iASV50..ALT201504

DECONTENT PACKAGE

main71874-06370iASV50..ALT201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-06300-A0iASV50..GCC;GSV50..TOU201110-201710

IVORY,TRIM0#

main71875-06300-B0iASV50..GL,GLX201110-201710

GRAY,TRIM1#

main71875-06300-C0iASV50..6FC..(ALT,GL)201110-201710

BLACK,TRIM2#

main71875-06300-C0iASV50..ALT,GL201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71875-06300-C0iASV50..ALT,GL201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71875-06360-A0iGSV50..GD,PRD,SE201110-201710

IVORY,TRIM0#

main71875-06360-B0iGSV50..GD201202-201710

GRAY,TRIM1#

main71875-06360-C0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-06300-A0iASV50..GCC;GSV50..TOU201110-201710

IVORY,TRIM0#

main71876-06300-B0iASV50..GL,GLX201110-201710

GRAY,TRIM1#

main71876-06300-C0iASV50..ATRS201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71876-06300-C0iASV50..6FC..(ALT,GL)201110-201710

BLACK,TRIM2#

main71876-06300-C0iAVV50201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71876-06310-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main71876-06310-B0iGSV50..ATX201202-201710

GRAY,TRIM1#

main71876-06310-C0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,PRD,SPVS201110-201710

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-06630-B0iGSV50..ATX201202-201307

GRAY,TRIM1#

main71910-06630-C0iGSV50..ATX201202-201504

BLACK,TRIM2#

main71910-06640-A1iAVV50201201-201307

IVORY,TRIM0#

main71910-06640-C1iAVV50201201-201405

BLACK,TRIM2#

main71910-06650-A2iGSV50..GD201202-201504

SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

main71910-06650-A2iGSV50..PRD201202-201504

IVORY,TRIM0#

main71910-06650-C2iGSV50..PRD201202-201504

BLACK,TRIM2#

main71910-06650-C2iGSV50..ATX201202-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main71910-06670-A0iGSV50..SE201202-201604

IVORY,TRIM0#

sub71910-06671

main71910-06670-C0iGSV50..SPVS201202-201605

BLACK,TRIM2#

sub71910-06671

main71910-06671-A0iGSV50..SE201605-201710

IVORY,TRIM0#

main71910-06840-A1iGSV50..GD,TOU201202-201405

IVORY,TRIM0#

main71910-06840-B1iGSV50..GD,TOU201202-201405

GRAY,TRIM1#

main71910-06B40-A0iASV50..GL201110-201504

IVORY,TRIM0#

main71910-06B40-B0iASV50..GL201110-201504

GRAY,TRIM1#

main71910-06B40-C0iASV50..6FC..(ALT,GL)201110-201504

BLACK,TRIM2#

main71910-06B50-A0iASV50..GLX201110-201405

IVORY,TRIM0#

main71910-06B50-B0iASV50..GLX201110-201405

GRAY,TRIM1#

main71910-06B50-C0iASV50..ATRS201110-201405

BLACK,TRIM2#

main71910-06B70-A0iASV50..SE201110-201605

IVORY,TRIM0#

main71910-06B80-C1iASV50..ATRSX201110-201504

BLACK,TRIM2#

main71910-06D40-C0iAVV50201405-201504

BLACK,TRIM2#

main71910-06D50-A0iGSV50..GD,TOU201405-201504

IVORY,TRIM0#

main71910-06D50-B0iGSV50..GD201405-201504

GRAY,TRIM1#

main71910-06D60-A0iASV50..GLX201405-201504

IVORY,TRIM0#

main71910-06D60-B0iASV50..GLX201405-201504

GRAY,TRIM1#

main71910-06D60-C0iASV50..ATRS201405-201504

BLACK,TRIM2#

main71910-06E10-A0iGSV50..GD201504-201710

IVORY,TRIM0#

main71910-06E10-A0iGSV50..PRD201504-201710

SEAT COVER MATERIAL-LEATHER 1,IVORY,TRIM0#

main71910-06E10-C0iGSV50..PRD201504-201710

LIMITED PACKAGE,BLACK,TRIM2#

main71910-06E10-C0iAVV50201504-201710

BLACK,TRIM2#

main71910-06E20-C0iGSV50..SPVS201605-201710

BLACK,TRIM2#

main71910-06E40-C0iASV50..ATRSX201504-201710

BLACK,TRIM2#

main71910-06F80-A0iASV50..GL201504-201710

IVORY,TRIM0#

main71910-06F80-B0iASV50..GL201504-201710

GRAY,TRIM1#

main71910-06F80-C0iASV50..ATRS201504-201710

BLACK,TRIM2#

main71910-06F80-C0iASV50..ATRS201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main71910-06F90-C0iAVV50201504-201710

BLACK,TRIM2#

main71910-06F90-C0iAVV50201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main71910-06G00-A0iASV50..GLX201504-201710

IVORY,TRIM0#

main71910-06G00-B0iASV50..GLX201504-201710

GRAY,TRIM1#

main71910-06G00-C0iASV50..ATRS201504-201710

BLACK,TRIM2#

main71910-06G10-C0iAVV50201504-201710

BLACK,TRIM2#

main71910-06G20-A0iGSV50..GD,TOU201504-201710

IVORY,TRIM0#

main71910-06G20-B0iGSV50..GD201504-201710

GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02370-A1iASV50,GSV50..GD,GL,GLX,PRD,SE,TOU201110-201710

W(LOCK)&W(BUTTON),IVORY,TRIM0#

sub71930-02370

main71930-02370-B0iGSV50..ATX201110-201710

W(LOCK)&W(BUTTON),GRAY,TRIM1#

sub71930-02370

main71930-02370-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-02370

main71931-02130-A1iASV50,GSV50..GD,GL,GLX,PRD,SE,TOU201110-201710

W/O(LOCK),IVORY,TRIM0#

main71931-02130-B0iASV50,GSV50..GD,GL,GLX201110-201710

W/O(LOCK),GRAY,TRIM1#

main71931-02130-C0iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,PRD,SPVS201110-201710

W/O(LOCK),BLACK,TRIM2#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-06140-A0iASV50,AVV50..ATRS,HBD201110-201710

IVORY,TRIM0#

main72137-06140-A0iASV50,GSV50..ALT,GD,GL,GLX,PRD,SE,TOU201110-201710

IVORY,TRIM00

main72137-06140-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main72137-06140-B0iGSV50..ATX201202-201504

GRAY,TRIM10

main72137-06140-C0iGSV50..PRD201504-201710

BLACK,TRIM0#,2#

main72137-06140-C0iGSV50..PRD201110-201710

BLACK,TRIM00,2#

main72137-06140-C0iGSV50..PRD201110-201710

BLACK,TRIM2#

main72137-06140-C0iGSV50..ATX201202-201504

BLACK,TRIM10,2#

72157CCOVER, SEAT TRACK BRACKET, INNER RH

main72157-06120-A0iASV50,GSV50..ALT,GD,GL,GLX,PRD,SE,TOU201110-201710

IVORY,TRIM0#

main72157-06120-A0iASV50,GSV50..ALT,GD,GL,GLX,PRD,SE,TOU201110-201710

IVORY,TRIM00

main72157-06120-B0iGSV50..ATX201202-201504

GRAY,TRIM10

main72157-06120-B0iASV50,GSV50..GD,GL,GLX201110-201710

GRAY,TRIM1#

main72157-06120-C0iASV50,AVV50..ATRS,HBD201504-201710

BLACK,TRIM0#,2#

main72157-06120-C0iASV50,AVV50..ATRS,HBD201110-201710

BLACK,TRIM00,2#

main72157-06120-C0iASV50,AVV50..ATRS,HBD201110-201710

BLACK,TRIM2#

main72157-06120-C0iGSV50..ATX201202-201504

BLACK,TRIM10,2#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06060iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,GD,GLX,HBD,SE,TOU201110-201504

sub72211-06110

main72211-06060iGSV50..ATX,TOU;ASV50,AVV50..ATRS,ATRSX,GLX,HBD,SE201504

DECONTENT PACKAGE

sub72211-06110

main72211-06060iGSV50..ATX,TOU;ASV50,AVV50..ATRS,ATRSX,GLX,HBD,SE201504

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C

sub72211-06110

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-06070-C0iASV50..ALT201110-201710

BLACK,TRIM2#

main72494-06070-C0iASV50..ALT201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main72494-06070-C0iASV50..ALT201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-06090-A0iASV50,GSV50..GCC201110-201710

IVORY,TRIM0#

main72525-06090-B0iASV50..GL,GLX201110-201710

GRAY,TRIM1#

main72525-06090-C0iASV50..ALT,GL201504-201710

DECONTENT PACKAGE&SEAT COVER MATERIAL-FABRIC C,BLACK,TRIM2#

main72525-06090-C0iAVV50201110-201710

BLACK,TRIM2#

main72525-06090-C0iAVV50201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-06090iGSV50;ASV50,AVV50..ARL201110-201504

VSC-WITH

sub73910-33030

main73910-06090iGSV50;ASV50,AVV50..ARL201504

sub73910-33030

9011910601

main90119-10601

90119T0001

main90119-T0001

90167T0019

main90167-T0019

9016850078

main90168-50078

9417060600

main94170-60600

9418560600

main94185-60600

36 parts on this diagram · 10 diagrams in section
