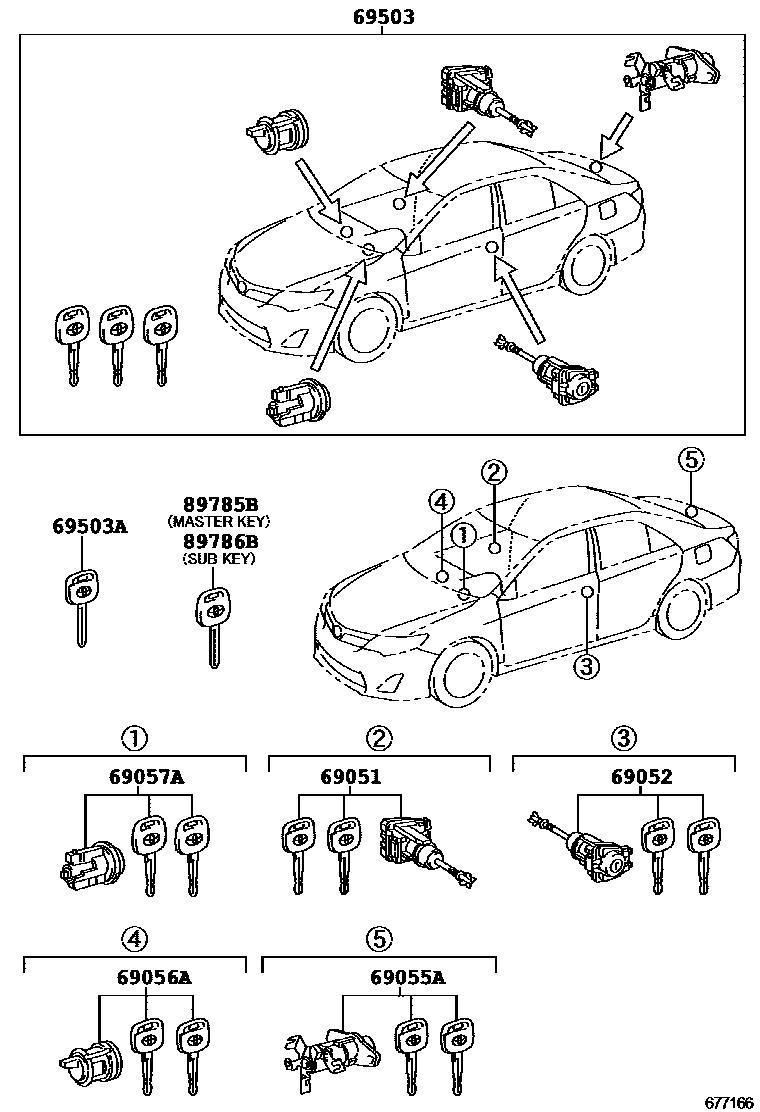

LOCK CYLINDER SET

0001 1W/O(WIRELESS DOOR LOCK) 0002 1W(WIRELESS DOOR LOCK) 0003 1W(WIRELESS DOOR LOCK) 0004 1W(STARTING SYSTEM-PUSH BUTTON0005 1W/O(SMART ENTRY) 0006 1W/O(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-06051iASV50,GSV50..6FC..(ALT,ATX,GL)201110-201504

main69051-06081iASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS201110-201504

main69051-06120iASV50,AVV50..ATRS,ATRSX,HBD201504

main69051-06130iASV50..ATRS201504

DECONTENT PACKAGE

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-06061iASV50..6F..(GLX,SE)201110-201504

WIRELESS DOOR LOCK-WITH

main69052-06111iGSV50..GCC201202-201504

main69052-06121iASV50..6F..GL201110-201504

main69052-06240iASV50..SE201504-201605

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-06150iASV50..6F..GL201110-201504

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06040iASV50..6F201110-201504

sub69056-0E100

main69056-06100iGSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201411

main69056-06140iASV50..ALT,GL,GLX201504

DECONTENT PACKAGE

main69056-06140iASV50..SE201504-201605

main69056-06160iGSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201412-201504

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main69056-06160iASV50..GLX201504

WIRELESS DOOR LOCK-W(SMART ENTRY)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02361iASV50..6F..GL201110-201504

main69057-02580iASV50..6FC..GL201110-201504

WIRELESS DOOR LOCK-WITH

main69057-06190iASV50..ATRS201504

DECONTENT PACKAGE

main69057-06190iASV50..SE201504-201605

69503CYLINDER SET, LOCK

main69005-06471iASV50..6FC..GL201110-201504

WIRELESS DOOR LOCK-WITH

main69005-06521iGSV50..GCC201202-201504

main69005-06531iASV50,GSV50..ALT,ATX201110-201307

main69005-06532iASV50,GSV50..ALT,ATX201307-201504

STARTING SYSTEM-ROTARY(MECHANICAL)

main69005-06541iASV50,AVV50,GSV50..ATRS,ATRSX,HBD,PRD,SPVS201110-201504

main69005-06631iASV50..6F..GL201110-201504

main69005-06740iASV50,AVV50..ATRS,ATRSX,HBD201504

main89704-06580iASV50..ALT201504

DECONTENT PACKAGE

main89704-06590iASV50..SE201504-201605

WIRELESS DOOR LOCK-W(SMART ENTRY)

main89704-06590iASV50..GL,GLX201504

IRAN/YEMEN SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)

main89704-06590iASV50..GL,GLX201504-201605

QATAR SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)

main89704-06590iASV50..GL,GLX201504-201605

UAE SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY)

69503AKEY, BLANK

main69515-06030iASV50..GLX201412-201504

MASTER KEY,W(*68)

main69515-06030iGSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201412-201504

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main69515-06030iGSV50;ASV50,AVV50..ATRS,ATRSX,HBD201504

MASTER KEY,W(*68),WIRELESS DOOR LOCK-W(SMART ENTRY)

main69515-33100iGSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201411

MASTER KEY,W(*68)

main90999-00251iGSV50..ATX;ASV50..6FC..(ALT,GL,GLX,SE)201110-201504

MASTER KEY,W(*68)

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-02350iASV50..ATRS201504

BLANK KEY

main89785-02350iASV50..ALT201504

DECONTENT PACKAGE,BLANK KEY

main89785-02460iASV50..GLX201504-201605

WIRELESS DOOR LOCK-W(SMART ENTRY),CUT KEY

main89785-02460iASV50..SE201504-201605

CUT KEY

main89785-02460iASV50..ALT,GL,GLX201504

DECONTENT PACKAGE,CUT KEY

main89785-08040iASV50..6FC..GL201110-201504

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-06150iASV50..SE201504-201605

CUT KEY,WIRELESS DOOR LOCK-W(SMART ENTRY)

main89786-06150iASV50..ALT,GL,GLX201504-201605

CUT KEY

main89786-06150iASV50..ATRS201504

CUT KEY,DECONTENT PACKAGE

main89786-08040iASV50..6FC..(GLX,SE)201110-201504

BLANK KEY,STARTING SYSTEM-PUSH BUTTON

main89786-08040iASV50..6F201110-201504

BLANK KEY

main89786-08040iASV50..6FC..GCC201110-201504

BLANK KEY,WIRELESS DOOR LOCK-WITH(SMART ENTRY)

9 parts on this diagram · 6 diagrams in section
