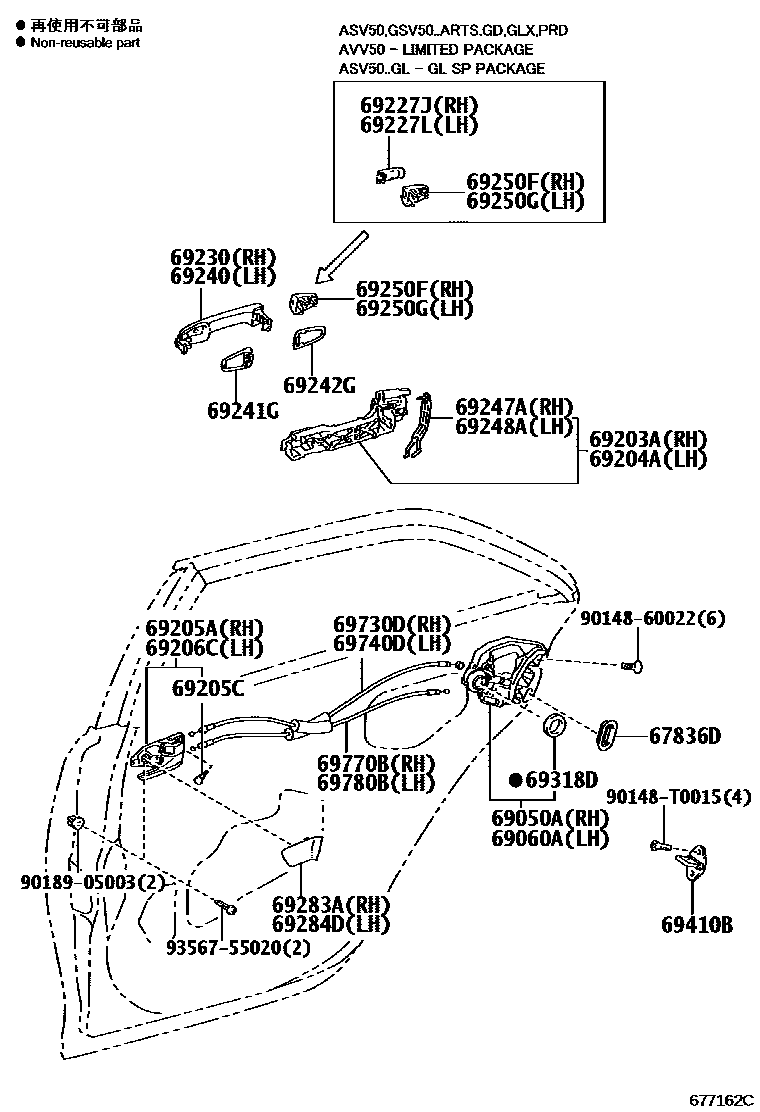

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
sub69050-33120
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
sub69060-33120
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
DECONTENT PACKAGE,BLACK,TRIM2#
BLACK,TRIM0#,1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
*CR,GL SP PACKAGE
*CR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
*CR,GL SP PACKAGE
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PAINT REQ.,GL SP PACKAGE
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
PAINT REQ.,GL SP PACKAGE
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69247APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, RH
69248APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
sub69730-33090
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
sub69730-33090
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
sub69770-33050
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
sub69770-33050
9014860022
main90148-60022
90148T0015
main90148-T0015
9018905003
main90189-05003
9356755020
main93567-55020
30 parts on this diagram · 1 diagram in section
